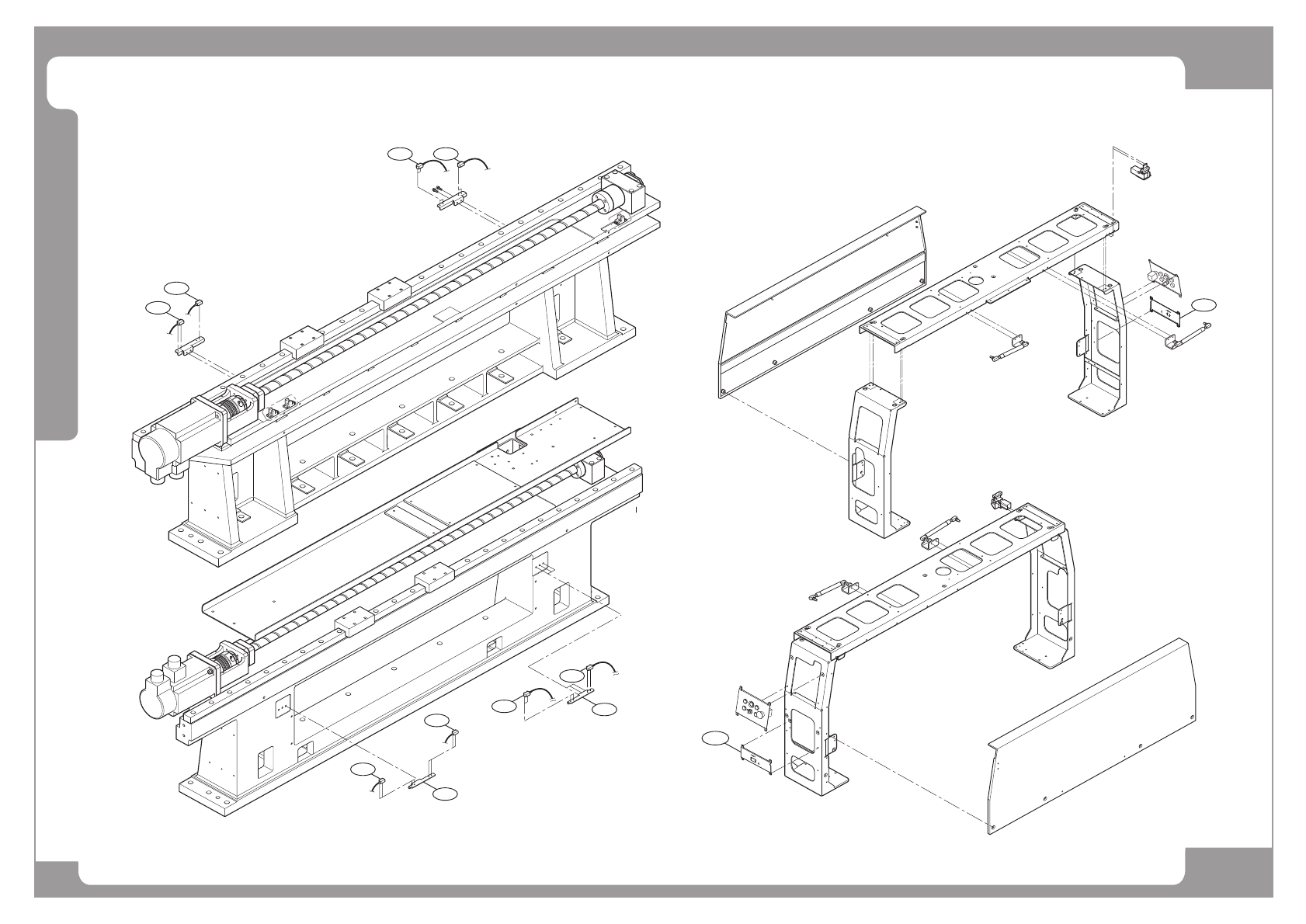

Page SAMSUNG TECHWIN 93 SM421 C able Ass’y (1/2) 15 17 19 21 23 25 27 29 31 33 35 37 14 16 18 20 22 24 26 28 30 32 34 36 13 12 11 10 9 8 7 6 5 4 3 2 1 1
Page

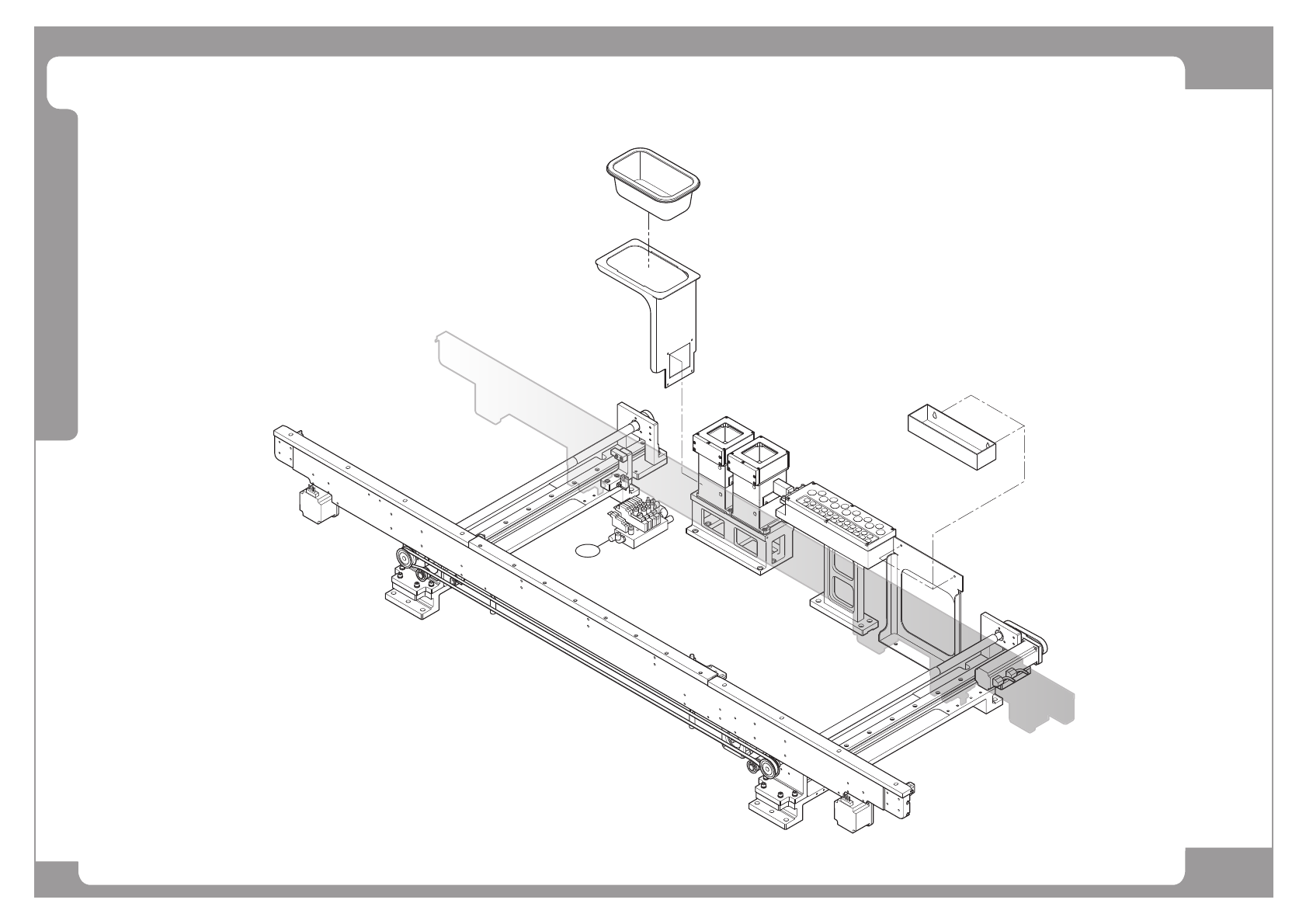

SAMSUNG TECHWIN
92
SM421
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
26 J70521381B DOOR_SWITCH_BRACKET-2 2
27 J7070218C SENSOR BRACKET 2[J7070218C] 2
28 J7070341A WASHER-M4[J7070341A] 4
29 J90831051B FRONT_REAR_DOOR_SW_CABLE_ASSY 1
30 J31531003A SERVO MOTOR DRIVER 6 SM421F Q'TY : 4EA
31 J90541010A DRIVER_BOX_ASSY J90541010A 1
32 J70541034B DRIVER_BOX_BASE 1
33 J70541035B DRIVER_BOX_COVER 1
34 J70541036A DRIVER_BOX_PLATE J70541036A 1
35 J70541037A SEDES_SLAVE_BOARD_BK J70541037A 1
36 J6103013A HEX SUPPORT[M3*50 (BOLT-NUT)] 4
37 J6103023A HEX SUPPORT [M3*20 (BOLT-NUT)] 4
38 J90831380C 1_TRAY_FEEDER_CABLE_ASSY 1 [96] at 124 page
39 J90831381C 2_TRAY_FEEDER_CABLE_ASSY 1 [97] at 124 page
40 J90831133B INLINE_IN-OUT_CABLE_ASSY 1 [98] at 104, 107 page
41 J90831344B MCCB_NF1-CABLE-ASSY 1 [99] at 127 page
42 J90831300E FLAT-CABLE-ASSY 1 [164] at 110 page
43 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1 [147] at 124 page
44 J90831445A Y1_REGEN_RESISTOR_CABLE_ASSY SM41-MD036 1 [100] at 113 page
45 J90831446A Y2_REGEN_RESISTOR_CABLE_ASSY SM41-MD037 1 [101] at 113 page
46 J90831447A X_REGEN_RESISTOR_CABLE_ASSY SM41-MD038 1 [37] at 114, 118 page
47 J90831119E Z1-Z6_DRV_COMMAND_CABLE_ASSY 1 J90831119C [75] at 115, 116, 118 page
J90611785A Z_DRV_COMMAND_CABLE_ASSY SM421F-VM009 1 SM421F
48 J90831228B Z_DRIVER_PW_JUMPER_CABLE_ASSY 1 [102] at 129 page
J90611786A Z_DRIVER_PW_JUMPER_CABLE_ASSY SM421F 1 SM421F
