Page SAMSUNG TECHWIN 3 SM421 F ix Camera Ass'y 1 1 2 3 4 10 6 7 8 9 9 Show 'Stage Camera Ass'y' In Section 5
Page
SAMSUNG TECHWIN
2
SM421
Mechanical Part
Page
SAMSUNG TECHWIN
3
SM421

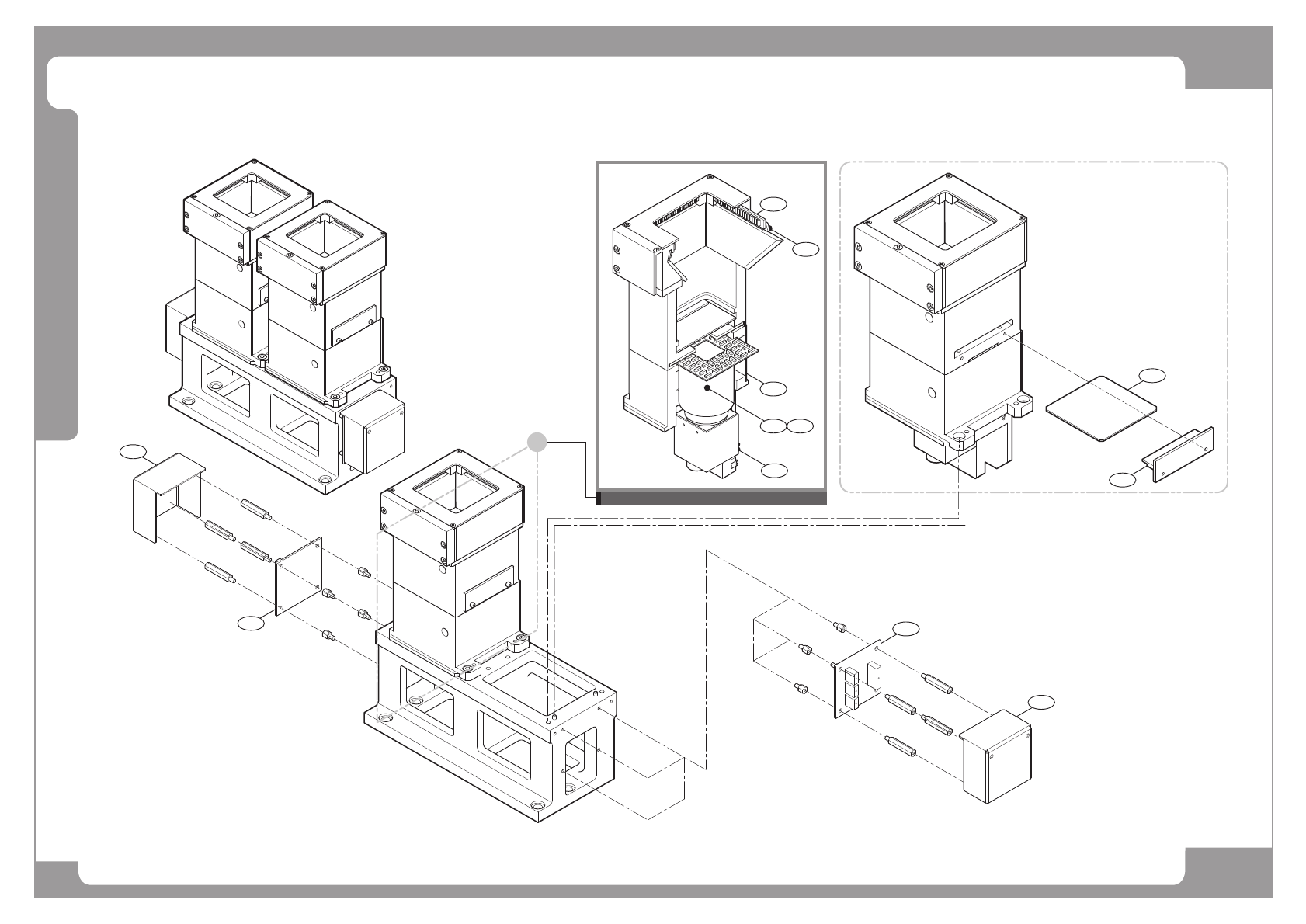

Fix Camera Ass'y
1
1
2
3
4
10
6
7
8
9
9
Show 'Stage Camera Ass'y' In Section
5
Page
SAMSUNG TECHWIN
4
SM421
Fix Camera Ass'y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90591015A STAGE_VISION_ASSY_MEGA_F35 1
1 J70590095B CAMERA BOARD COVER 1
2 J67510015B CCD CAMERA 1
3 J6754004B COVER GLASS 1
4 J7159160C GLASS PRESS 2
5 J9059117A F35-50-ASSY 1
6 J90600073C LED98-9 BOARD ASSY 1 J9060073B
7 J90600074B STAGE OUTER ILL BOARD ASS'Y 1 J9060074A
8 J90600075B STAGE SIDE ILL BOARD ASS'Y 1 J9060075A
9 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1
A-2 J90591013A STAGE_VISION_ASSY_MEGA_F45 1
10 J9059118A F45-60-ASSY 1
