Page SAMSUNG TECHWIN 5 SM421 F eeder Base Ass'y - ST (1/2) 8 5 9 4 7 6 8 3 3 12 12
Page
SAMSUNG TECHWIN
4
SM421
Fix Camera Ass'y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90591015A STAGE_VISION_ASSY_MEGA_F35 1
1 J70590095B CAMERA BOARD COVER 1
2 J67510015B CCD CAMERA 1
3 J6754004B COVER GLASS 1
4 J7159160C GLASS PRESS 2
5 J9059117A F35-50-ASSY 1
6 J90600073C LED98-9 BOARD ASSY 1 J9060073B
7 J90600074B STAGE OUTER ILL BOARD ASS'Y 1 J9060074A
8 J90600075B STAGE SIDE ILL BOARD ASS'Y 1 J9060075A
9 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1
A-2 J90591013A STAGE_VISION_ASSY_MEGA_F45 1
10 J9059118A F45-60-ASSY 1
Page
SAMSUNG TECHWIN
5
SM421

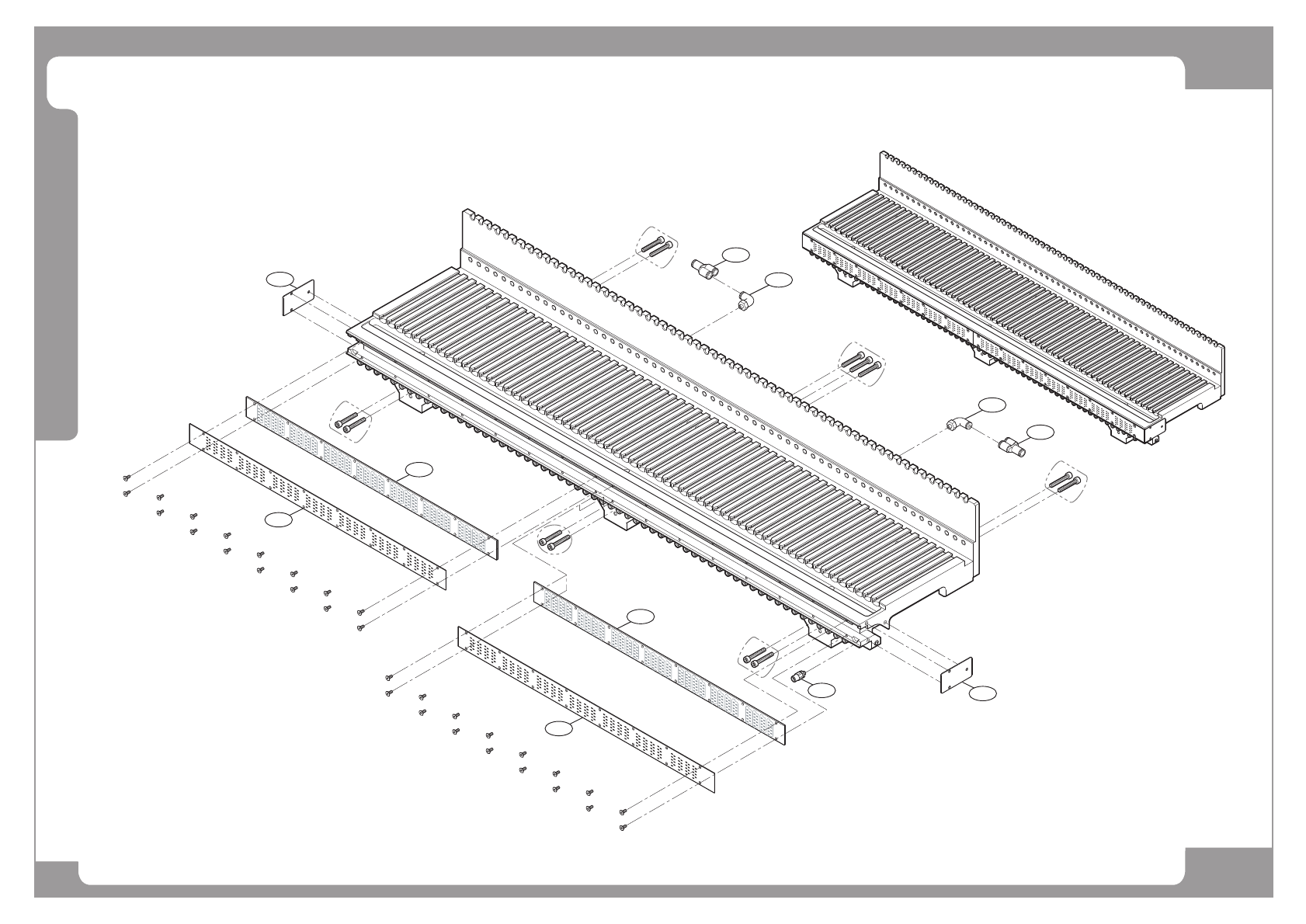

Feeder Base Ass'y - ST (1/2)
8
5
9
4
7
6
8
3
3
12
12
Page
SAMSUNG TECHWIN
6
SM421

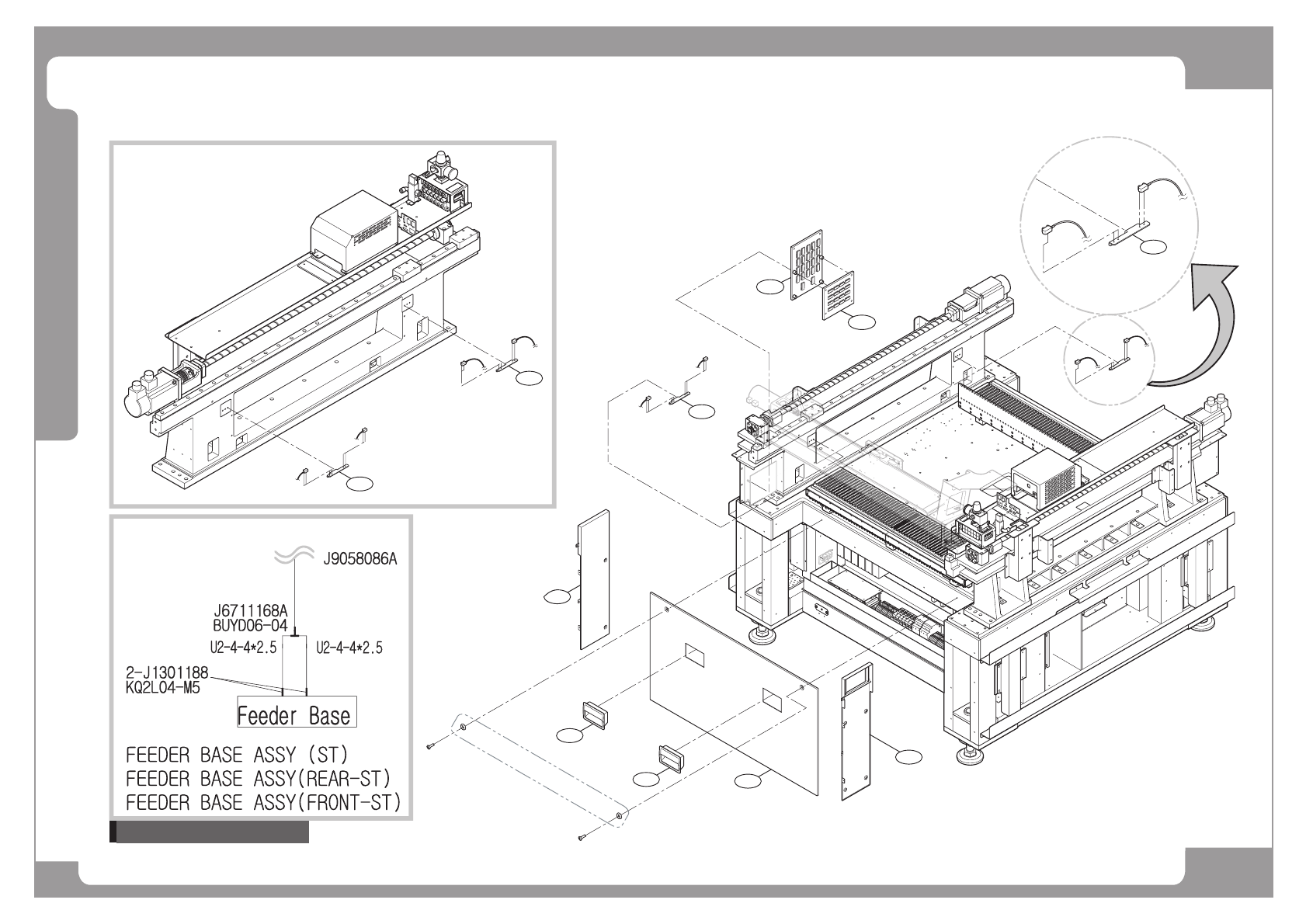

Feeder Base Ass'y - ST (2/2)
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
CAN CONVEYOR BOARD
ڮڨڏڍڌٻڨڜکڤڡڪڧڟٻڜڮڮڴڮڨڏڍڌٻڨڜکڤڡڪڧڟٻڜڮڮڴ
Reference to Air Ass'y
11
10
13
14
14
24
25
2
1
22
23
