Page
SAMSUNG TECHWIN
19
SM421

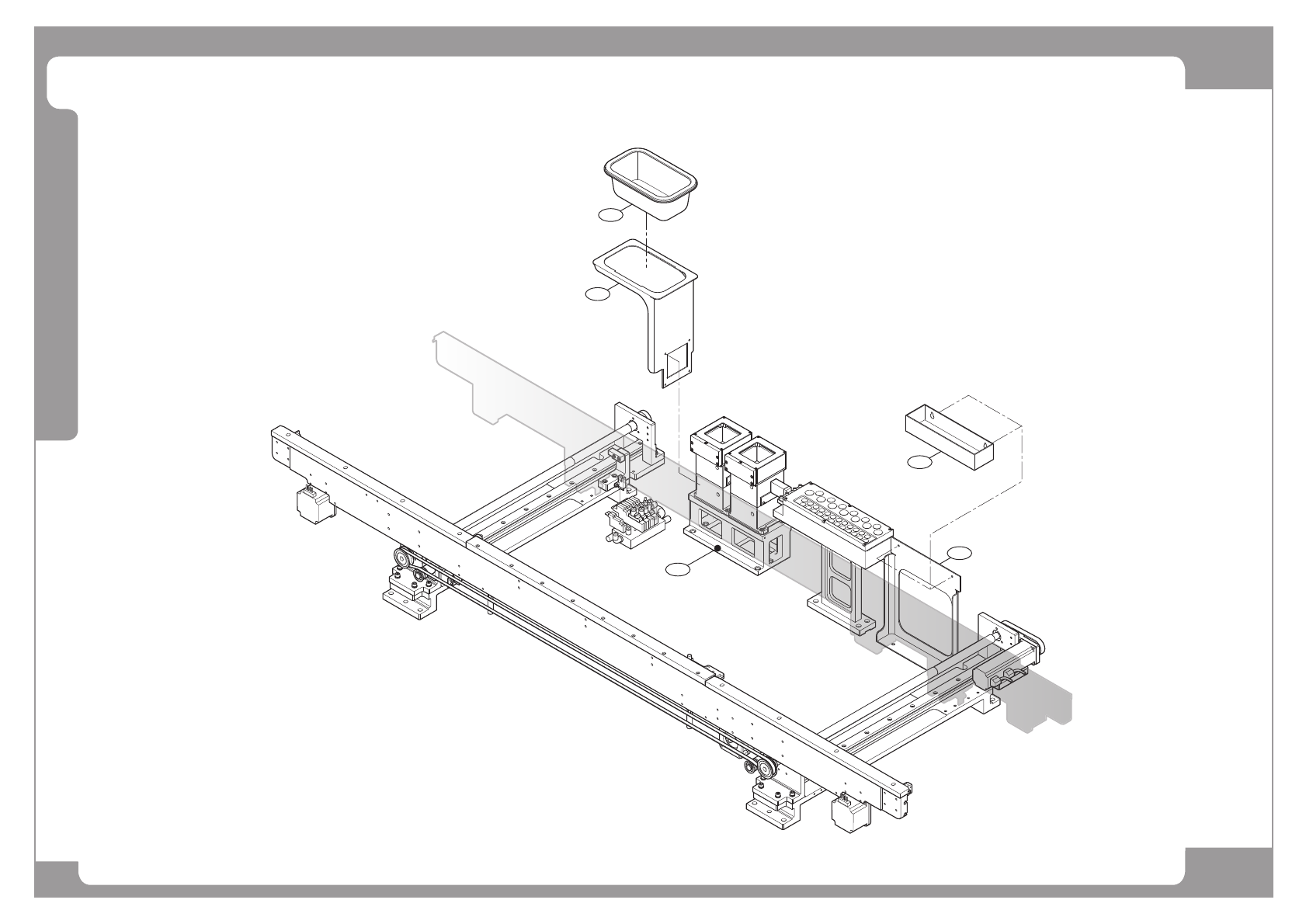

Conveyor Ass’y (5/5)
15
17
19
21
23
25
27
29
31
33
35
37
14
16
18
20
22
24
26
28
30
32
34
36
13
12
11
10
9
8
7
6
5
4
3
2
1
3
4
1
2
93
Page
SAMSUNG TECHWIN
20
SM421
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90531083A CONV_ASSY_LR J90531083A 1
1 J70531002A DUMP-BOX 1 J7153290A
2 J70531008A DUMP_BOX-BKT 1 J7053688B
3 J6409011A DUMP BOX[1/9 PAN] 1
4 J70530693C DUMP BOX BKT 2 J70530693C 1
5 J3108062A SERVO MOTOR[MSMA012P1A01] 1
6 J3211048A PHOTO SENSOR[E3S-LS3N] 5
7 J67011058A STOPPER CYLINDER 2 1 J6701018B
8 J31041014A STEP_MOTOR 2S56Q-01842SR2 1
9 J66021017A BELT_410_1 MAM-5P-1235-7W 4
10 J66021018A BELT_410_F MAM-5P-1517-7W 1
11 J66021019A BELT_410_R MAM-5P-1482-7W 1
12 J70531083A BELT_MOTOR_SUPPORT J70531083A 4
13 J70531084A BRACKET_BELT_MOTOR_B J70531084A 1
14 J70531085A BRACKET_BELT_MOTOR_M J70531085A 1
15 J70531106A BRACKET_BELT_MOTOR_S J70531106A 4
16 J70531086A BRACKET_RAIL J70531086A 2
17 J7153111A TEP MOTOR PULLEY [J7153111A] 6
18 J70531087A Q_SENSOR_BKT J70531087A 1
19 J70531088B WORK_SENSOR_BRACKET 2
20 J71531027A CONV_FRONT_FRAME J71531027A 1
21 J71531028A CONV_REAR_FRAME J71531028A 1
22 J70531089B STOPPER_CYLINDER_BRACKET 1
23 J70531100A BRACKET_SENSOR_IN J70531100A 2
24 J66011035A BALL_BUSH LMU5 8
25 J70531109A MANUAL_HANDLE J70531109A 1
26 J6711001A ELBOW FITTING 4
Page
SAMSUNG TECHWIN
21
SM421
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
27 J3212004A PHOTO SENSOR 1
28 J6601008A BALL BEARING 4
29 J6601109A BALL BEARING[608ZZ] 2
30 J6601126A BALL BEARING[F608ZZ] 2
31 J6602030A TIMING BELT [258-3M-9] 1
32 J6602074A TIMING BELT[025-XL-396-AJ] 1
33 J6607016A LM SLIDE 2
34 J6607083A LM GUIDE[SBG20-SL-1-575-N] 2
35 J6609012A PULLEY-WIDTH [20-XL-025] 2
36 J6609015B PULLEY-MOTOR [P32-3M-9] 1
37 J6701087A EDGE CYLINDER[CQ2B6-CJJC2948] 1
38 J6703007A THROTTLE VALVE(ELBOW) 1
39 J7053047A IDLER SPACER-S 18
40 J7053048A IDLER SPACER-M 3
41 J7053009A IDLER SHAFT-S2 [J7053009A] 18
42 J7053184A SQUARE NUT M4 55
43 J7053194A BEARING NUT [J7053194A] 2
44 J7053725A SUPPORT-WIDE ADJUST[J7053725A] 2
45 J7053726A SCREW STAND[J7053726A] 2
46 J7053216B DOG-SENSOR [J7053216B] 1
47 J70530749B DOG ADJUST J70530749B 1
48 J7053661B WIDTH TENSION SPACER[J7053661B] 2
49 J7053662A TENSION BEARING PIN[J7053662A] 2
50 J71530404B FIX STAND 2
51 J7053677A MOVE STAND[J7053677A] 2
52 J7053780A BRACKET-SERVO MOTOR[J7053780A] 1
53 J70531050A STOPPER_TOP_PLATE J70531050A 1
