Page SAMSUNG TECHWIN 27 SM421 B ackup Table Ass’y 9 27 24 1 26 24 22 19 18 19 22 19 22 19 22 7 6 25 12 11 21 14 13 14 5 20 3 16 17 13 14 15 6 4 10 8 3 2 23 8 8 23 2 28 29
Page
SAMSUNG TECHWIN
26
SM421
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
9 J66021017A BELT_410_1 MAM-5P-1235-7W 4
53 J70531050A STOPPER_TOP_PLATE J70531050A 1
54 J70531029B STOPPER_POST 1
80 J90831401C CONVEYOR_PCB_SENSOR_ASSY 1 [16] at 111 page
92 J7053731A CONVEYOR CHIP COVER-R[J7053731A] 1
97 J9053333A BACK UP PIN[J9053333A] 2 Only Indication
A-11 J90531093A CONV_ASSY_LR_LONG_W460 J90531093A 1
3 J6409011A DUMP BOX[1/9 PAN] 1
4 J70530693C DUMP BOX BKT 2 J70530693C 1
92 J7053731A CONVEYOR CHIP COVER-R[J7053731A] 1
94 J6701080A AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1 Only Indication
96 J90831402C CONV_PCB_SENSOR_CABLE_ASSY_LONG 1
97 J9053333A BACK UP PIN[J9053333A] 2 Only Indication
A-12 J90531094A CONV_ASSY_RL_LONG_W460 J90531094A 1
3 J6409011A DUMP BOX[1/9 PAN] 1
4 J70530693C DUMP BOX BKT 2 J70530693C 1
92 J7053731A CONVEYOR CHIP COVER-R[J7053731A] 1
94 J6701080A AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1 Only Indication
96 J90831402C CONV_PCB_SENSOR_CABLE_ASSY_LONG 1
97 J9053333A BACK UP PIN[J9053333A] 2 Only Indication
Page
SAMSUNG TECHWIN
27
SM421

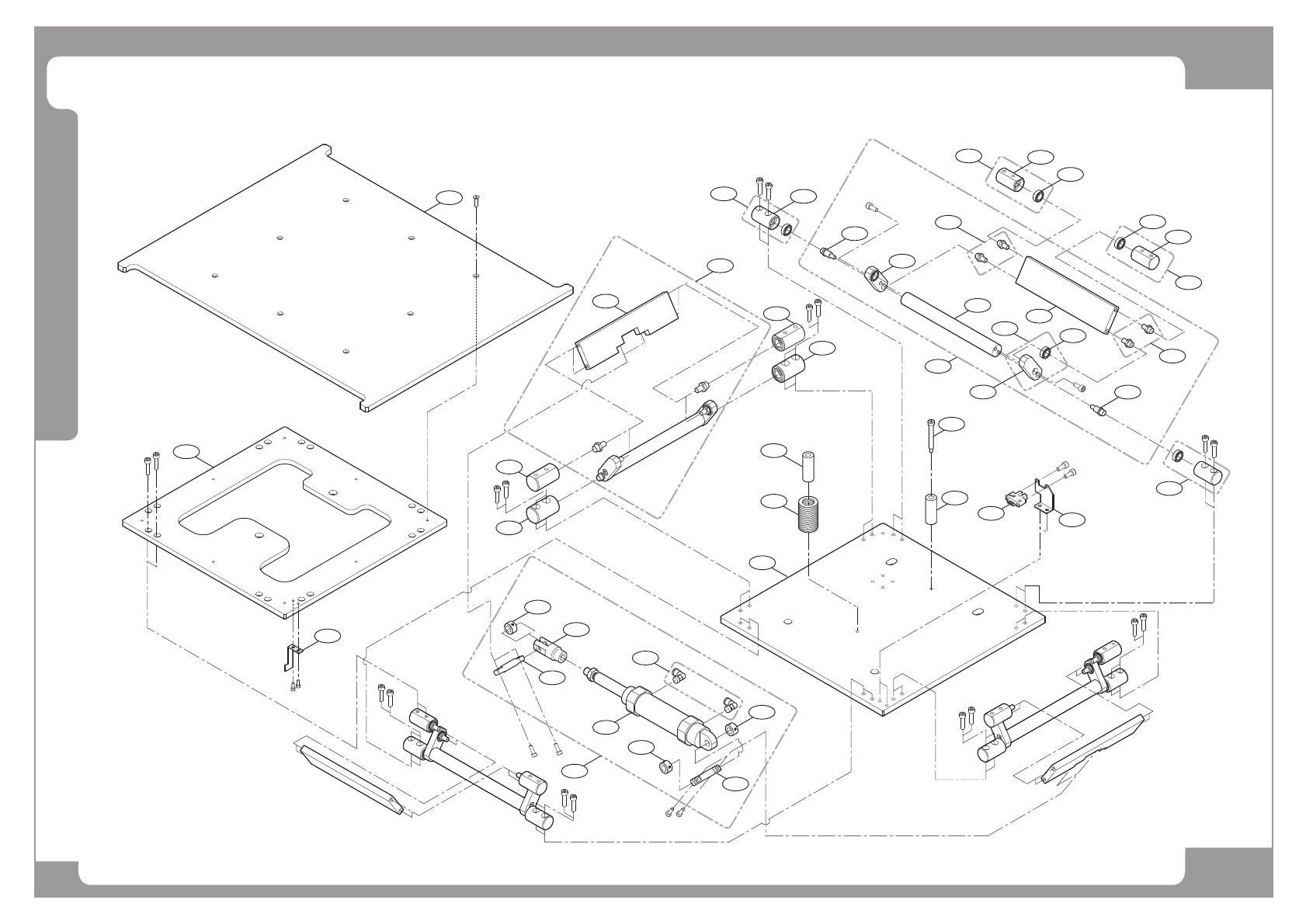

Backup Table Ass’y
9
27
24
1
26
24
22
19
18
19
22
19
22
19
22
7
6
25
12
11
21
14
13
14
5
20
3
16
17
13
14
15
6
4
10
8
3
2
23
8
8
23
2
28
29
Page
SAMSUNG TECHWIN
28
SM421
Backup Table Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J9053342A BACK UP TABLE ASSY[J9053342A] 1
1 J90531003A DRIVING_LINK_ASSY 2
2 J7053792A UPPER LINK PIN[J7053792A] 4
3 J7053793A LOWER LINK PIN[J7053793A] 2
4 J7053796A LOWER LINK SHAFT[J7053796A] 1
5 J71530419B UPPER DRIVING LINK[J7153419A] 1
6 J90531008A LINK_END_ASSY 2
7 J70530797B LOWER LINK END 1 J7053797A
8 J6601005A BALL BEARING 1
9 J90531004A FREE_LINK_ASSY 2
10 J71530418B UPPER FREE LINK 1 J7153418A
11 J70530799C UPPER PLATE 1
12 J90531005A BUT_CYLINDER_ASSY 1
13 J70530794B CYLINDER JOINT PIN[J7053794A] 2
14 J7053795A RING FIXER[J7053795A] 3
15 J6619062A CYLINDER JOINT[Y-032B] 1
16 J67010088B CYLINDER CM2C32-50-XC3BB 1
17 J6711028A ELBOW FITTING [KQ2L04-01] 2
18 J70530800C LOWER PLATE 1
19 J90531006A LOWER_BEARING_ASSY 8
20 J7053790A LOWER BEARING HOLDER[J7053790A] 1
21 J70530801D BACK UP PLATE 1 J70530801C
22 J90531007A UPPER_BEARING_ASSY 8
23 J7053791A UPPER BEARING HOLDER[J7053791A] 1
24 J6308003A URETHAN CUSHION[AXNSK15-40] 2
25 J7053803A UP SENSOR DOG[J7053803A] 1
26 J6107047A SPRING[SWU26-70] 1
