Page SAMSUNG TECHWIN 30 SM421 B ase Frame Ass’y LC1D096BD LC1D096BD LC1D096BD LC1D096BD Base Frame Ass'y 1 2 3 4 5 6 9 9 9 9 10 10 10 10 7 8 11
Page
SAMSUNG TECHWIN
29
SM421
Backup Table Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
27 J6015064000 SHOULDER SCREW[MSB6-40] 2
28 J3212002A PHOTO SENSOR 1
29 J7053802A UP SENSOR BRACKET[J7053802A] 1 Only Indication
A-2 J9053343A BACK UP TABLE ASSY(LARGE)[J9053343A] 1
A-3 J90531035A BACK_UP_TABLE_ASSY-EXL J90531035A 1
Page
SAMSUNG TECHWIN
30
SM421

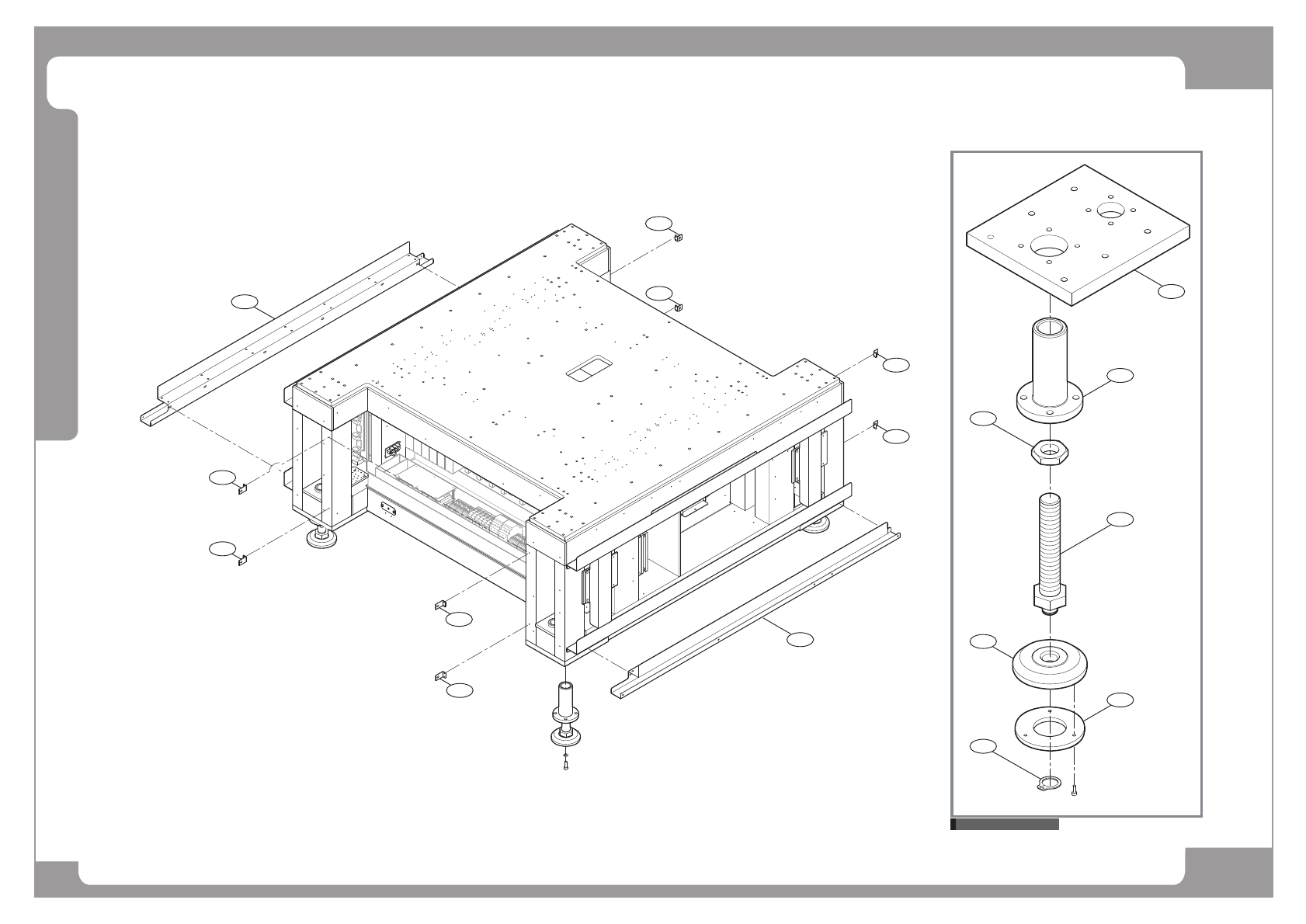

Base Frame Ass’y
LC1D096BDLC1D096BD
LC1D096BDLC1D096BD
Base Frame Ass'y
1
2
3
4
5
6
9
9
9
9
10
10
10
10
7
8
11
Page
SAMSUNG TECHWIN
31
SM421
Base Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J91831004A SM421_BASE_FRAME_ASSY_H900 1
1 J2100018 NUT FOOT [0131-611026] 4
2 J7351001A CUSHION FOOT 4
3 J7051008C BASE-FOOT[J7051008C] 4
4 J70511014A BOLT_FOOT J70511014A 4
5 J7051010D HOUSING-FOOT[J7051010D] 4
6 J6079000236S C-RING(SHAFT) 4
7 J70521386A LOWER_CABLE_DUCT-R-2 1
8 J70521387A LOWER_CABLE_DUCT-L-2 1
9 J70521388A CATCH_BRACKET_F-2 4
10 J70521389A CATCH_BRACKET_R-2 4
A-2 J91831005A SM421_BASE_FRAME_ASSY_H950 1
11 J70510108B SPACER FOOT 4
