Page SAMSUNG TECHWIN 33 SM421 F ly Camera Ass’y - SM421F FL Y CAM ONE KIT ASS'Y (MEGA-F16,F25) CAMERA COVER_BOARD ASSY -MEGA 6 13 11 1 14 5 3 2 15 16 4 7 8 10 9 12

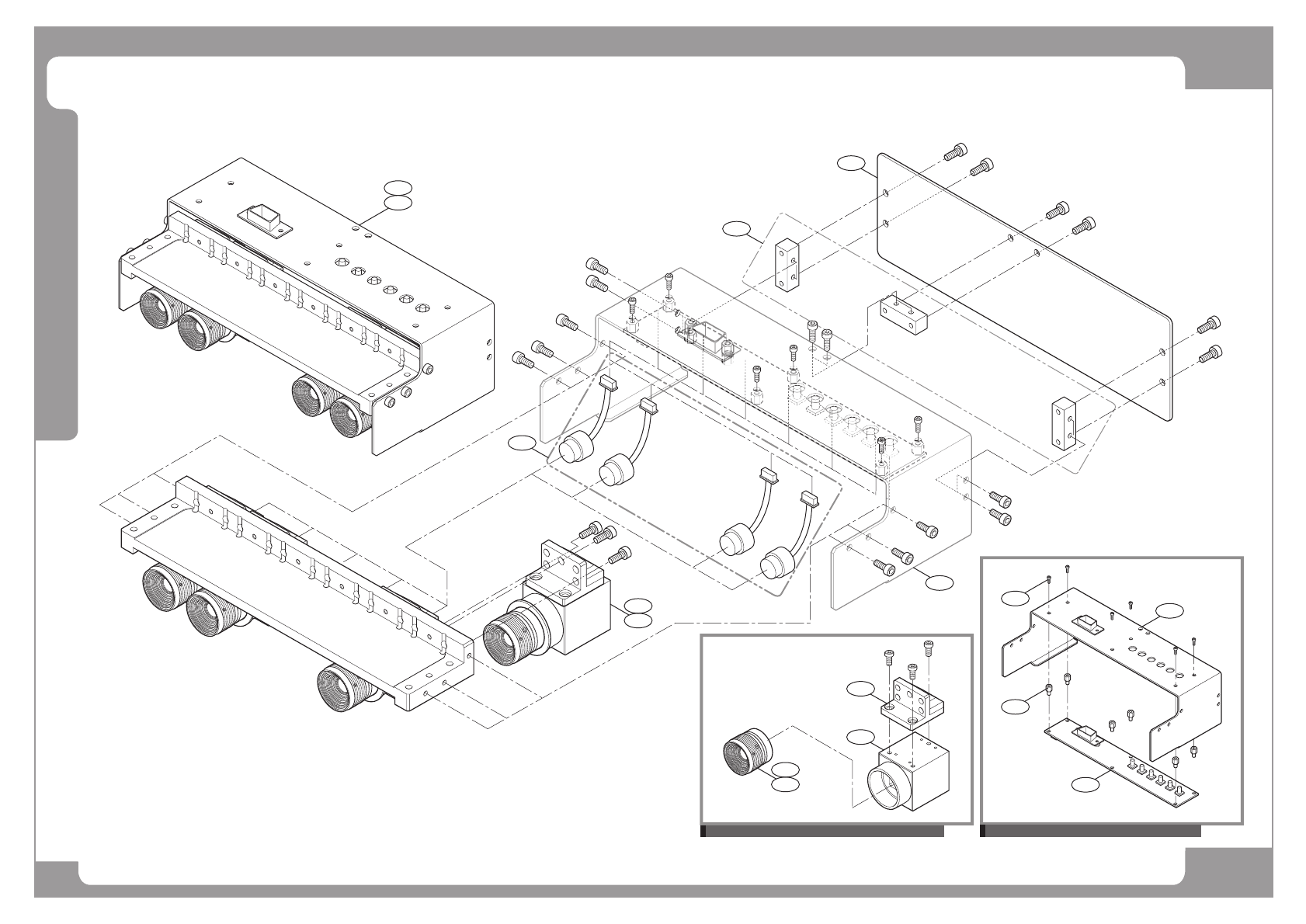

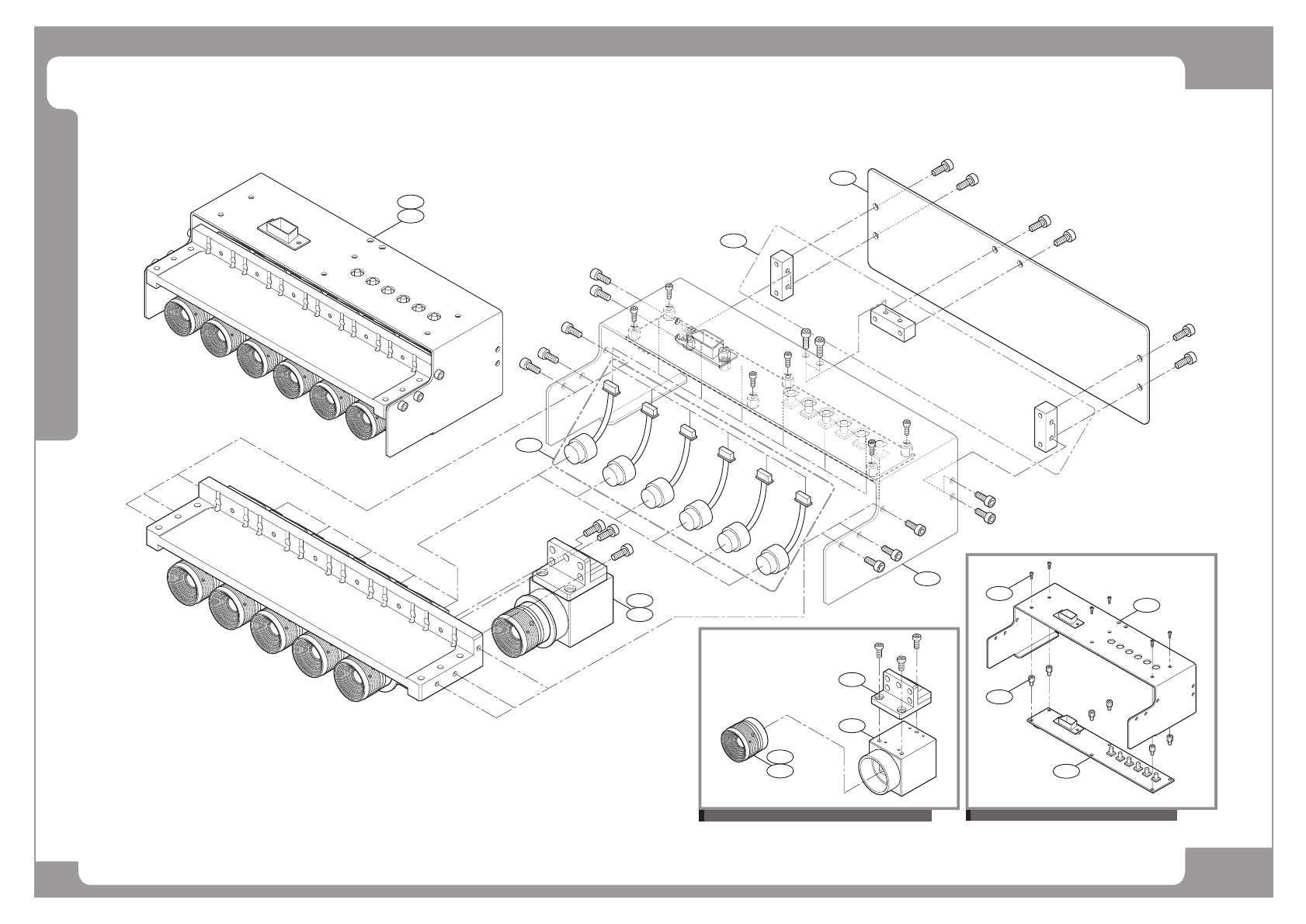

Page
SAMSUNG TECHWIN
32
SM421
Fly Camera Ass’y
FLY CAM ONE KIT ASS'Y (MEGA-F16,F25)
CAMERA COVER_BOARD ASSY-MEGA
6
13
11
1
14
5
3
2
15
16
4
7
8
10
9
12
Page
SAMSUNG TECHWIN
33
SM421
Fly Camera Ass’y - SM421F
FLY CAM ONE KIT ASS'Y (MEGA-F16,F25)
CAMERA COVER_BOARD ASSY-MEGA
6
13
11
1
14
5
3
2
15
16
4
7
8
10
9
12
Page
SAMSUNG TECHWIN
34
SM421
Fly Camera Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90551154A FLY_VISION_ASSY_MEGA-F16 J90551154A 1
J91851086A FLY_VISION_ASSY_MEGA-F16_4 1 SM421F
1 J90551156A FLY_CAMERA_ASSY_MEGA-F16 J90551156A 1
2 J90551081A FLY_CAM_ONE_KIT_ASSY_MEGA-F16 J90551081A 6 SM421F Q'TY : 4EA
3 J67510015B CCD CAMERA 1
4 J90591012A SM140165_LENS_ASSY J90591012A 1
5 J71551125B CAMERA_HOLDER J71551125A 1
6 J90551016A CAMERA_COVER_BOARD_ASSY 1
7 J7155536A CAMERA COVER[J7155536A] 1
8 J91741025A MEGA_CAMERA_IO_BOARDD VER1.0 1
9 J6103003A HEX SUPPORT 10
10 J6025300036 HEX NUT 8
11 J7159265A COVER JOINT[J7159265A] 3
12 J7155537A CAMERA REAR COVER[J7155537A] 1
13 J90830161B FLYING CAMERA I/F CABLE ASSY SM21-VIS011 6 SM421F Q'TY : 4EA
A-2 J90551155A FLY_VISION_ASSY_MEGA-F25 J90551155A 1
J91851084A FLY_VISION_ASSY_MEGA-F25_4 1 SM421F
14 J90551157A FLY_CAMERA_ASSY_MEGA-F25 J90551157A 1
15 J90591009A FLY_CAM_ONE_KIT_ASSY_MEGA-F25 6 SM421F Q'TY : 4EA
16 J9059208A FOV25 LENS ASSY[J9059208A] 1
