Page
SAMSUNG TECHWIN
36
SM421
Operation Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J91731020A FRONT REAR OPERATING ASSY 1
1 J70521373A MONITOR GUIDE PL 1
2 J70521059A LCD BRACKET 1
3 J7252061A PAD BRACKET 2
4 J70521158A LCD HINGE PLATE 1
5 J7070297A MONITOR CABLE COVER 1
6 J53011032A LCD_MONITOR_15 1 J53011015A
7 J70521158A LCD HINGE PLATE 1
8 J70521024B SM411 OP PANEL 1
9 J3403082A EMERGENCY SWITCH ASSY 1
J3409020A EMERGENCY S/W 1
J3409021A EM S/W(2B) 1
J37121111A FASTON_TERMINAL 1
10 J34031049A ULTRA BRIGHT LED WHITE 3
J34031042A PUSHBUTTON HEAD 6
J34031047A CONTACT BLOCK 6
J34031048A BLANK NAMEPLATE 6
J34031044A FLAT LENS WHITE 3
J37121111A FASTON TERMINAL 2
11 J34031052A ULTRA BRIGHT LED YELLOW 1
J34031042A PUSHBUTTON HEAD 6
J34031047A CONTACT BLOCK 6
J34031048A BLANK NAMEPLATE 6
J34031043A FLAT LENS YELLOW 1
J37121111A FASTON TERMINAL 2
12 J34031051A ULTRA BRIGHT LED RED 1
J34031042A PUSHBUTTON HEAD 6
Page
SAMSUNG TECHWIN
37
SM421
Operation Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
J34031047A CONTACT BLOCK 6
J34031048A BLANK NAMEPLATE 6
J34031045A FLAT LENS RED 1
J37121111A FASTON TERMINAL 2
13 J34031050A ULTRA BRIGHT LED GREEN 1
J34031042A PUSHBUTTON HEAD 6
J34031047A CONTACT BLOCK 6
J34031048A BLANK NAMEPLATE 6
J34031046A FLAT LENS GREEN 1
J37121111A FASTON TERMINAL 2
14 J34031049A ULTRA BRIGHT LED WHITE 3
J34031042A PUSHBUTTON HEAD 6
J34031047A CONTACT BLOCK 6
J34031048A BLANK NAMEPLATE 6
J34031044A FLAT LENS WHITE 3
J37121111A FASTON TERMINAL 2
15 J71521015B BUTTON CAP 1
16 J52021011A OPTICAL_MOUSE 1 J52021006A
17 J7452038A MOUSE PAD-OPTICAL 1
18 J70521113C KEYBOARD BASE BRACKET 1
19 J70521112C KEYBOARD BASE 1
20 J52011002A MINI KEYBOARD 1
Page
SAMSUNG TECHWIN
38
SM421

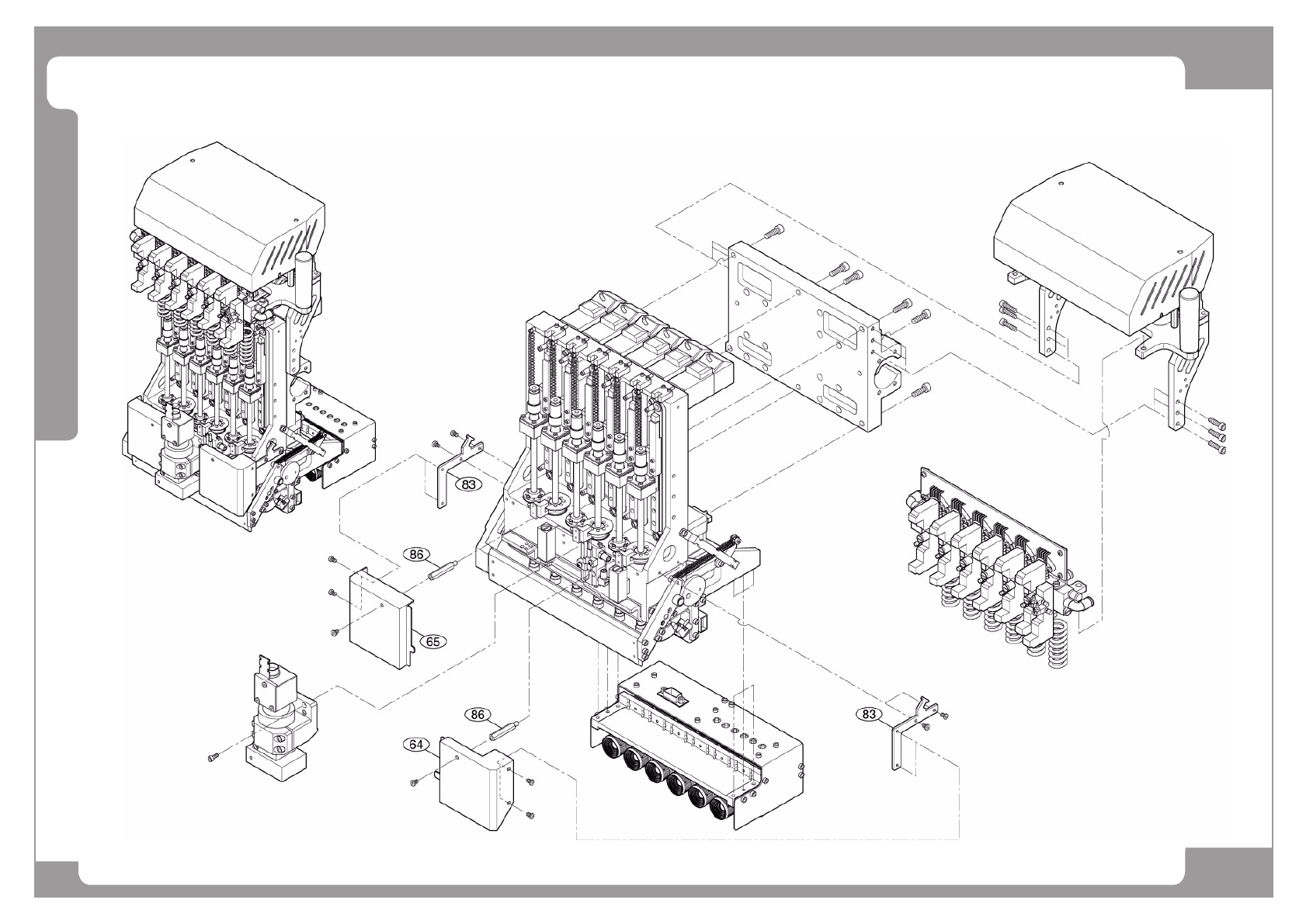

Head Ass’y (1/5)
