SM421_TechnicalReference(Eng_Ver6) - 第77页
Page SAMSUNG TECHWIN 67 SM421 X-Y Frame Ass’y (5/5) V acuum Generator Ass'y 3 V acuum Generator Ass'y 13 20 1 4 3 2 5
Page
SAMSUNG TECHWIN
66
SM421
X-Y Frame Ass’y (4/5)
46
44
21
19
19
18
16
15
10
12
9
6
7
11
8
12
13
14
17
Page
SAMSUNG TECHWIN
67
SM421
X-Y Frame Ass’y (5/5)
Vacuum Generator Ass'y3
Vacuum Generator Ass'y13
20
1
4
3
2
5
Page
SAMSUNG TECHWIN
68
SM421

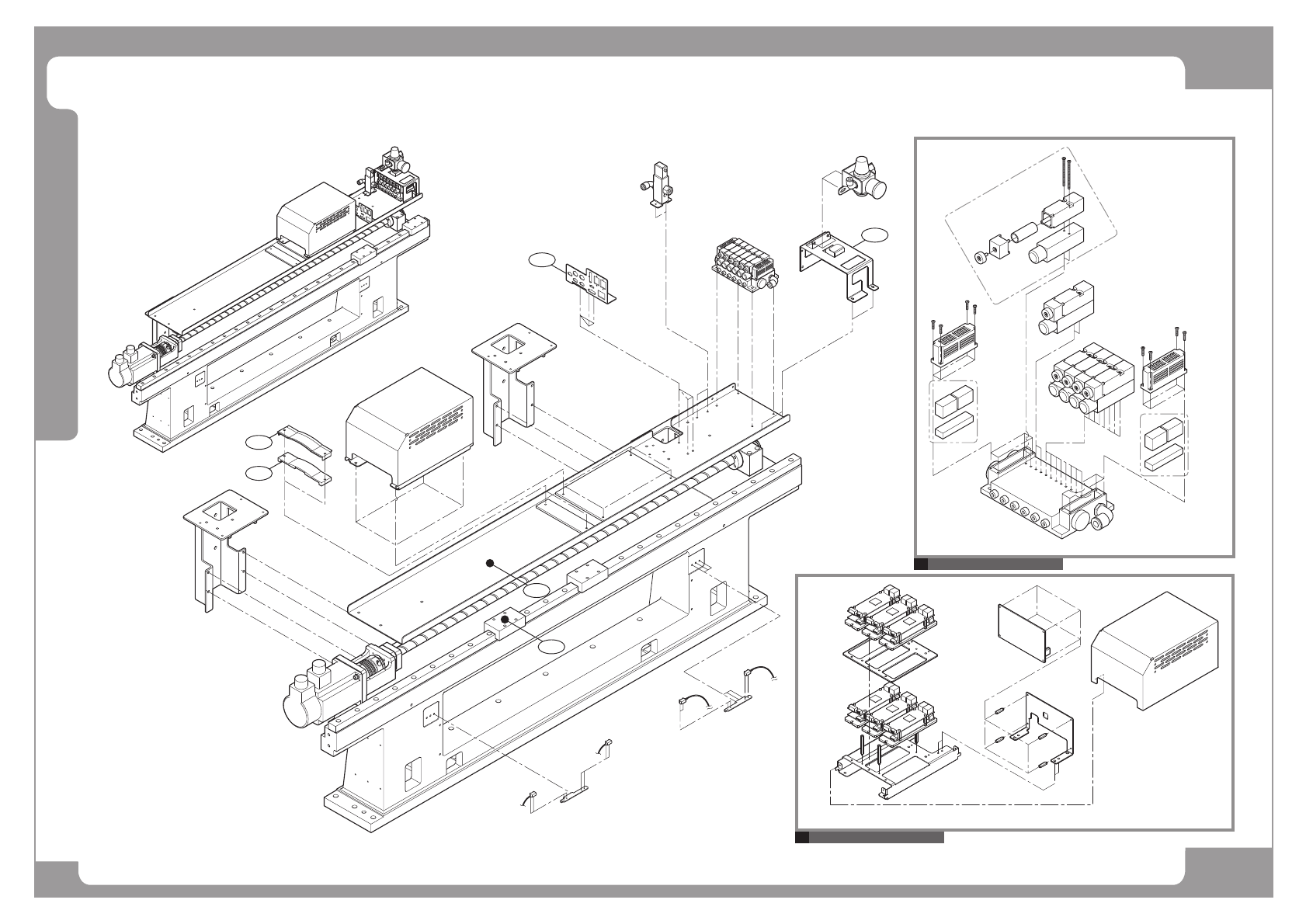

X-Y Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90541020A X-Y_ASSY J90541020A 1
1 J70541012E Y_CABLE_DUCT_SUPPORT 1 J70541012B
2 J70541101E CONNECTOR_PANEL-Y 1 J70541101D
3 J7054256A CUSHION BRACKET Y[J7054256A] 1
4 J7354024A CABLE CUSHION Y[J7354024A] 1
5 J70541104B VACUMM_GEN_BKT 1
6 J70541120C BS_REAR_SUPPORT 1
7 J70541119B BRG_SUPPORT_X 1
8 J70541121B BRG_INNER_SPACER 3
9 J70541122B BRG_OUTER_SPACER 1
10 J70541123B BEARING_COVER_Y 1
11 J6608003A BEARING NUT[RN15] 1
12 J66011036A ANGULAR_CONTACT_BALL_BEARING 7002CTYNDBM 2
13 J72541012A STOPPER_Y_BALL_SCREW J72541012A 1
14 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1
15 J71541087B STOPPER_EXT_Y_BALL_SCREW 1
16 J70541005C Y_MOTOR_BLOCK 1
17 J66061021A BALL_SCREW SBK2030ZS-3.4GT+1230LC5 1
18 J6601124A SUPPORT UNIT[FK-15] 1
19 J70541115A COVER_BKT J70541115A 2
20 J66070077B LM_GUIDE[SSR25XW2UU+1480LHY-II] 1
21 J6061601000 DOWEL PIN [MS6-10] 5
22 J3212022A LIMIT SENSOR [EE-SX674] 3
23 J72541011A CUSHION_X_REAR J72541011A 1
24 J71541010A BRG_HOUSING-X J71541010A 1
25 J71541009A BRG_SUPPORT-X J71541009A 1
26 J66061014B X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1
