Page SAMSUNG TECHWIN 70 SM421 F ixed ANC Ass’y 1 4 1 5 6 2 3 7 8 9
Page
SAMSUNG TECHWIN
69
SM421
X-Y Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
27 J66011017A SUPPORT_UNIT FK12-MP5 1
28 J6601008A BALL BEARING 1
29 J1300517 C-RING [10mm (SHAFT)] 1
30 J7354023A CABLE CUSHION X[J7354023A] 3
31 J71541083B GUIDE_CABLE_CHAIN_X 1
32 J71541082B Y2_PLATE 1
33 J71541081B Y1_PLATE 1
34 J71541020B HEAD_BASE 1
35 J7054255A CUSHION BRACKET X[J7054255A] 3
36 J70541129B SENSOR_DOG_Y 1
37 J70541116A COVER_Y_CABLE_DUCT_BRK J70541116A 1
38 J70541114A BKT_CABLE_CHAIN_Y J70541114A 1
39 J70541038A SENSOR_DOG_X J70541038A 2
40 J66070076B LM_GUIDE [SSR15X2W2UUC1+940LHY-II] 2
41 J1300502 PIN DOWEL [MS5-10] 4
42 J72540016E INNER GUIDE-MAT 3
43 J71541086A HEAD_TOP_COVER J71541086A 1
44 J6612036A COUPLING 2
45 J6612035A COUPLING 1
46 J3108064A SERVO MOTOR[MSMA102P1C01] 2
47 J3108063A SERVO MOTOR[MSMA082P1A01] 1
Page
SAMSUNG TECHWIN
70
SM421

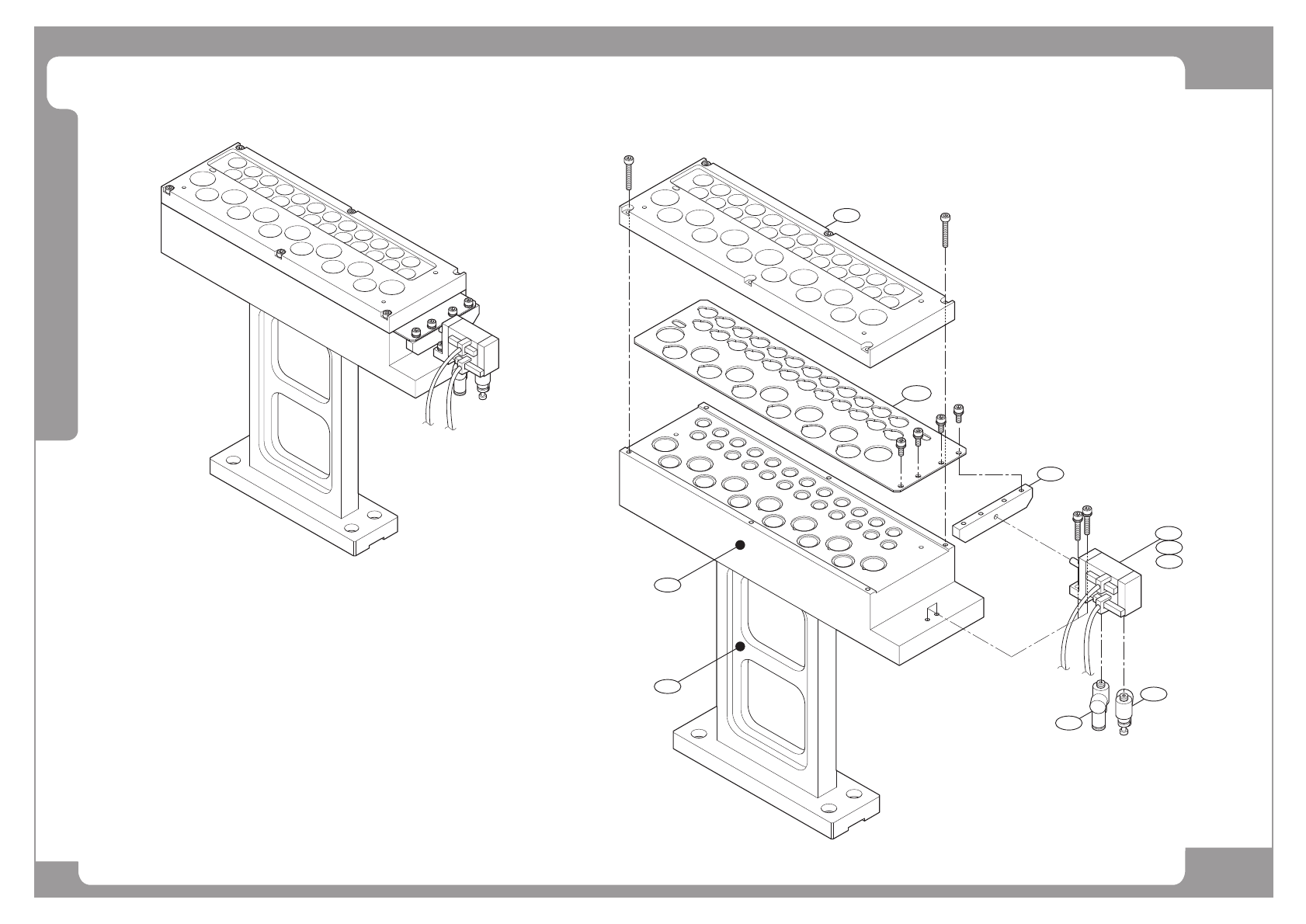

Fixed ANC Ass’y
1
4
1
5
6
2
3
7
8
9
Page
SAMSUNG TECHWIN
71
SM421
Fixed ANC Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J9056038A ANC ASSY[J9056038A] 1
1 J6703028A SPEED CONTROLLER [SS4-M5MA] 2
2 J7156053A ANC SUPPORT [J7156053A] 1
3 J7156087A SHUTTER BRACKET[J7156087A] 1
4 J7156093A ANC PLATE 1
5 J7156094A NOZZLE SHUTTER[J7156094A] 1
6 J7156095A MAIN BODY[J7156095A] 1
7 J6701064A AIR CYLINDER[BDAS10*5-1A-ZC153A2] 1
8 J9080778B ANC SENSOR CABLE ASSY 1 [53] at 105 page
