Page SAMSUNG TECHWIN 77 SM421 C over Ass’y (2/3) NO. LEVEL P ART NO. P ART NAME Q'TY TYPE Old No. Stock Apply Reference 1 J67191061A GAS SPRING 4 2 J70521075D GAS SPRING BRA CKET1 4 3 J70521 1 58A LCD HINGE PLA TE 1…
Page
SAMSUNG TECHWIN
76
SM421

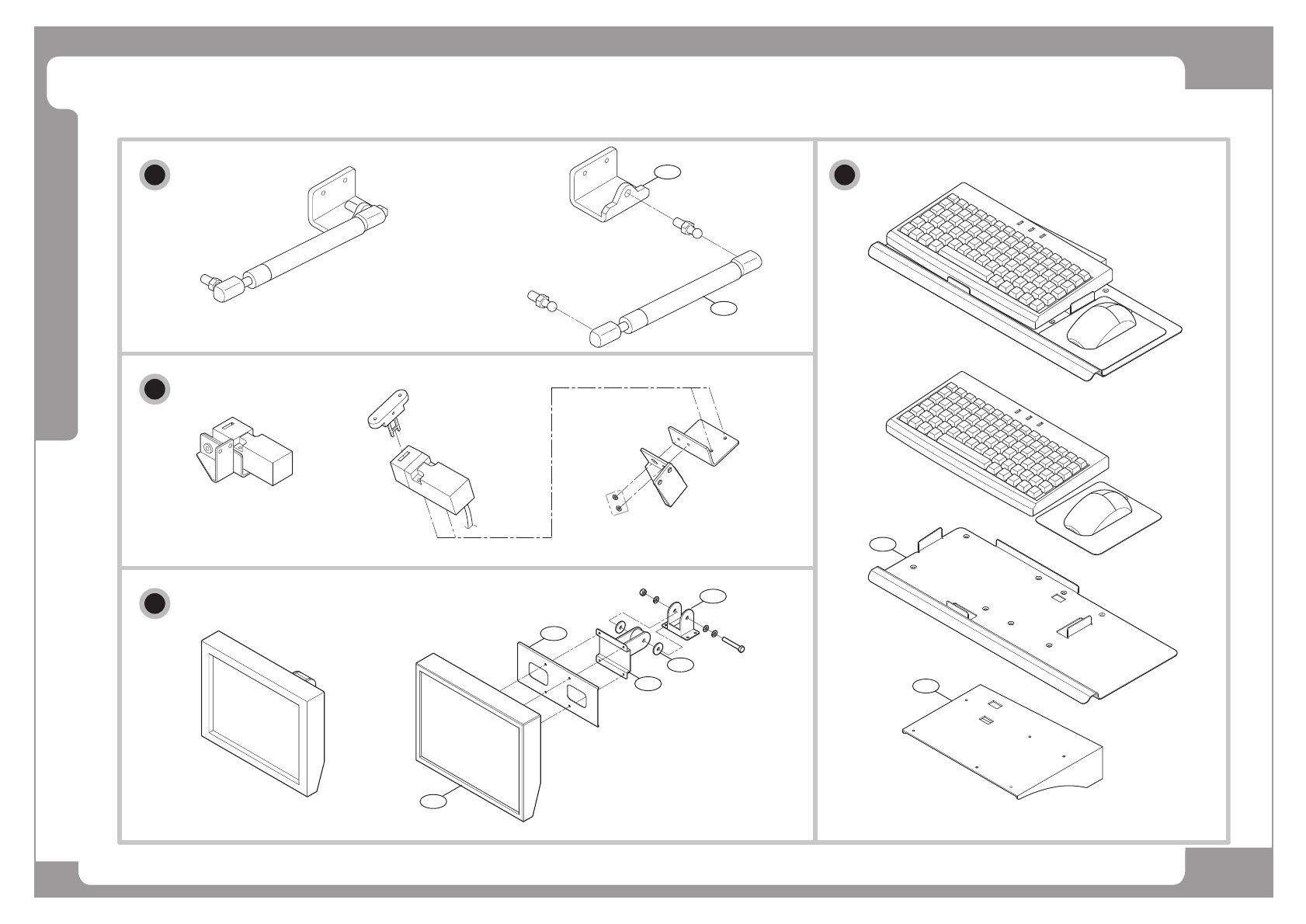

Cover Ass’y (2/3)
h
i
j
k
OMRON
D4DS
8
9
1
2
3
4
5
7
6
Page
SAMSUNG TECHWIN
77
SM421
Cover Ass’y (2/3)
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J67191061A GAS SPRING 4
2 J70521075D GAS SPRING BRACKET1 4
3 J70521158A LCD HINGE PLATE 1
4 J70521059A LCD BRACKET 1
5 J7252061A PAD BRACKET 2
6 J53011032A LCD_MONITOR_15 1 J53011015A
7 J70521373A MONITOR GUIDE PL 1
8 J70521112C KEYBOARD BASE 1
9 J70521113C KEYBOARD BASE BRACKET 1
Page
SAMSUNG TECHWIN
78
SM421

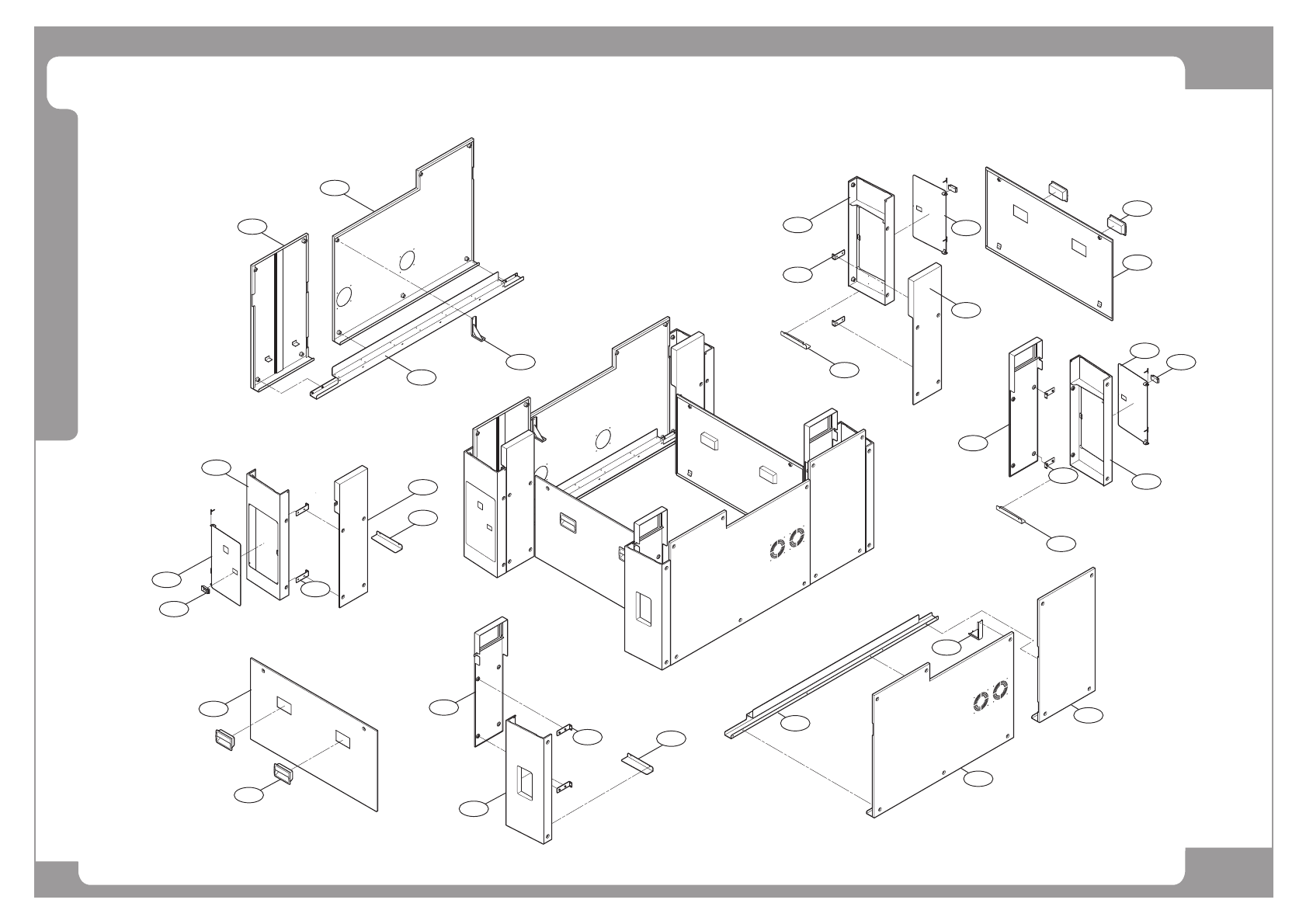

Cover Ass’y (3/3)
5
11
6
18
17
7
14
20
21
7
10
12
13
16
1
2
6
12
3
1
2
9
10
14
19
21
4
15
9
8
11
22
22
