Page SAMSUNG TECHWIN 83 SM421 E lectric Panel Ass’y (2/2) LC1D096B D LC1D096B D 13 14 CAN FEEDER EXTENSION BOARD LC1D096BD LC1D096BD 15 12
Page
SAMSUNG TECHWIN
82
SM421

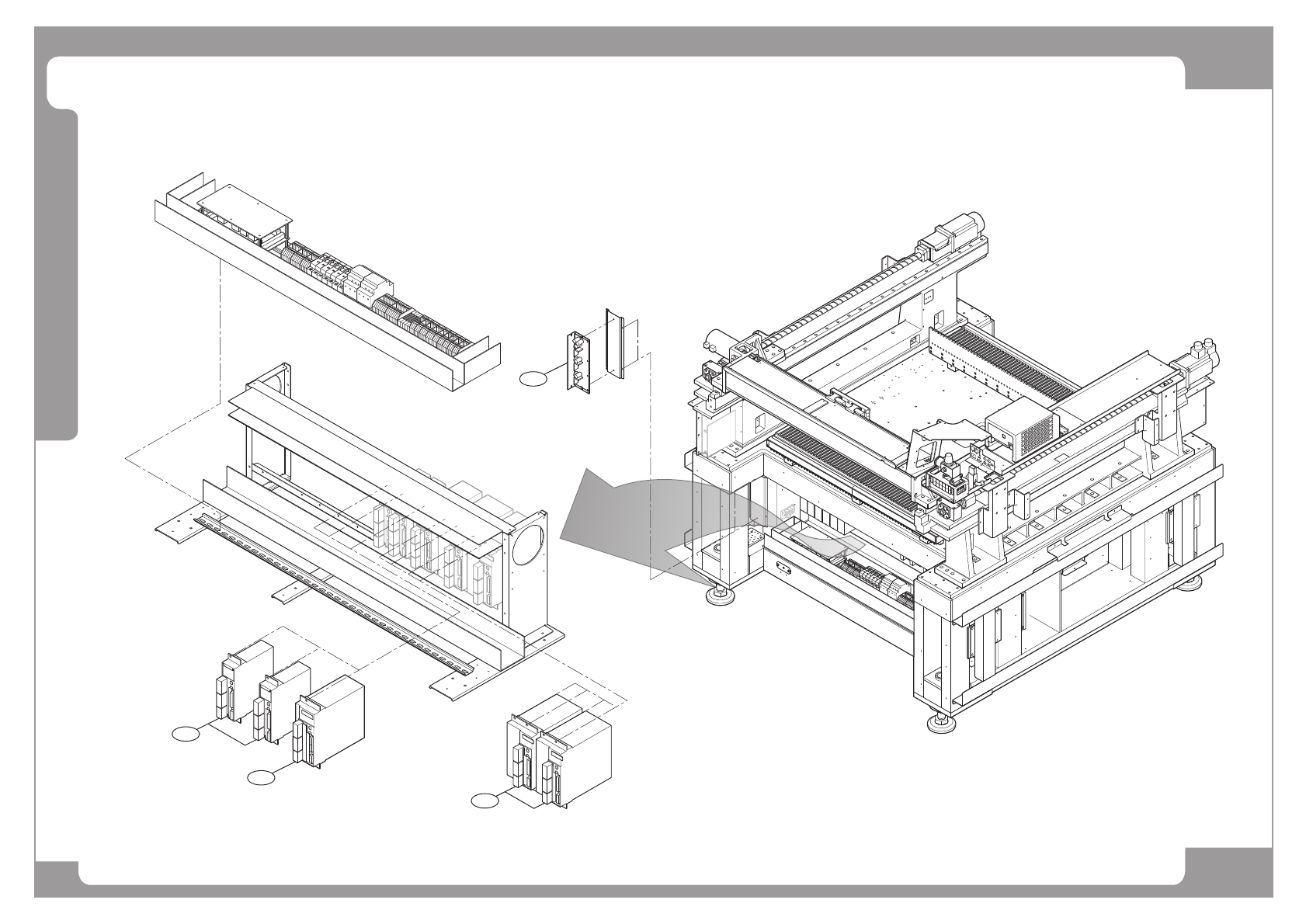

Electric Panel Ass’y (1/2)
9
LC1D096BD
LC1D096BD
11
3
16
2
3
7
8
6
10
5
10
4
6
1
Cover Ass'y
17
17
Page
SAMSUNG TECHWIN
83
SM421
Electric Panel Ass’y (2/2)
LC1D096B
D
LC1D096B
D
13
14
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
15
12
Page
SAMSUNG TECHWIN
84
SM421
Electric Panel Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90781005A REAR_ELECTRIC_PANEL_ASSY J90781005A 1
1 J3501040A MAGNETIC CONTACTOR[LC1D096BD, DC24V, 1A1 1
2 J3603015A CIRCUIT PROTECTOR[C60a-2P-C16(23812)] 1
3 J3603016A CIRCUIT PROTECTOR[C60a-3P-C16(23825)] 1
4 J3601018A FUSE[250V 5A] 3
5 J3601019A FUSE[250V 10A] 2
6 J3716042A STOPPER[UA-51] 2
7 J3716044A TEMINAL BLOCK[WDU 2.5] 63
8 J3716046A END PLATE[WAP2.5-10] 13
9 J3716047A CROSS CONNECTION[ZQV2.5] 5
10 J3716067A FUSE TERMINAL BLOCK[ASK 1] 5
11 J91741087A SAFETY_CONTROL_DC_POWER_BOARD 1
12 J90511022A HEAD R MOTOR DRIVER ASSY 1
13 J3153056A SERVO MOTOR DRIVER(750W)[MCDDT3520] 1
14 J3153057A SERVO MOTOR DRIVER(1KW)[MDDDT5540] 2
15 J3153055A SERVO MOTOR DRIVER(100W)[MADDT1205] 1
16 J7251007A BOARD COVER[J7251007A] 1
17 J3105010A COOLING FAN[4715MS-22T-B50] 2
18 J90831423C AXIS_SENSOR_BD_PW_CABLE_ASSY 1 J90831423B [59] at 111, 123 page
19 J90831365A TRANSFORMER_INPUT_EXT_CABLE_ASSY SM41-PW 1 [60] at 127 page
20 J90831345A NF1_MAIN_SWITCH_CABLE_ASSY SM41-PW004 1 [61] at 127 page
21 J90831347A TRANS_CP1-2_CABLE_ASSY SM41-PW006 1 [62] at 127 page
22 J90831296E X_MOTOR_ENC_CABLE_ASSY 1 [63] at 114 page
23 J90831438C R_STEP_MOTOR_PWR_EXT_CABLE_ASSY 1 [64] at 118 page
24 J90831418E SW_MOTOR_ENC_CABLE_ASSY 1 [65] at 114 page
25 J90831339C Y1_MOTOR_ENC_CABLE_ASSY 1 [66] at 113 page
26 J90831332B REAR-EMDOORFD-CHG-SW-CABLE-ASSY 1 [138] at 122 page
