Guide for components changeover table
Page 2 / 4 19.11.2021
Guide for components changeover table
Page 3 / 4 19.11.2021
Pos. Item no. Description Part marking
00356003-01 GUIDE FOR CHANGEOVER
COMPONENTS TABLE F4/F5
00320838-03 GUIDE FOR CHANGEABLE TABLE
00304630-07 STRIP
1 00304631-03 CENTERING SPARE PART
2 00304632-05 CENTERING BOLT SPARE PART
00304702-01 BUFFER MOUNT SPARE PART
00304703-01 BUFFER MOUNT SPARE PART
3 00304704-03 SLEEVE SPARE PART
4 00304709-04 SLIDEING PLATE Spare Part
00304710-05 SLIDE RAIL MOUNT
5 00201033-01 PLASTIC SPRING 8,5*20*40 (90
SHORE) RED
SPARE PART
6 00304642-01 HORIZONTAL TENSIONER SPARE PART
7 00048346-01 DIN 6799 - 8-ST Spare Part
8 00095567-01 DIN 934 - M 8 - ST
9 00048346-01 DIN 6799 - 8-ST Spare Part
10 00095567-01 DIN 934 - M 8 - ST
11 00304700-01 HOLDER SPARE PART
12 00095566-01 HEXAGON NUT
13 00095474-01 DISC 6,4 DIN125-A Spare
14 00845058-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 16-8.8, COPPER + NI-
PLATED
15 00845060-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 25-8.8
16 00845026-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 12-8.8
17 00304641-01 SPACER PLATE Spare Part
18 00095474-01 DISC 6,4 DIN125-A Spare
19 00845059-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 20-8.8
00326964-01 GUIDE F. CHANGEOVER
COMPONENT TABLE 80F
00304630-07 STRIP
20 00304631-03 CENTERING SPARE PART
21 00304632-05 CENTERING BOLT SPARE PART

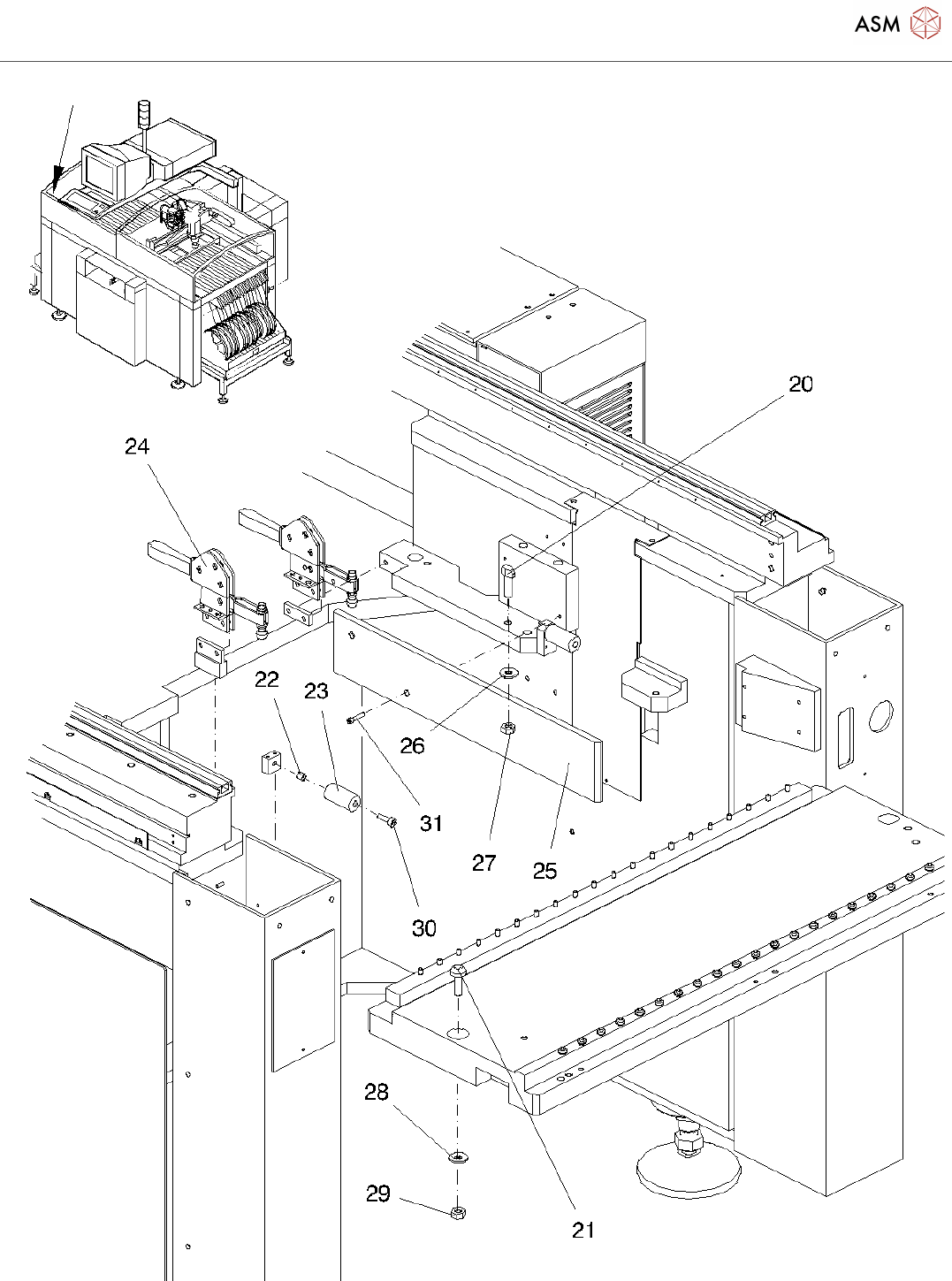

Guide for components changeover table
Page 4 / 4 19.11.2021
Pos. Item no. Description Part marking
00304702-01 BUFFER MOUNT SPARE PART
00304703-01 BUFFER MOUNT SPARE PART
22 00304704-03 SLEEVE SPARE PART
00304710-05 SLIDE RAIL MOUNT
23 00201033-01 PLASTIC SPRING 8,5*20*40 (90
SHORE) RED
SPARE PART
24 00304642-01 HORIZONTAL TENSIONER SPARE PART
25 00316791-01 SLIDING PLATE Spare Part
26 00048346-01 DIN 6799 - 8-ST Spare Part
27 00095567-01 DIN 934 - M 8 - ST
28 00048346-01 DIN 6799 - 8-ST Spare Part
29 00095567-01 DIN 934 - M 8 - ST
30 00845060-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 25-8.8
31 00845026-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 12-8.8
