3 Mechanical Section 3-22 Lubrication Lubrication Points Lubricate the specified p ortions listed below with cotton swab soaked with lubricant. UNIT PORTION LUBRICANT FREQ. Ball Screw of X-axis Grease Every two weeks Lin…
3 Mechanical Section
3-21

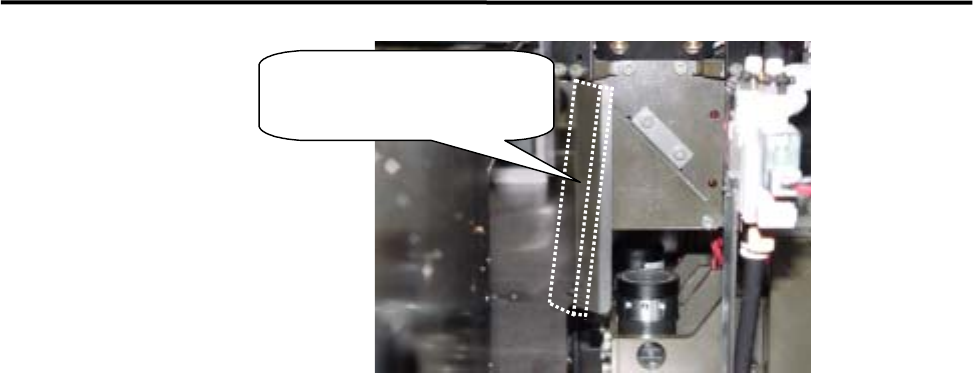

Take care not to set the front
cover in inclined way.
Cleaning of Teach Camera
The lens of teach camera faces downward, and usually it would not get any dirt/dust under the normal
operation. However, if it gets dirty, blow air using blower brush from the bottom of the teach camera in
order to remove the dust.
3 Mechanical Section
3-22
Lubrication
Lubrication Points
Lubricate the specified portions listed below with cotton swab soaked with lubricant.
UNIT PORTION LUBRICANT FREQ.
Ball Screw of X-axis Grease Every two weeks
Linear Guide of X-axis (Upper and Lower) Grease Every two weeks
Ball Screw of Y-axis (Right and Left) Grease Every two weeks
Linear Guide of Y-axis (Right and Left) Grease Every two weeks
Feeder Bank Plates Grease Every two weeks
Conveyor Width Adjusting Screw Grease Monthly
M2 Conveyor Guide Shaft Grease Monthly
Ball Screw of Z-axis Grease Every two weeks
Guide of Z-axis Grease Every two weeks
Spline shaft of R-axis Grease Every two weeks
Gear of R-axis Grease Monthly
Ball Screw of S-axis Grease Every two weeks
Linear Guide of S-axis Grease Every two weeks
Nozzle Silicone Grease Weekly
MX-20 Ball Screw Grease Monthly
(OPTION) Slide Pack Grease Monthly
Slide Pack (Shuttle Unit) Grease Monthly
MXR-20 Ball Screw Grease Monthly
(OPTION) Linear Shaft Grease Monthly
MX-ST2 Shaft Grease Monthly
(OPTION) Parallel Pin Grease Monthly
Downside of cap Grease Monthly
Contact part of shaft and cap Grease Monthly
Contact part of shaft and bracket Grease Monthly
NOTE: Do not apply excessive oil/grease. This may cause oil/grease scattering when the mounter is in operation.
3 Mechanical Section
3-23

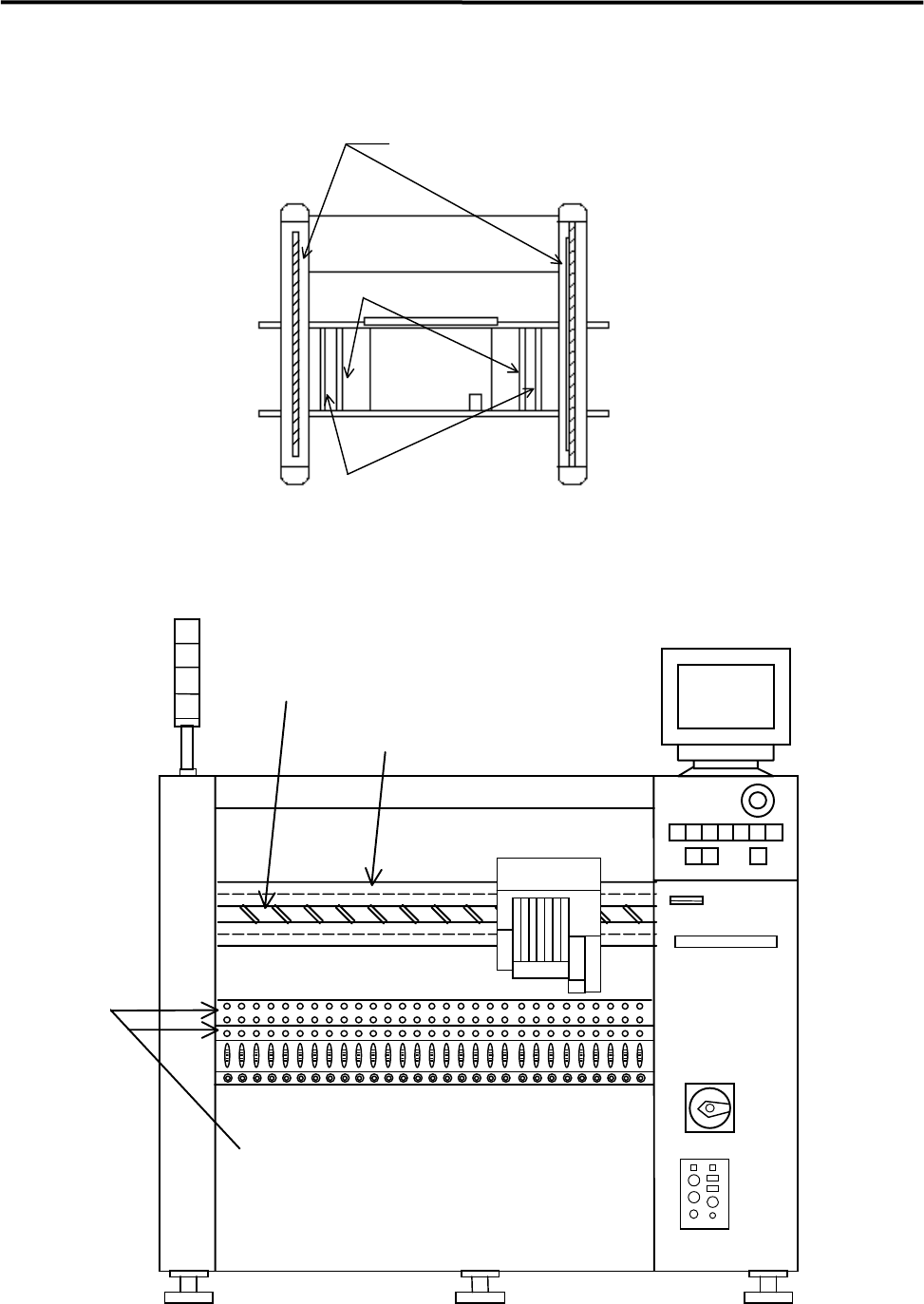

■ Lubrication Points for X/Y-axis, Conveyor, Feeder bank plates
Y axis Linear guide
Y axis ball screw
Conveyor adjusting screw
Conveyor guide shaft
X axis ball screw
X axis Linear guide
Feeder bank plates
