FOREIGN MACHINE INTERFACE MULTI-INTERFACE UNIT Chapter Issue 3 Jan 08 Technical Reference Manu al 28.47 Fuji Upline Interface Cable View on Arrow B B Fuji Upline Plug AMP 206434-1 PLB 1 2 3 5 6 8 A PLA DEK Machine 50 W a…
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
28.46 Technical Reference Manual Chapter Issue 3 Jan 08

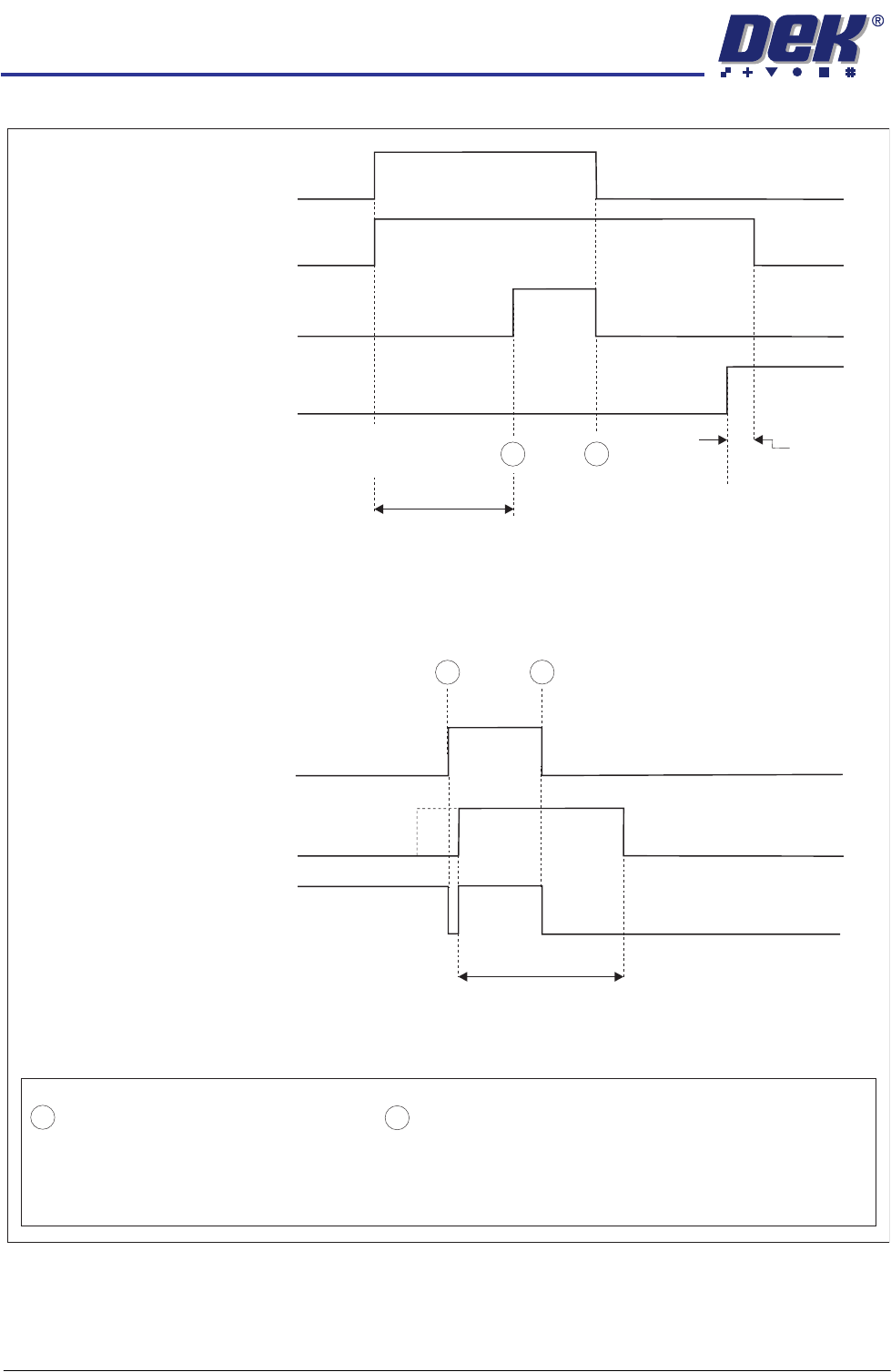

Fuji Logical Timing Diagram
NOTES
The Board Request signal is checked when a board becomes available at the previous stage. If the Board Request
signal is not present, a board is not transferred.
signal from the next stage indicates that the board has arrived
at the next stage.
The Board Request signal is output continuously to the previous
stage until the board arrives. No Board Request
- Board Trailing Edge at Sensor
- Board Leading Edge at Sensor
A
B
DEK M/C Output Sensor
Downline M/C
(I/P to DEK M/C)
Board Request
Fuji Downline Logical Timing Diagram
DEK M/C Belts Running
A
B
DEK M/C Input Sensor
DEK M/C
(O/P from DEK M/C)
Board Request
DEK M/C Board At Stop Sensor
DEK M/C Ready
Start Belts
Board At Stop
Transfer Complete
< Transfer Period
< Transfer Period
Belt Overrun
Fuji Upline Logical Timing Diagram
DEK M/C Belts Running
A
B
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
Chapter Issue 3 Jan 08 Technical Reference Manual 28.47

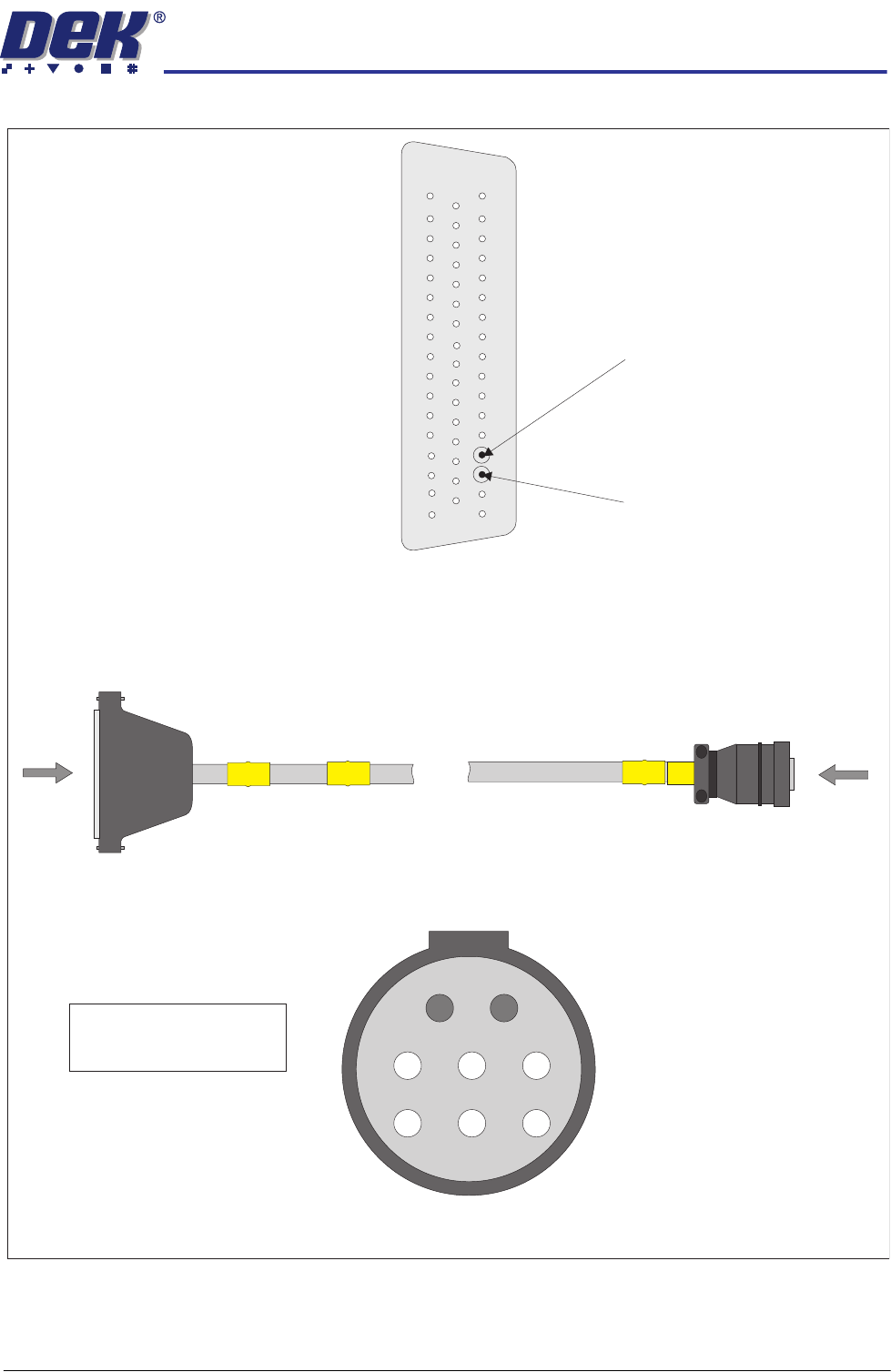

Fuji Upline Interface Cable
View on Arrow B
B
Fuji Upline Plug
AMP 206434-1
PLB
1
2
3
5
6
8
A
PLA
DEK Machine
50 Way D-type
View on Arrow A
Pin 37 - Board Request (H)
Pin 36 - Board Request (L)
33
50
1
18
34
17
Pin 1 - Board Request (H)
Pin 2 - Board Request (L)
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
28.48 Technical Reference Manual Chapter Issue 3 Jan 08
Fuji Downline Interface Cable
View on Arrow B
B
PLB
Fuji Downline Plug
AMP 206434-1
1
2
3
5
6
8
A
PLA
DEK Machine
50 Way D-type
View on Arrow A
VLED Out LINK
Pin 41 to Pin 49
Pin 17 - Board Request (L)
Pin 10 - Board Request (H)
33
50
1
18
34
17
Pin 1 - Board Request (H)
Pin 2 - Board Request (L)
