FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
28.54 Technical Reference Manual Chapter Issue 3 Jan 08

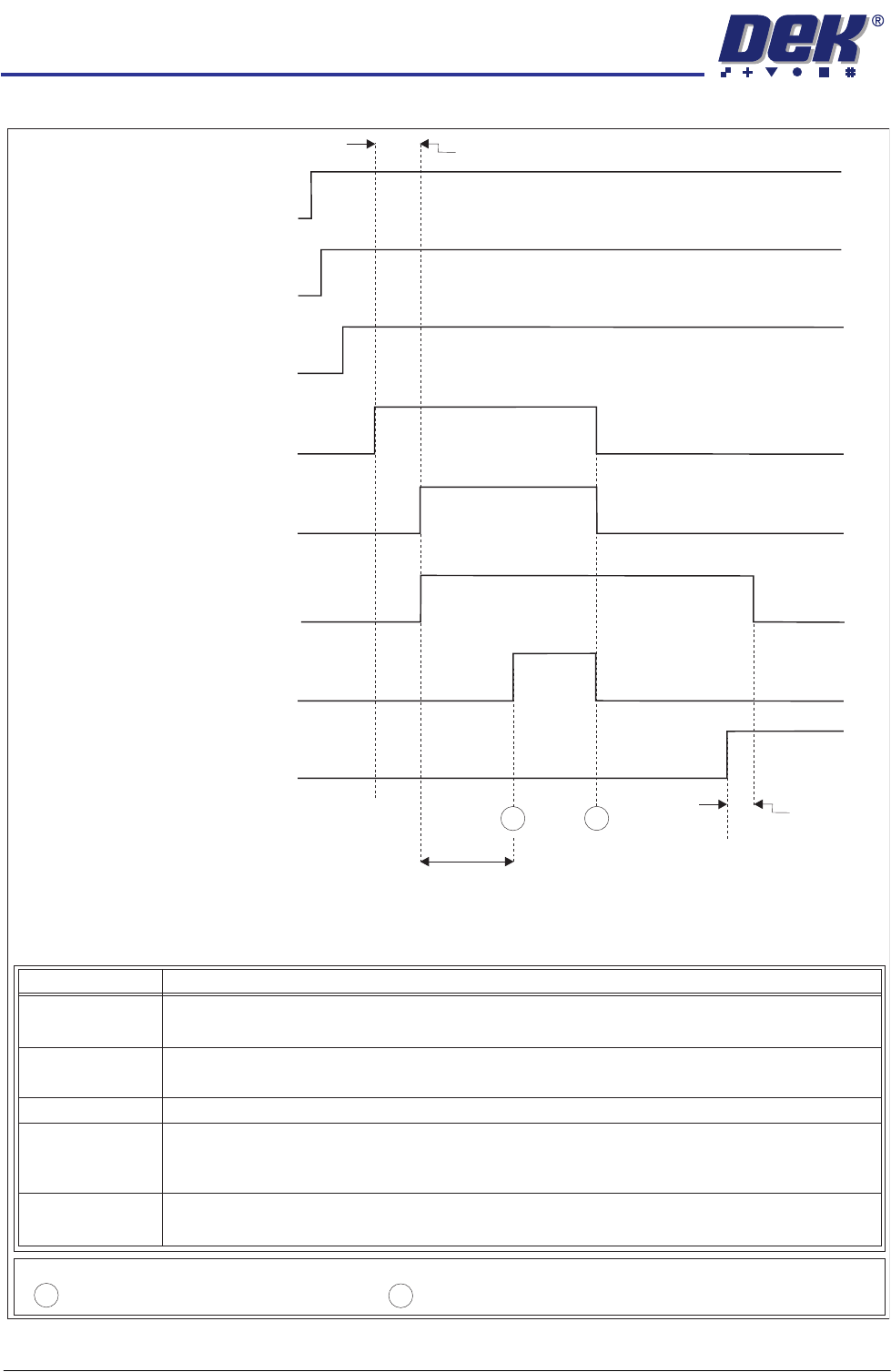

Sanyo Upline Logical Timing Diagram
Upline M/C
(I/P to DEK M/C)
Run Signal
DEK M/C
(O/P from DEK M/C)
O/P M/C
Run Signal
DEK M/C
(O/P from DEK M/C)
O/P M/C PCB
Requirement Signal
Upline M/C
(I/P to DEK M/C)
Ready Signal
Upline M/C
(I/P to DEK M/C)
PCB Transfer
Signal
DEK M/C Belts Running
DEK M/C Input Sensor
DEK M/C Board At Stop Sensor
DEK M/C
Ready
Board At Stop
Transfer Complete
< Transfer Period
Belt Overrun
< Transfer Period
Sanyo Upline Logical Timing Diagram
A
B
- Board Trailing Edge at Sensor
- Board Leading Edge at Sensor
A
B
NOTES
This signal informs the printer that the upline machine is in automatic operation. When
this signal is off, the printer stops after completing the current board.
Run Signal
OM
Run Signal
/P /C
Ready Signal
O/P M/C
PCB Requirement
Signal
PCB Transfer
Signal
This signal shows that the upline machine is transferring a board. Upon receipt of this
signal the printer starts the belts to take in the board.
This signal informs the upline machine that the printer is ready to receive a board. A
board transfer is only possible when this signal is on.
This signal shows that the upline machine is ready to start processing a board.
This signal informs the upline machine that the printer is in automatic operation, ie
initialized.
Signal Name Definition
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
Chapter Issue 3 Jan 08 Technical Reference Manual 28.55

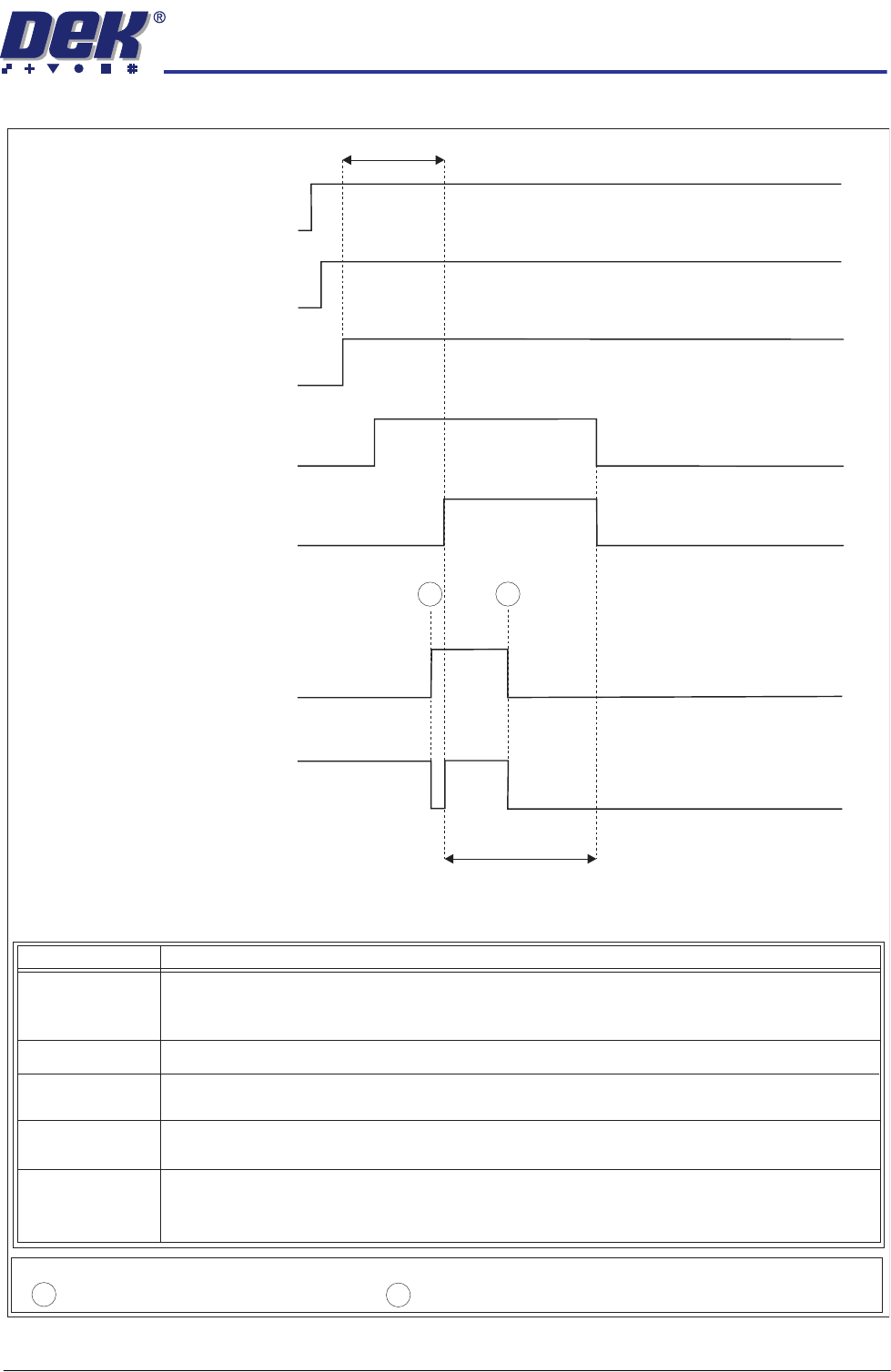

Sanyo Downline Logical Timing Diagram
Downline M/C
(I/P to DEK M/C)
Downline M/C
(I/P to DEK M/C)
I/P M/C
Run Signal
DEK M/C
(O/P from DEK M/C)
DEK M/C
(O/P from DEK M/C)
DEK M/C
(O/P from DEK M/C)
Run Signal
PCB Requirement
Signal
I/P M/C
Ready Signal
I/P M/C PCB
Transfer Signal
Sanyo Downline Logical Timing Diagram
- Board Trailing Edge at Sensor
- Board Leading Edge at Sensor
A
B
NOTES
DEK M/C Belts Running
DEK M/C Output Sensor
< Transfer Period
< Transfer Period
A
B
This signal informs the downline machine that the printer is in automatic operation, ie
initialized. When this signal is off, the downline machine stops after completing the
current board.
IM
Run Signal
/P /C
Run Signal
I/P M/C
Ready Signal
PCB Requirement
Signal
I/P M/C
PCB Transfer
Signal
This signal shows that the printer is transferring a board. Upon receipt of this signal
the downline machine starts the belts to take in the board.
This signal informs the printer that the downline is ready to receive a board. A board
transfer is only possible when this signal is on.
This signal shows that the printer is ready to start processing a board.
This signal informs the printer that the downline machine is in automatic operation.
Signal Name Definition
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
28.56 Technical Reference Manual Chapter Issue 3 Jan 08
Sanyo Upline Interface Cable
View on Arrow B
Pin 1 - Output Machine Run Signal
Pin 2 - Output Machine PCB
Requirement Signal
Pin 3 - Run Signal
PLB
A
PLA
DEK Machine
50 Way D-type
View on Arrow A
Pin 15 - VLED Out (+24V)
OV
OV
Pin 26 - Ready Signal
Pin 10 - Run Signal
Pin 42 - PCB Transfer Signal
Pin 34 - Output Machine PCB
Requirement Signal
Pin 36 - Output Machine
Run Signal
Pin 41 - VLED In (+24V)
33
50
1
18
37
17
1
2
3
4
7
8
9
10
5
6
Pin 4 - PCB Transfer Signal
Pin 5 - Ready Signal
Pin 8 - VLED In (+24V)
Pin 9 - VLED Out (+24V)
B
Sanyo Upline Plug
