FOREIGN MACHINE INTERFACE MULTI-INTERFACE UNIT 28.58 Technical Reference Manu al Chapter Issue 3 Jan 08
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
28.56 Technical Reference Manual Chapter Issue 3 Jan 08

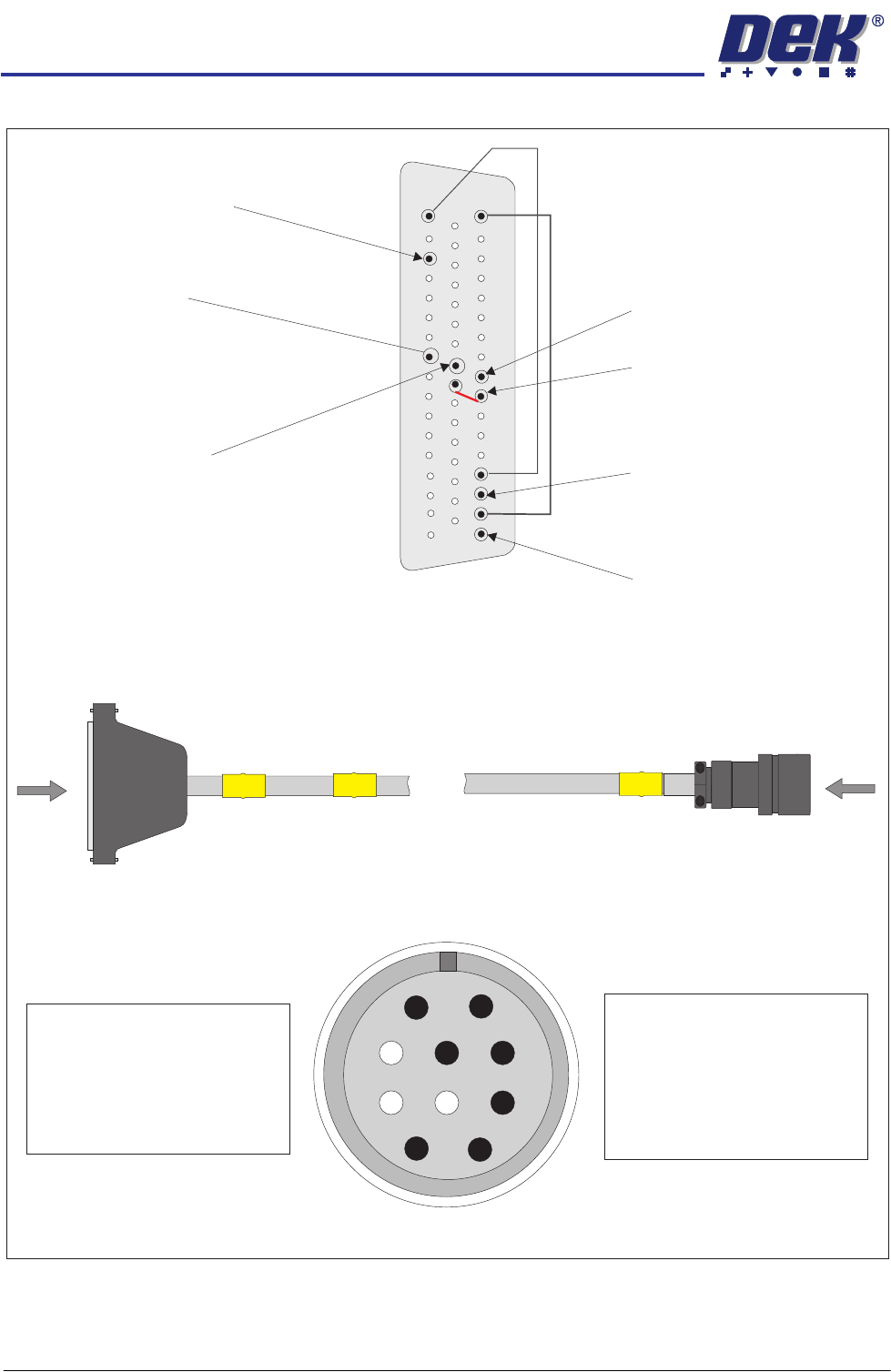

Sanyo Upline Interface Cable
View on Arrow B
Pin 1 - Output Machine Run Signal
Pin 2 - Output Machine PCB
Requirement Signal
Pin 3 - Run Signal
PLB
A
PLA
DEK Machine
50 Way D-type
View on Arrow A
Pin 15 - VLED Out (+24V)
OV
OV
Pin 26 - Ready Signal
Pin 10 - Run Signal
Pin 42 - PCB Transfer Signal
Pin 34 - Output Machine PCB
Requirement Signal
Pin 36 - Output Machine
Run Signal
Pin 41 - VLED In (+24V)
33
50
1
18
37
17
1
2
3
4
7
8
9
10
5
6
Pin 4 - PCB Transfer Signal
Pin 5 - Ready Signal
Pin 8 - VLED In (+24V)
Pin 9 - VLED Out (+24V)
B
Sanyo Upline Plug
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
Chapter Issue 3 Jan 08 Technical Reference Manual 28.57

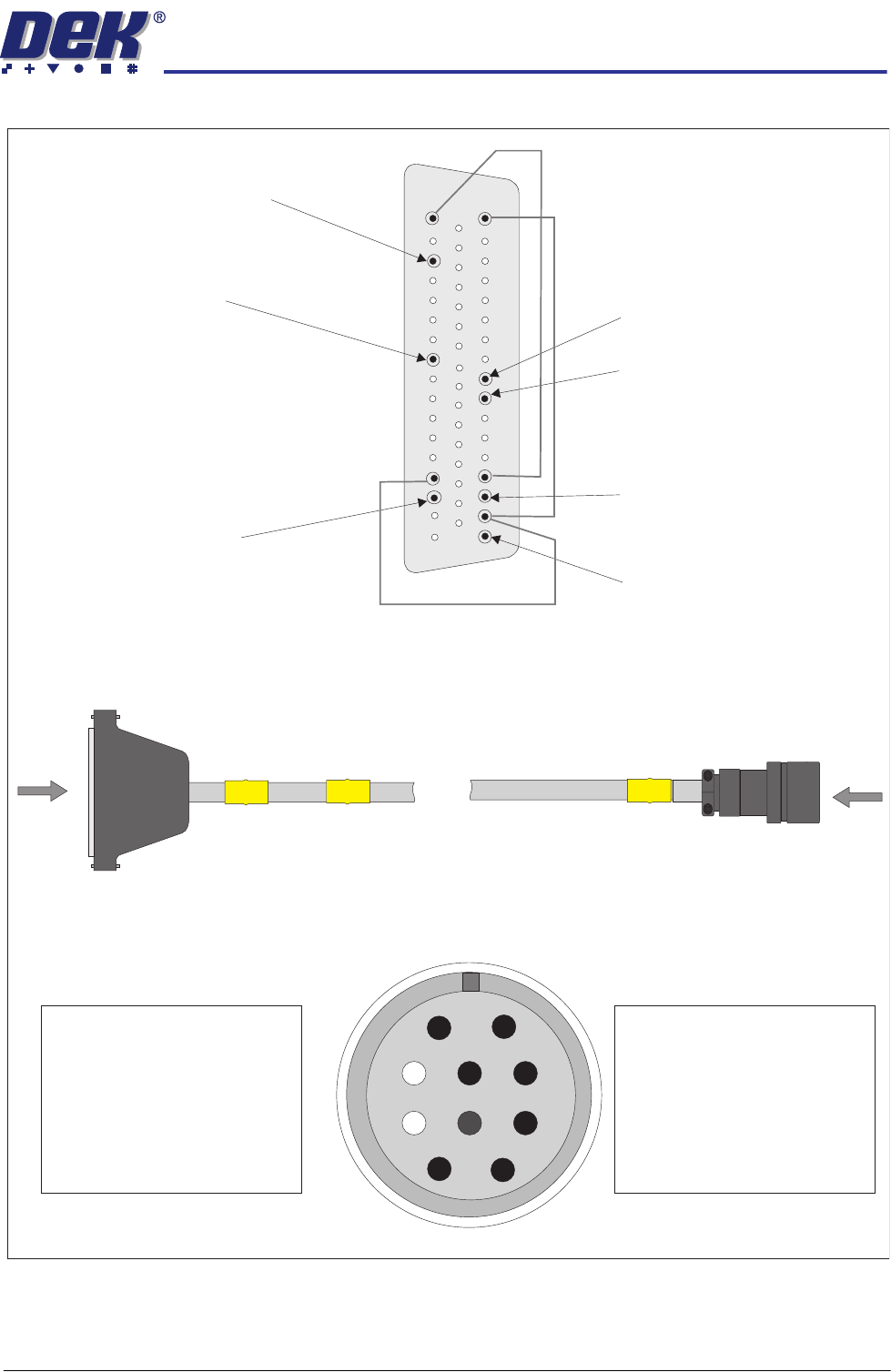

Sanyo Downline Interface Cable
View on Arrow B
View on Arrow A
Pin 15 - VLED Out (+24V)
OV
OV
OV
Pin 10 - Run Signal
Pin 3 - Input Machine
Ready Signal
Pin 42 - PCB Requirement Signal
Pin 34 - Input Machine PCB
Transfer Signal
Pin 36 - Input Machine Run Signal
Pin 41 - VLED In (+24V)
33
50
1
18
37
17
1
2
3
4
7
8
9
10
5
6
B
Sanyo Downline Plug
PLB
A
PLA
DEK Machine
50 Way D-type
Pin 1 - Run Signal
Pin 2 - PCB Requirement Signal
Pin 3 - Input Machine Run Signal
Pin 4 - Input Machine PCB
Transfer Signal
Pin 5 - Input Machine Ready
Signal
Pin 8 - VLED In (+24V)
Pin 9 - VLED Out (+24V)
Pin 10 - GND
