3.8.1.3 Design of the SIPLACE SmartFeeder X

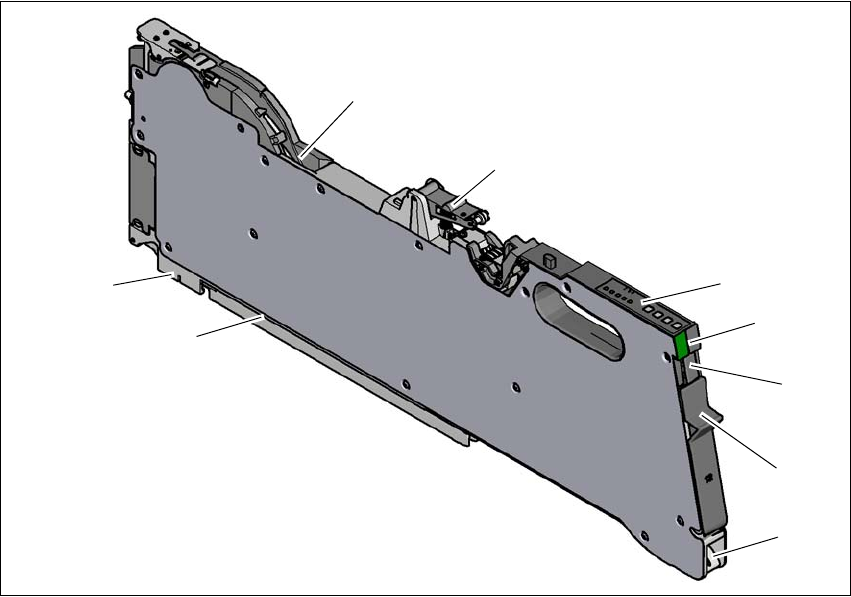

The following diagram shows the design of the SIPLACE SmartFeeder X.
3
Fig. 3.8 - 1 SIPLACE SmartFeeder X

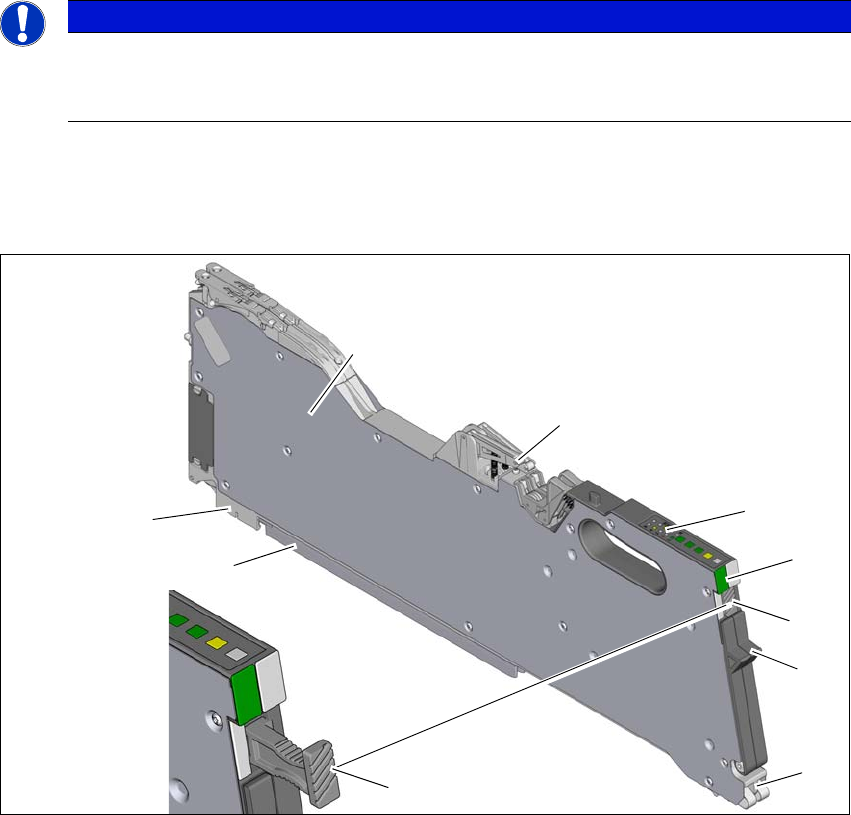

(1) Entry to the tape guide channel with tape spring
(2) Flap on cover foil container
(3) Removal handle, engaged
(4) Status display
(5) Operating panel - LED display
(6) Foil rocker
(7) Tape guide channel outlet
(8) Front slider guide
(9) Back slider guide
(1)
(2)
(3)
(4)
(5)
(6)
(8)
(9)
(7)
User manual SIPLACE TX-Series 3 Technical data and assemblies
From software version 713.0 Edition 01/2020 3.8 SIPLACE tape feeder modules for SIPLACE TX-Series
157
3.8.1.4 Design of the SIPLACE SmartFeeder Xi
3
The following diagram shows the design of the SIPLACE SmartFeeder Xi, using the example of
the SIPLACE SmartFeeder 2 x 8 mm Xi. The SIPLACE SmartFeeder Xi can be recognized by its
slanted and grooved surface on the removal handle.
3
Fig. 3.8 - 2 SIPLACE SmartFeeder 2 x 8 mm Xi
(1) Entry to the tape guide channel with tape spring
(2) Flap on cover foil container
(3) Removal handle, docked (grooved surface)
(4) Status display
(5) Operating panel - LED display
(6) Foil rocker
(7) Tape guide channel outlet
(8) Front slider guide
(9) Back slider guide
PLEASE NOTE
Maximum speed with SIPLACE SmartFeeder Xi.
The SpeedStar C&P20 P2 can only reach maximum speed in conjunction with the SI-
PLACE SmartFeeder Xi.
(1)
(2)
(3)
(4)
(5)
(6)
(8)
(9)
(7)
(3)
3 Technical data and assemblies User manual SIPLACE TX-Series
3.8 SIPLACE tape feeder modules for SIPLACE TX-Series From software version 713.0 Edition 01/2020
158
3.8.1.5 Technical data for SIPLACE tape feeder modules
In general, the SIPLACE tape feeder modules have a length of approx. 587 mm and a height of
approx. 200 mm. The technical data are listed in the following table.
The maximum height of the interference contours above the upper edge of the tape pocket is ≤ 3
mm. As the SIPLACE tape feeder modules do not show any flaps projecting upwards and are also
fixed to the changeover tables, the risk of a head crash is reduced to a minimum.
Tape feeder module L x H
[mm]
Width
[mm]
Location
occupied
Transport
increment
[mm]
Max. tape
height
[mm]
*a
SIPLACE SmartFeeder 4 mm Xi 587x200 10,8 1 1 1,1
With splice sensor
SIPLACE SmartFeeder 8 mm X 587x200 10,8 1 1/2/4/8 3,5
With splice sensor
SIPLACE SmartFeeder 8 mm Xi 587x200 10,8 1 1/2/4/8 3,5
With splice sensor
SIPLACE SmartFeeder 2x8 mm Xi 587x200 22,6 2 1/2/4/8 3,5
With splice sensor
SIPLACE SmartFeeder 12 mm X 587x200 22,6 24 - 16
*b
6,5
With splice sensor
SIPLACE SmartFeeder 16 mm X 587x200 22,6 2 4 - 20
*b
25
With splice sensor
SIPLACE SmartFeeder 24 mm X
587x200 34,4 3 4 - 32
*b
25
With splice sensor
SIPLACE SmartFeeder 32 mm Xx
587x200 46,2 4 4 - 40
*b
25
With splice sensor
SIPLACE SmartFeeder 44 mm X
587x200 58,0 5 4 - 52
*b
25
With splice sensor
SIPLACE SmartFeeder 56 mm X
587x200 69,8 64 - 64
*b
25
With splice sensor
SIPLACE SmartFeeder 72 mm X
587x200 81,6 7 4 - 80
*b
25
With splice sensor
SIPLACE SmartFeeder 88 mm X
587x200 105,2 9 4 - 96
*b
25
With splice sensor
SIPLACE SmartFeeder 104 mm X
587x200 128,9 11 4 - 96
*b
25
With splice sensor
Tape reels 178 to max. 483 mm diameter (7“ - 19“)
Changeover time ≤ 8 s
*)a For 8 mm paper tapes, the paper thickness must not exceed 1.6 mm. The length of a component pocket in the
direction of tape travel may not exceed 51 mm.
*)b In 4mm steps
