3 Technical data and assemblies User manual SIPLACE TX-Series
3.9 Component trolley From software version 713.0 Edition 01/2020
172
3.9.4 SIPLACE TX-Series changeover table
The front slider guides of the feeder modules are placed on the insertion aid. As it is pushed in,
the guides of the feeder module slide on the guide profile as far as the stop bar. A centering hole
on the stop bar holds the "front" centering pin of the X feeder module. At the same time, the locking
latch of the changeover table latches onto the locking roller of the feeder module. The "back" cen-
tering pin on the top of the feeder module is held by the recess in the centering bar.
3
Fig. 3.9 - 4 Changeover table, SIPLACE TX-Series, rear view
(1) Insertion aid
(2) Guide profile (Ω profile)
(3) Centering bar for holding the "back" centering pin for X feeder modules
(4) Centering holes
(5) Stop bar
(1)
(2)
(3)
(4)
(5)
User manual SIPLACE TX-Series 3 Technical data and assemblies
From software version 713.0 Edition 01/2020 3.9 Component trolley
173
3

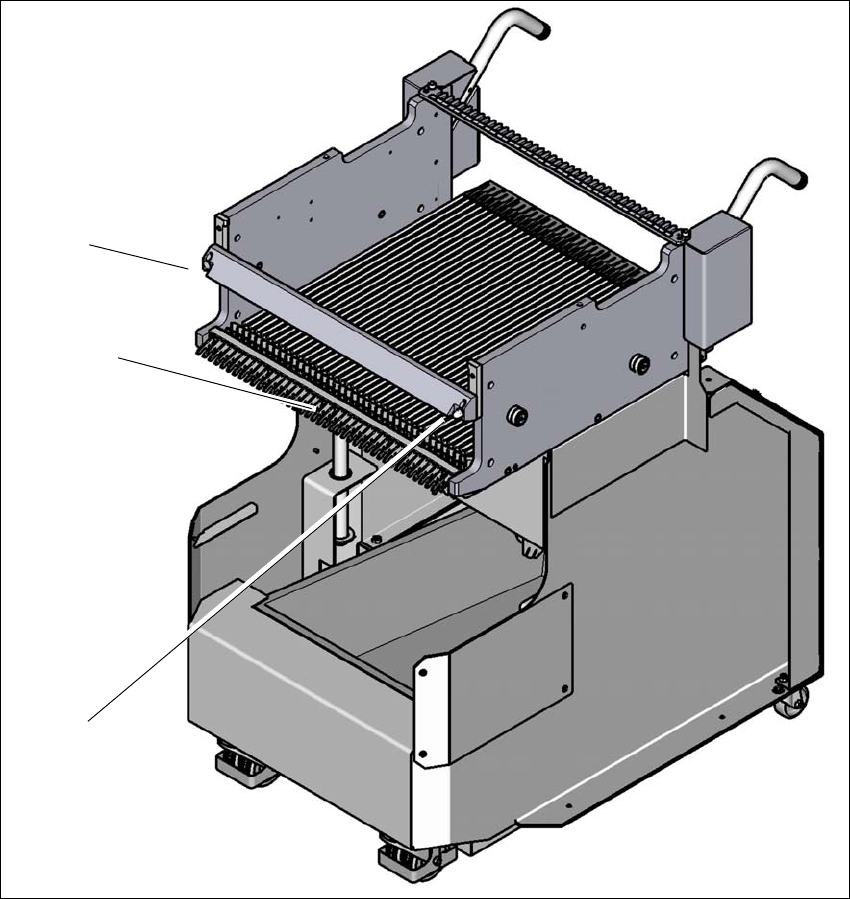

Fig. 3.9 - 5 Changeover table, SIPLACE TX-Series, front view
(1) Centering hole on the changeover table
(2) Locking latches
(3) Centering pin on the changeover table
(1)
(2)
(3)
3 Technical data and assemblies User manual SIPLACE TX-Series
3.9 Component trolley From software version 713.0 Edition 01/2020
174
3.9.5 SIPLACE TX-Series tape container
3.9.5.1 Description
The tape container can hold reels with a diameter of 13" and 7" (option).
3

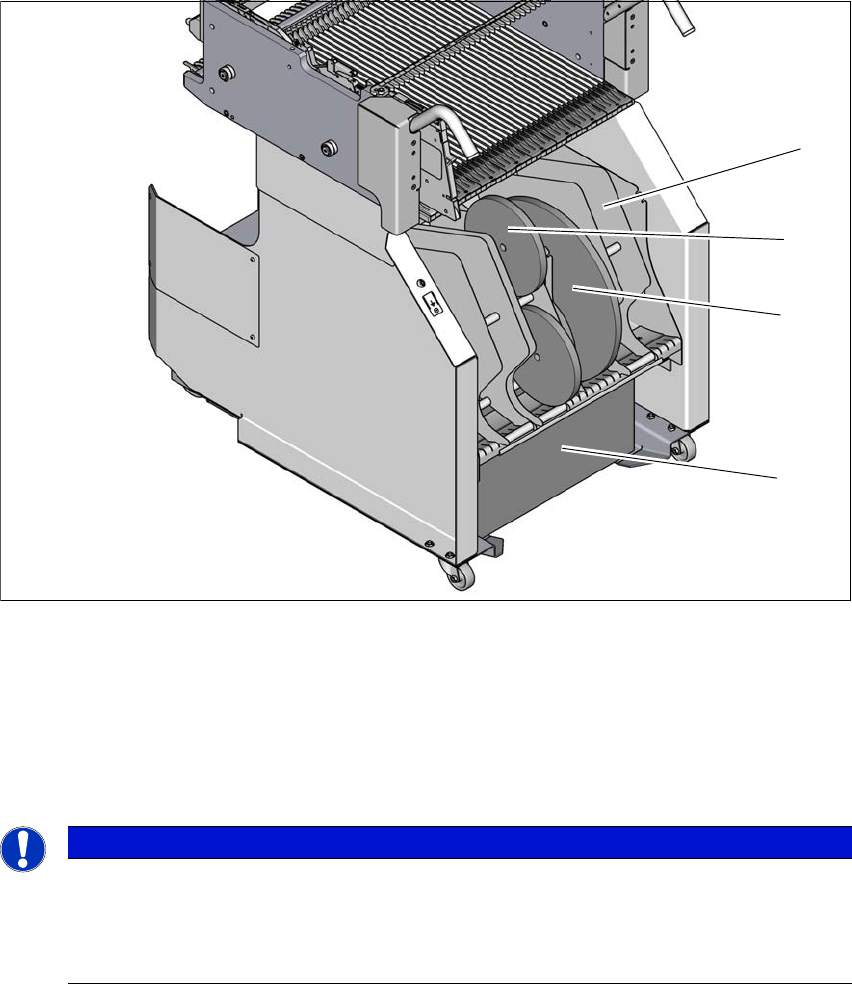

Fig. 3.9 - 6 SIPLACE TX-Series component trolley, with tape container
(1) Tape container with separating plate
(2) Tape reel 7" (optional)
(3) Tape reel 13"
(4) Waste tape container
3
PLEASE NOTE
Using spindles
TX component trolleys do not generally need spindles.
Use spindles if the error message "Timeout" appears frequently on the X feeder
module.
(3)
(2)
(4)
(1)
