User manual SIPLACE TX-Series 4 Setting up and commissioning From software version 713.0 Edition 01/2020 4.2 Configuration whe n delivered 181 4.2.5.2 Weight of m achine when ready for disp atch The following table conta…
4 Setting up and commissioning User manual SIPLACE TX-Series
4.2 Configuration when delivered From software version 713.0 Edition 01/2020
180
4.2.5 Transporting the placement machine in the shipping crate or on the pallet
4
Fig. 4.2 - 2 Transportation crate/pallet - attachment points for transportation with the fork-lift
The transport crate or pallet should preferably only be lifted at the side (item A in fig. 4.2 - 2, page
180
) on which the output end of the machine is located.
Transport the SIPLACE TX on the pallet or in the crate as near as possible to the final site of
use.
4.2.5.1 Shipping packaging dimensions
The dimensions of the pallets and wooden crates are listed in the following table:
4
(A)
1
1
Placement machine (L x W x H)
Pallet 2670mm x 2100mm
Wooden crate 2670 mm x 2100 mm x 1850
User manual SIPLACE TX-Series 4 Setting up and commissioning
From software version 713.0 Edition 01/2020 4.2 Configuration when delivered
181
4.2.5.2 Weight of machine when ready for dispatch
The following table contains the weights of the placement machines prepared for dispatch, includ-
ing packaging.
4
4.2.5.3 Transportation equipment for transporting the placement machine in the packaging
Use a fork-lift truck with the following specification to carry the placement machine:
4
Placement machine Dispatch within Europe Dispatch overseas
SIPLACE TX with two component trol-
leys
2350 kg 2600 kg
Fork length Min. 1800 mm
Lifting power Min. 3000 kg
4 Setting up and commissioning User manual SIPLACE TX-Series
4.2 Configuration when delivered From software version 713.0 Edition 01/2020
182
4.2.6 Lifting the placement machine off the pallet
4

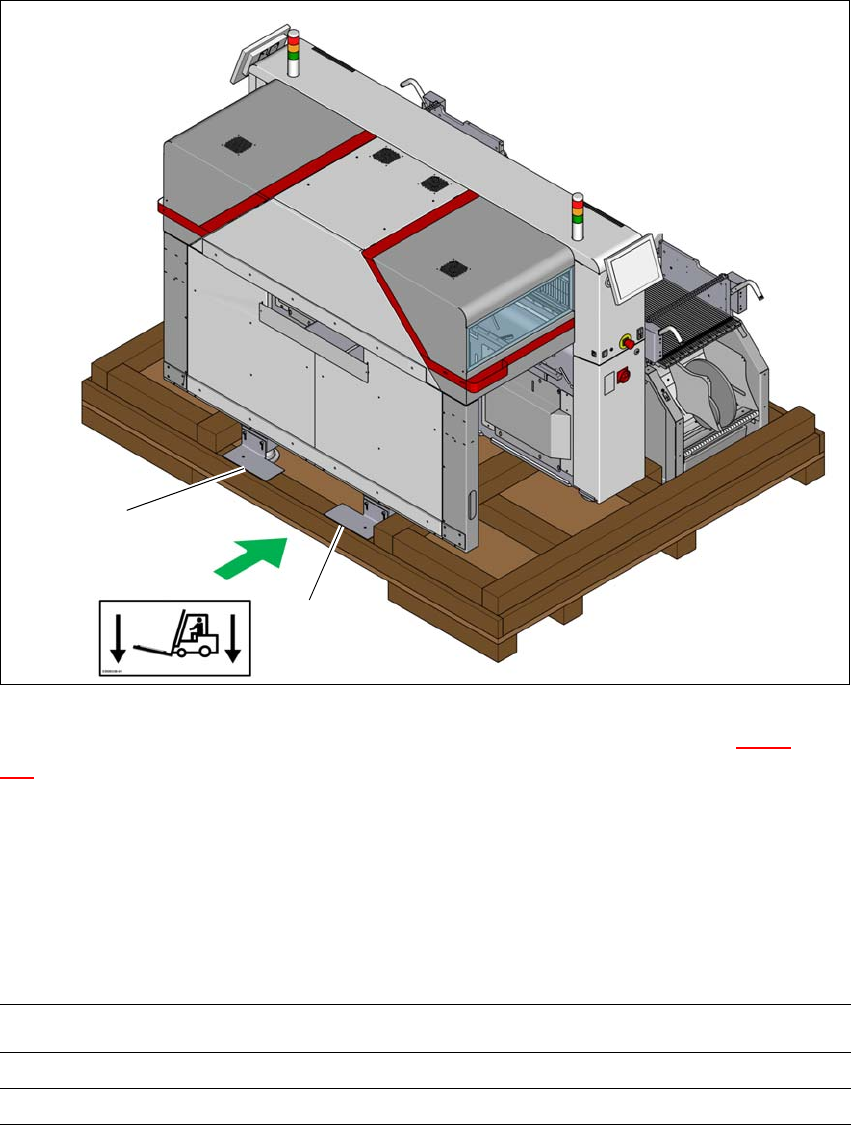

Fig. 4.2 - 3 Contact points for transportation with the fork-lift
(1) Shipping braces with steel spacer
During transportation, always follow the safety instructions in section 4.1, page 175).
Loosen the two shipping braces (1) from the base of the crate or from the pallet. The two
braces and the steel spacers remain fitted to the placement machine.
Loosen and remove the shipping braces on the opposite side (item 2 in fig. 4.2 - 1, page 179).
The placement machine may ONLY be lifted with a fork-lift on the side (item A in fig. 4.2 - 3,
page 182
) on which the output end of the machine is located.
Position the fork-lift at cross-angles to the direction of conveyor transport (at the output end).
Open the forks until the forks are between the two placement machine feet and the contact
surfaces of the placement machine lie evenly on the forks.
(A)
1
1
