4 Setting up and commissioning User manual SIPLACE TX-Series

4.7 Commissioning the placement machine From software version 713.0 Edition 01/2020

218

4.7 Commissioning the placement machine

4.7.1 Commissioning the placement machine at the customer's premises

 Check all modules for correct seating.

 Remove the shipping braces (see section 4.6, page 216).

 Wipe the linear guide rails of the X/Y axis with a lint-free cloth. Do not use any solvents (see

section 4.6

, page 216).

 Switch on the placement machine and perform a reference run.

 For SIPLACE TX micron: Perform an ACT as accuracy check, in accordance with ASM guide-

lines. See also the user manual for the ACT (Accuracy Checking Tool) - item no. 00196351-

xx.

 Load a recipe in the computer and test it.

 Check the machine zero point after a period of warming up of 3 - 4 h.

 Get the customer's operating personnel to equip the feeder modules according to the cus-

tomer's placement program.

 Instruct them in handling the feeder modules using the JobGuide.

 Check all customer-specific installed options (in particular software) for good functioning and

order any necessary spare parts using the order form or by fax.

4.7.2 Checking and setting the protective cover switch

 Check the function of the protective cover switch (see 2.4.1 on page 63).

 Adjust the protective cover switch if necessary (see service manual).

User manual SIPLACE TX-Series 4 Setting up and commissioning

From software version 713.0 Edition 01/2020 4.7 Commissioning the placement machine

219

4.7.2.1 Performing initial calibration

 Click on "Service Tools" in the toolbar.

 Click on the Automatic calibration button.

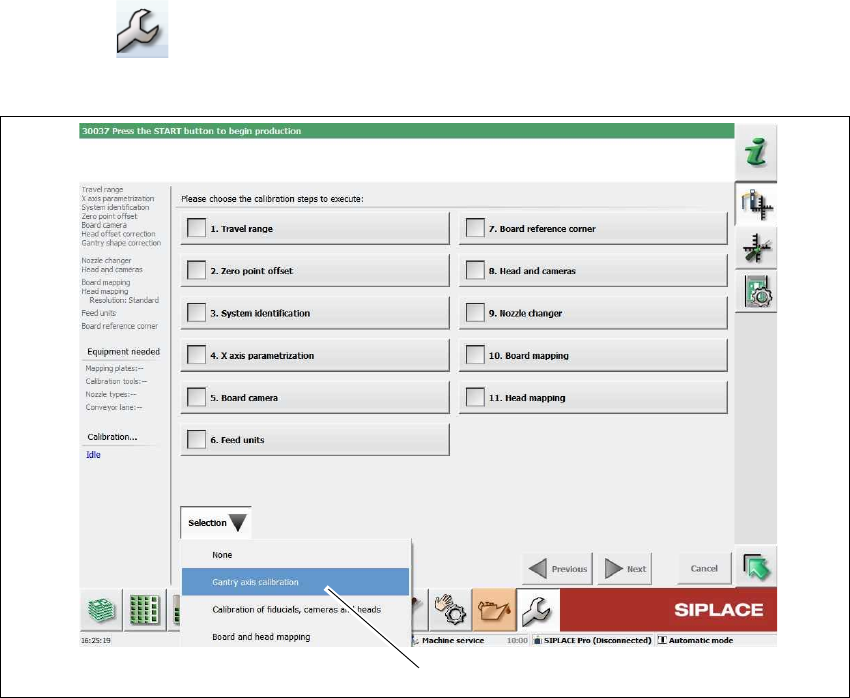

Fig. 4.7 - 1 Service tools => automatic calibration

 Select Selection => Gantry axis calibration (1).

(1)

4 Setting up and commissioning User manual SIPLACE TX-Series

4.7 Commissioning the placement machine From software version 713.0 Edition 01/2020

220

Fig. 4.7 - 2 Service tools => automatic calibration => calibrating the gantry axes

The following calibration steps are enabled:

– 1. Travel range

– 3. System identification

– 4. Parameterization X axis

 Click on Next (1).

The calibration must be completed without errors.

4.7.3 Instructing the customer's personnel

 Explain all customer-specific installed options, in particular software / software compatibility.

 Explain the programming of SIPLACE Pro editors.

 Instruct the operators and line engineers in using the station software.

 Explain about password protection.

 Instruct the customer's personnel according to the user manual and the preventive mainte-

nance.

(1)
