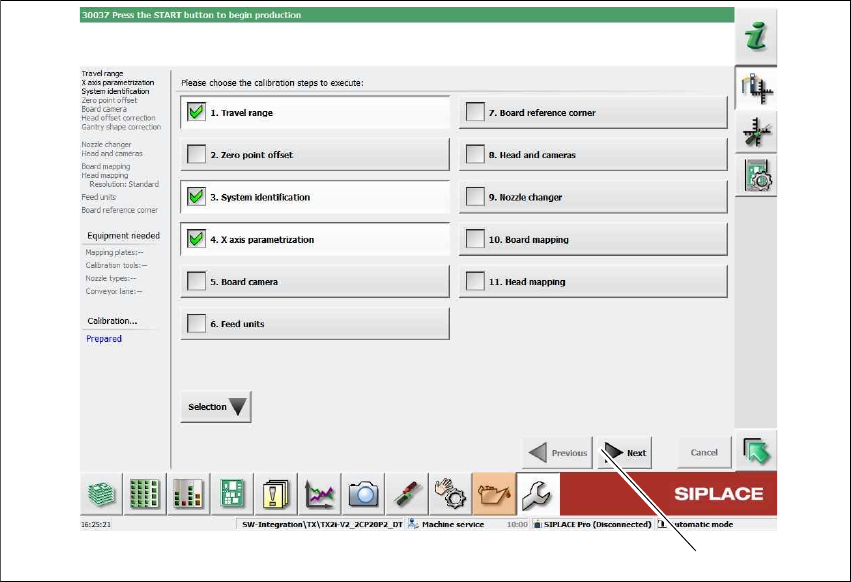

Fig. 4.7 - 2 Service tools => automatic calibration => calibrating the gantry axes

The following calibration steps are enabled:

– 1. Travel range

– 3. System identification

– 4. Parameterization X axis

 Click on Next (1).

The calibration must be completed without errors.

4.7.3 Instructing the customer's personnel

 Explain all customer-specific installed options, in particular software / software compatibility.

 Explain the programming of SIPLACE Pro editors.

 Instruct the operators and line engineers in using the station software.

 Explain about password protection.

 Instruct the customer's personnel according to the user manual and the preventive mainte-

nance.

(1)

User manual SIPLACE TX-Series 4 Setting up and commissioning

From software version 713.0 Edition 01/2020 4.7 Commissioning the placement machine

221

4.7.4 A test run or starting production

 Test the line using the test PCB or a PCB provided by the customer.

 Record the customer product and performance data, prepare the data and document the data

in the installation report.

 Secure the data and give the customer security copies.
