5.8 Shift changeover
5.8.1 Shift changeover tasks
Splice the tapes early. The feeder modules do not have to be refilled as soon as the new shift
starts. This minimizes the downtime.
At the shift change, pass important information on to the next operator. This includes, for in-
stance, changes to the placement program. Also read through the list of the descriptions of
the steps to take in section 5
, page 269.
Carry out a setup check.
Make sure that the feeder modules are equipped with the correct components, that they are
at the correct locations in the component trolley and that the conveyor increment is set cor-
rectly.
Clean the following line assemblies:
Empty the reject bin and carefully vacuum the area around the reject bin.
Carefully vacuum the nozzle changer, feeder modules and the component trolley.
Empty the waste tape container. Follow the safety instructions given in section 5.8.2, page
252
.
5 Tasks at the placement machine User manual SIPLACE TX-Series
5.8 Shift changeover From software version 713.0 Edition 01/2020
252
5.8.2 Safety instructions for emptying the waste tape container
5

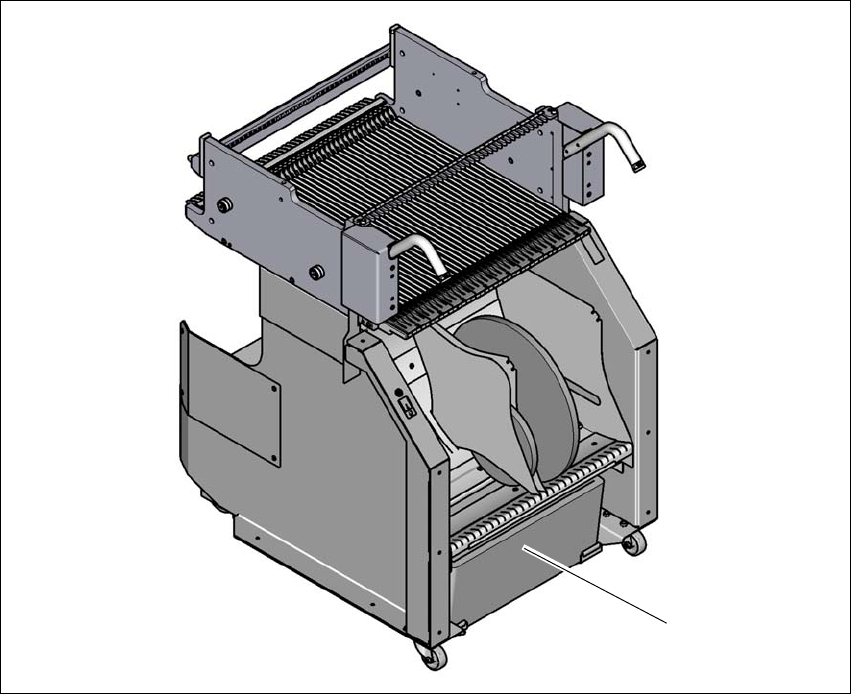

Fig. 5.8 - 1 Safety instructions for emptying the waste tape container
(1) Waste tape container
The waste tape container must be pulled out of the component trolley for emptying. There is a risk
of catching your thumbs as you do so.
To avoid this risk, take hold of the underside of the waste tape container.
(1)
User manual SIPLACE TX-Series 5 Tasks at the placement machine
From software version 713.0 Edition 01/2020 5.9 Carrying out a sight check
253
5.9 Carrying out a sight check
5.9.1 Checking the X feeder modules
5

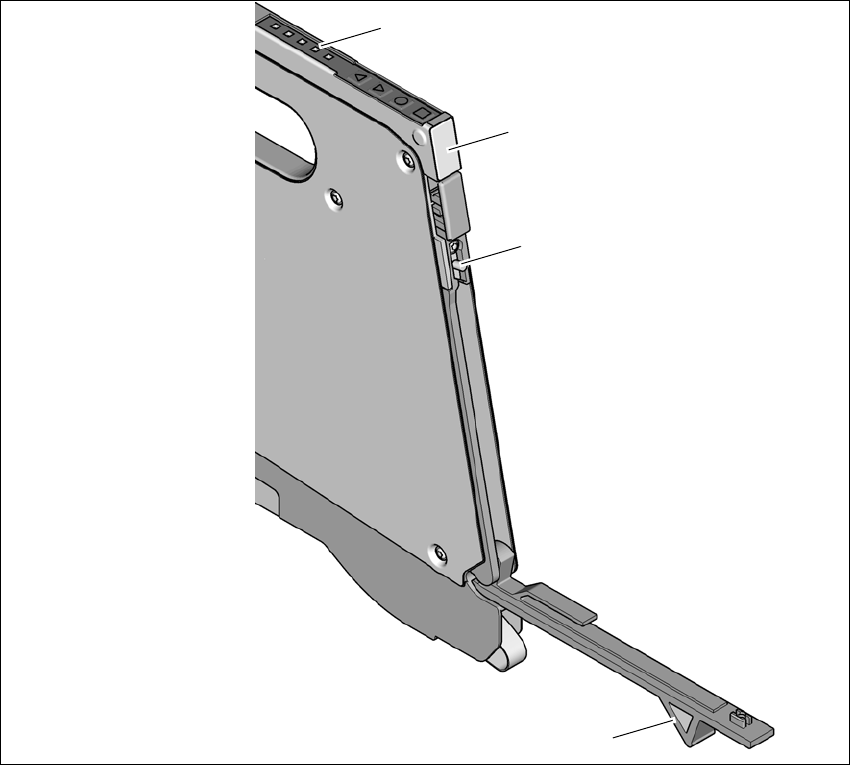

Fig. 5.9 - 1 Checking the X feeder modules
(1) Flap
(2) Blade
(3) Status display
(4) LED display
5
Check to see whether the tape foil removal container for the X tape feeder module is full.
Open the flap (item 1). Pull out the cover foil and cut it off with the blade (item 2).
(1)
(2)
(3)
(4)
