5.11 Observing displays on the feeder module
5
Fig. 5.11 - 1 SIPLACE SmartFeeder X
(1) Operating panel - LED display
(2) Status display
(2)
(1)
5 Tasks at the placement machine User manual SIPLACE TX-Series
5.11 Observing displays on the feeder module From software version 713.0 Edition 01/2020
268
5.11.1 Operating panel - LED display
The SIPLACE SmartFeeder have a multicolored status display for each track and LED displays,
to indicate the operating states.
5

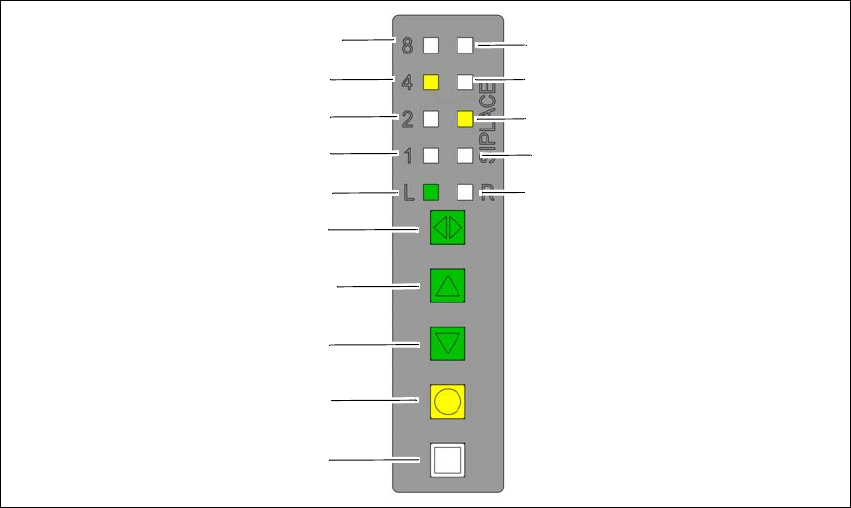

Fig. 5.11 - 2 Buttons, LED and status displays: Example of SIPLACE SmartFeeder 2x8 mm
(1) SET button
(2) FOIL button
(3) BACK button
(4) FORWARD button
(5) Track change button for switching between right and left
(6) LED L left track active
(7) LED 1 mm increment for left track
(8) LED 2 mm increment for left track
(9) LED 4 mm increment for left track
(10) LED 8 mm increment for left track
(11) LED R right track active
(12) LED 1 mm increment for right track
(13) LED 2 mm increment for right track
(14) LED 4 mm increment for right track
(15) LED 8 mm increment for right track
(8)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(9)
(10)
(15)
(14)
(13)
(12)
(11)
User manual SIPLACE TX-Series 5 Tasks at the placement machine
From software version 713.0 Edition 01/2020 5.11 Observing displays on the feeder module
269
5.11.2 Status display
–Green:
The feeder module is on standby and is contained in the current setup.
– Orange:
A warning is being signalized.
–Red:
A malfunction has occurred.
–Off:
The feeder module is not in the current setup.
5
5
5
PLEASE NOTE
"LED off" only for feeder modules contained in the setup
The placement machine controller switches off the status display of any feeder modules
not included in the setup.
The "LED off" status only occurs when the programming system has preset a job on the
line. This takes some of the work away from the operator since he only has to watch
those feeder modules that are contained in the setup.
PLEASE NOTE
Setup procedure: Activation of LED for each feeder module
For the actual setup process - no setup information at the station, no job sent from SI-
PLACE Pro to the station/line - the LED on each feeder module is activated after the set-
up has been made. The operator is thus informed whether everything is OK.
