User manual SIPLACE TX-Series 1 Introduction From software version 713.0 Edition 01/2020 1.4 SIPLACE TX micron 27 1.4.2 Overview 1 Fig. 1.4 - 1 V acu um tool on the SIPLACE TX micron - overview (1) V acuu m tool at locat…
1 Introduction User manual SIPLACE TX-Series
1.4 SIPLACE TX micron From software version 713.0 Edition 01/2020
26
1.4.1.1 Accuracy class 25 µm / 20 µm
The SIPLACE TX 2 micron and SIPLACE TX 2i micron placement machines facilitate placement
accuracy of 20 µm or 25 µm at 3
σ. The following components from the SIPLACE TX micron are
used:
– SIPLACE SpeedStar C&P20 M2
– SIPLACE MultiStar CPP M
– Highly rigid board conveyor
– High-resolution glass scales on the gantry and Y axis
– Additional fiducial rail in X direction for cyclical calibration of the placement machine
– SIPLACE Pro setting in the Component Shape Editor (placement accuracy => high =>
20 µm or 25 µm).
1.4.1.2 Accuracy class 15 µm
The SIPLACE TX2i micron 15µm placement machine facilitates placement accuracy of up to 15
µm at 3
σ. The following components and settings from the SIPLACE TX micron are used:
– SIPLACE SpeedStar C&P20 M2
– Highly rigid board conveyor
– High-resolution glass scales on the gantry and Y axis
– Additional fiducial rail in X direction for cyclical calibration of the placement machine
– SIPLACE Pro setting in the Component Shape Editor (placement accuracy => high =>
15 µm).
– Conveyor mode I-Placement
– Mechanical stabilization of board with additional vacuum tool and fiducial rail in the Y direc-
tion.
1
PLEASE NOTE
Vacuum tool with fiducial rail
The vacuum tool with fiducial rail must be produced according to ASM specifications.
User manual SIPLACE TX-Series 1 Introduction
From software version 713.0 Edition 01/2020 1.4 SIPLACE TX micron
27
1.4.2 Overview
1

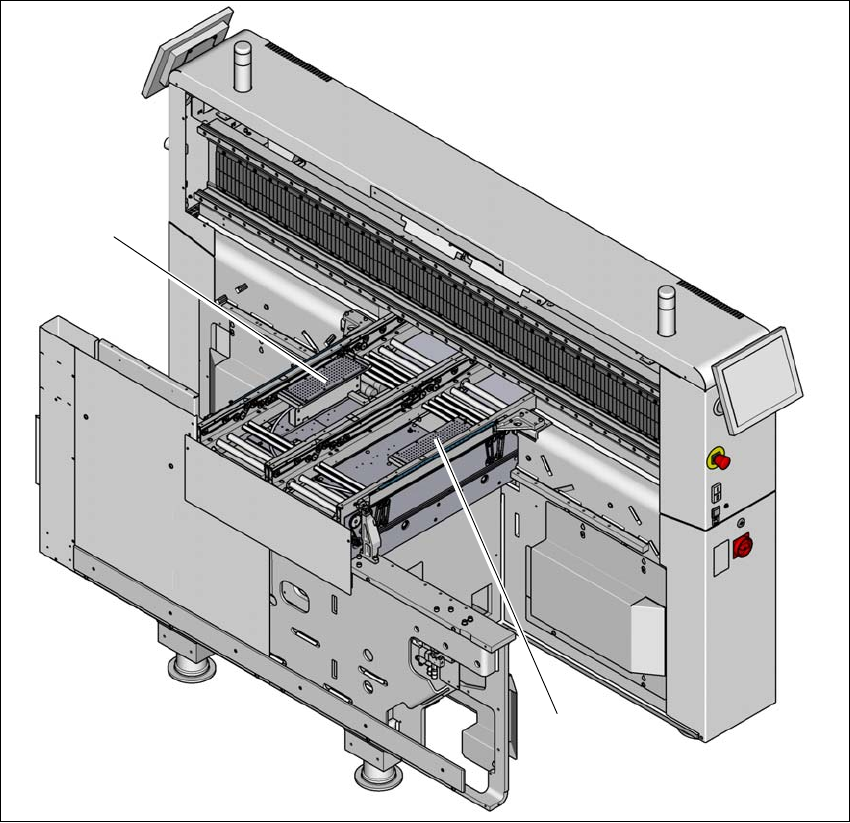

Fig. 1.4 - 1 Vacuum tool on the SIPLACE TX micron - overview
(1) Vacuum tool at location 1
(2) Vacuum tool at location 2
(2)
(1)
1 Introduction User manual SIPLACE TX-Series
1.4 SIPLACE TX micron From software version 713.0 Edition 01/2020
28
1

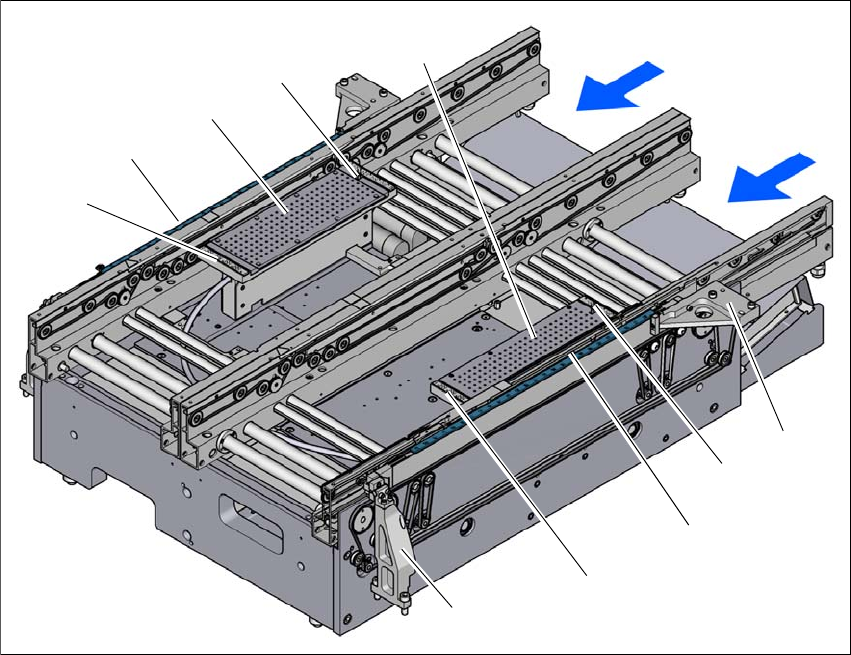

Fig. 1.4 - 2 Vacuum tool with additional fiducial rail on dual conveyor
(1) Additional fiducial rail for lane 1 in X direction
(2) Vacuum tool on lane 1
(3) Vacuum tool on lane 2
(4) Additional fiducial rail for lane 2 in X direction
(5) Fixture of additional fiducial rail to machine frame
(6) Fiducial rail on the vacuum tool in the Y direction
(2)
(4)
(3)
(1)
(5)
(5)
(T2)
(T1)
(6)
(6)
(6)
(6)
