User manual SIPLACE TX-Series 6 Station extensions From software version 713.0 Edition 01/2020 6.1 Nozzle changer 285 6.1.3.2 Nozzle magazine with 12 garages for 20xx nozzles 6 Fig. 6.1 - 6 Nozzle magazine for 20xx nozzl…
6 Station extensions User manual SIPLACE TX-Series
6.1 Nozzle changer From software version 713.0 Edition 01/2020
284
6.1.3 Nozzle Changer for the SIPLACE MultiStar CPP / CPP M
6.1.3.1 Nozzle changer for the CPP with 4 magazines
Item no. 00119742-xx Nozzle changer for CPP - short
or 6
Item no. 03103649-xx Nozzle changer basic assembly CP/all - short
6
Fig. 6.1 - 5 Nozzle changer for the SIPLACE MultiStar with 4 magazines
(1) Nozzle magazine for 20xx nozzles
(2) Nozzle magazine for 28xx nozzles
This nozzle changer accommodates 4 magazines. The magazines are fitted onto a common car-
rier pate, are fixed with two cylinder pins and fastened with 4 push buttons. The exact position is
determined with two fiducials on each magazine. The correct seat of the magazines on the carrier
plate is monitored by microswitches, to prevent a collision of the placement head with any maga-
zines projecting upwards. All 4 magazine locations must be filled since the safety circuit stops the
placement machine in response to missing magazines or magazines that are not seated correctly.
The nozzle changer recognizes whether the nozzle magazine is for 20xx nozzles or for 28xx noz-
zles by the nozzle magazine code.
At the nozzle station, components can be rejected with an air blast by the nozzles. Nozzles can
be stripped off there and disposed of in the reject bin.
(2)
(1)
User manual SIPLACE TX-Series 6 Station extensions
From software version 713.0 Edition 01/2020 6.1 Nozzle changer
285
6.1.3.2 Nozzle magazine with 12 garages for 20xx nozzles
6
Fig. 6.1 - 6 Nozzle magazine for 20xx nozzles with 12 garages - locking plate open
(1) 12 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(3) Locking plate
6 Station extensions User manual SIPLACE TX-Series
6.1 Nozzle changer From software version 713.0 Edition 01/2020
286
6.1.3.3 Nozzle magazine with 20 garages for 20xx nozzles
6

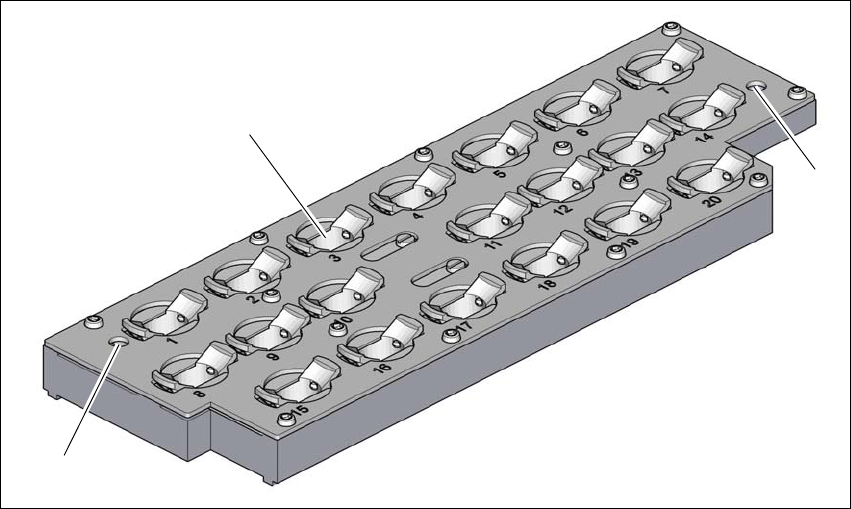

Fig. 6.1 - 7 Nozzle magazine for 20xx nozzles with 20 garages - locking plate open
(1) 20 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(2)
(1)
(2)
