1 Introduction User manual SIPLACE TX-Series 1.5 Machine description From software version 713.0 Edition 01/20 20 30 1.5 Machine description 1.5.1 Placement machine serial number The serial number of the placeme nt machi…
User manual SIPLACE TX-Series 1 Introduction
From software version 713.0 Edition 01/2020 1.4 SIPLACE TX micron
29
1.4.3 Placement Head Configurations
1
CPP M_H = Multistar CPP in high assembly position
CPP M_L = Multistar CPP in low assembly position
Placement
machine
Placement head Standard cameras Options
SIPLACE
TX2i micron
C&P20 M2 / C&P20 M2 Component camera, type
48
– Component camera, type 49
CPP M_L / CPP M_L
Component camera, type
45
– Component camera, type 30
SIPLACE
TX2 micron
C&P20 M2 / C&P20 M2 Component camera, type
48
– Component camera, type 49
CPP M_L / CPP M_L
Component camera, type
45
– Component camera, type 30
CPP M_H / CPP M_H
Component camera, type
45
– Component camera, type 30
1 Introduction User manual SIPLACE TX-Series
1.5 Machine description From software version 713.0 Edition 01/2020
30
1.5 Machine description
1.5.1 Placement machine serial number
The serial number of the placement machine can be found on the typeplate, on the inside of the
machine frame at location 1.
1

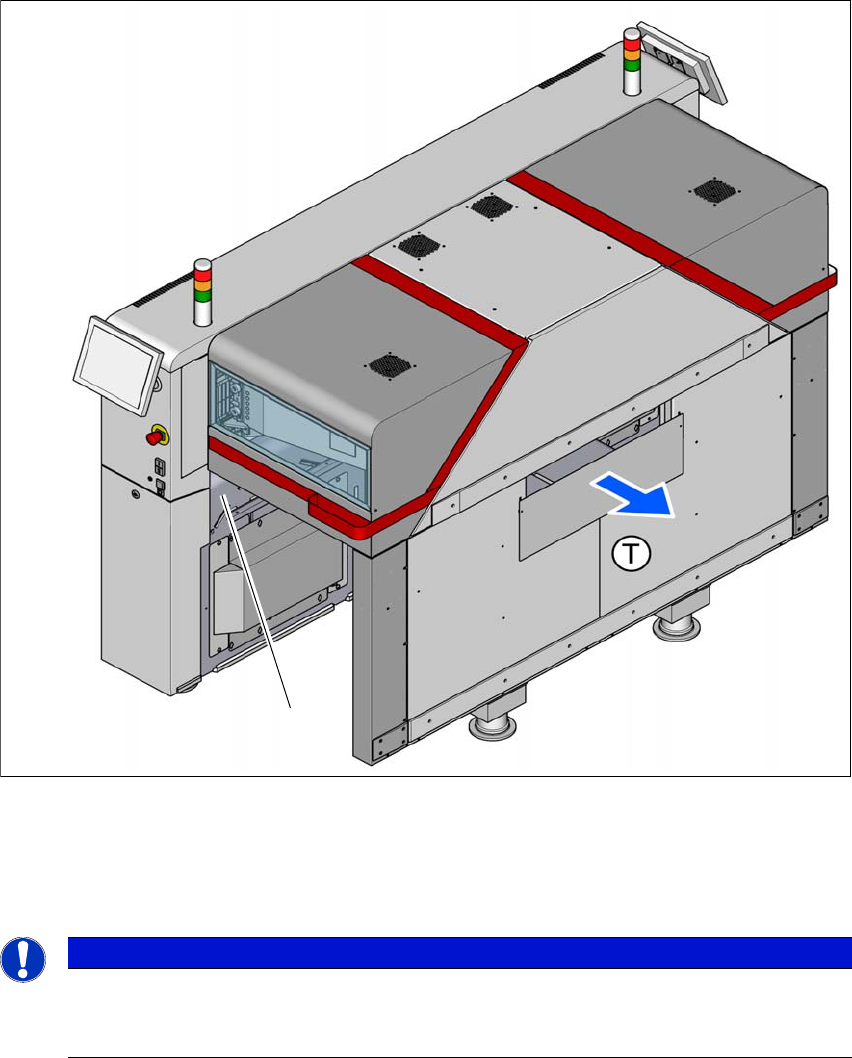

Fig. 1.5 - 1 Position of typeplate with serial number
(T) Direction of travel
(1) Typeplate
1
PLEASE NOTE
Electrical ratings on the typeplate
The electrical ratings on the typeplate are maximum values. The electrical power actually
consumed depends on the machine configuration and the placement program.
(1)
User manual SIPLACE TX-Series 1 Introduction
From software version 713.0 Edition 01/2020 1.5 Machine description
31
1.5.2 EC Declaration of conformity
The product described in this instruction manual is in accordance with the regulations and stan-
dards of the respective EC Declaration of Conformity. See also section 8.1
, on page 319).
1.5.3 Use as prescribed
The product may only be used for the areas of application specified in the catalogues and techni-
cal descriptions i.e. for the placement of SMD components and may only be used together with
the third party devices and components recommended or approved by ASM Assembly Systems
GmbH & Co. KG. Use for a different or extended purpose is not prescribed.
In the case of incorrect usage, ASM Assembly Systems GmbH & Co. KG will not assume liability
for any damage which occurs and will not guarantee the correct and proper function of machine
components.
Use as prescribed also includes compliance with all the instructions in the user manual.
For the product to operate correctly and reliably, it must have been transported, stored, erected
and assembled correctly and must be operated and maintained with care.
