User manual SIPLACE TX-Series 2 Operational safety From software version 713.0 Edition 01/2020 2.1 Safety instructio ns 41 2.1.5 Safety instructions on permanent magnets Powerful permanent magn ets are us ed for the line…
2 Operational safety User manual SIPLACE TX-Series
2.1 Safety instructions From software version 713.0 Edition 01/2020
40
2
2.1.3.3 Safety of plant and equipment
Never make changes, however minor, unless you are totally aware of the effect they will have
on the overall functioning of the system.
The stations must always be set up, retooled and maintained by appropriately trained person-
nel.
Do not make modifications to the safety equipment. In particular, NEVER deactivate circuit-
breakers or remove safety devices.
2.1.4 Safety instructions for laser units
Permission to operate components that are classified as lasers is withdrawn if
– Mechanical damage to the unit is observed, or
– The assembly mechanics, lenses or electrics have been manipulated. Even damaged or
missing screw locking paint on laser components (e.g. cover plates, fasteners, adjusting
potentiometer) counts as work.
– Only ASM Assembly Systems GmbH&Co.KG service engineers or the machine owner's
service engineers, who have been trained by ASM, may replace laser components.
– Repairs to laser assemblies may only be performed by ASM Assembly Systems
GmbH&Co.KG at their factory.
WARNING
Dangerous voltage levels!
The placement machine is powered by electricity. Certain parts are still live when the
main power switch is off and the mains plug has been disconnected. Switch off the main
switch, secure to prevent switching on, disconnect the mains plug and wait for 5 minutes.
There is a risk of death, severe injury and/or considerable damage to equipment if these
instructions are not followed.
Switch off at the main switch and disconnect the placement machine from the power
supply before carrying out any work on live components.
Test to check that there is no remaining voltage supply.
Lock the machine as described in section 2.8, page 100.
User manual SIPLACE TX-Series 2 Operational safety
From software version 713.0 Edition 01/2020 2.1 Safety instructions
41
2.1.5 Safety instructions on permanent magnets
Powerful permanent magnets are used for the linear motors of the X and Y axes.
2
2
2
DANGER
Danger to life from powerful magnetic fields inside the machine!
When protective covers are opened inside the machine, the life of persons with the fol-
lowing passive or active implants is put at risk:
– Pacemakers
– Defibrillators
– Insulin pumps etc.
At-risk people must not stand in the immediate vicinity of the machine.
WARNING
DANGER OF CRUSHING!
There is a danger of crushing for persons with passive metal implants (e.g. plates,
screws).
Never reach into the placement machine when the protective covers are open and
do not bend over the open placement machine.
Do not bring any metal objects into the danger area.
CAUTION
Data loss due to powerful magnetic fields!
There is a risk that the powerful magnetic fields could corrupt data on data media or credit
cards and check cards.
Keep data carriers and check cards away from the placement machine.
2 Operational safety User manual SIPLACE TX-Series
2.1 Safety instructions From software version 713.0 Edition 01/2020
42

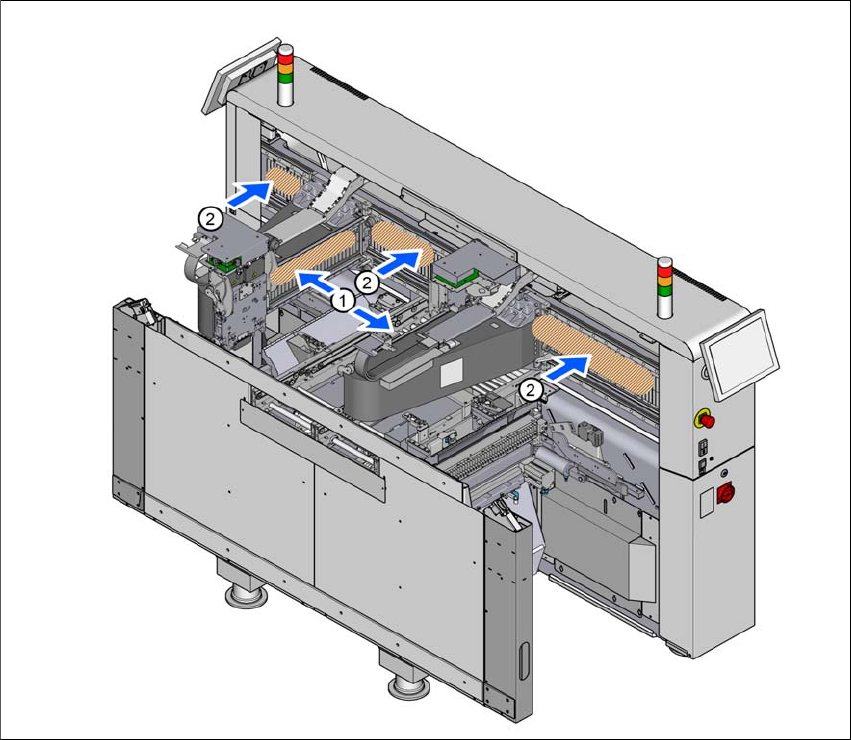

Fig. 2.1 - 1 Position of the permanent magnets for the linear drives (example of SIPLACE TX2 -location 2 shown)
(1) Permanent magnets for X linear motors
(2) Permanent magnets for Y linear motors
Please note the following points when working on the permanent magnets:
People with active implants (e.g. heart pacemakers) or other ferromagnetic prostheses are
expressly prohibited from working on or coming near these devices. Always keep a safe dis-
tance from the linear motor.
