2 Operational safety User manual SIPLACE TX-Series
2.2 Warning labels From software version 713.0 Edition 01/2020
44
2.2 Warning labels
The following diagrams show the SIPLACE TX2. The position of the warning labels is the same
for all other machine types in the SIPLACE TX-Series.
2
WARNING
Damage to warning labels!
The warning labels can be damaged or destroyed by abrasive cleaning agents or sol-
vents.
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any damaged or illegible warning labels.
User manual SIPLACE TX-Series 2 Operational safety
From software version 713.0 Edition 01/2020 2.2 Warning labels
45
2.2.1 Warning labels on the placement machine (default label)

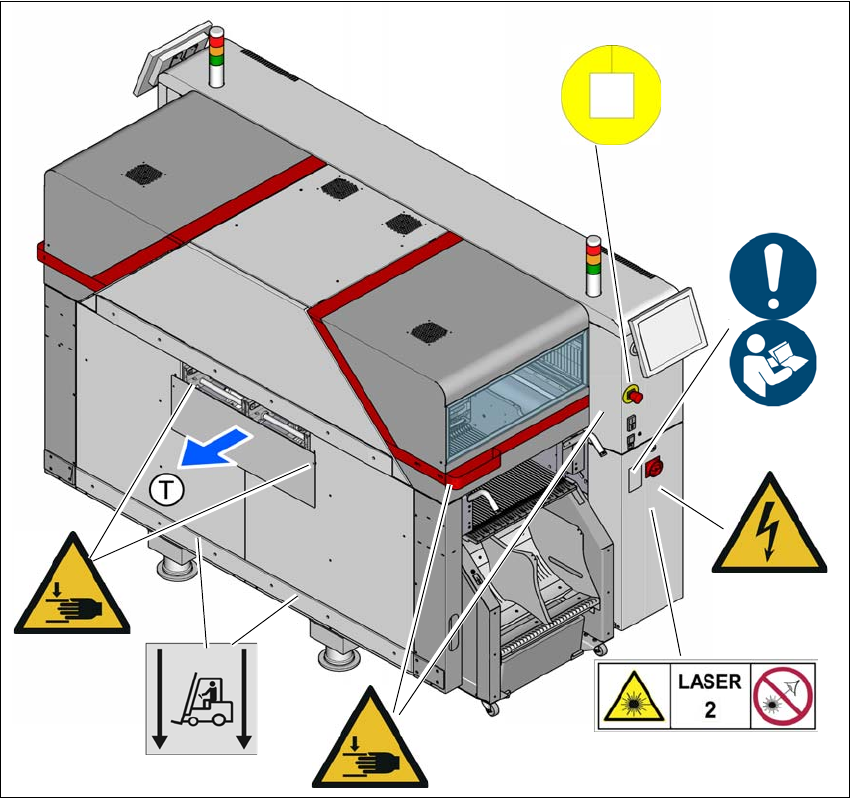

Fig. 2.2 - 1 Warning labels - location 2
(1) Warning - fork lifts (pallet truck or fork lift truck) - attach here
Item W 002, item no. 03155798-01
Item W 024, item no. 03155346-01
Item W 210, item no. 03009350-01
Item W 012, item no. 03155378-01
Item W laser class 2, item no. 03155298-01
(T) Direction of PCB transport
W 024
W 210
W 024
M 002
W 012
(1)
W laser class 2
2 Operational safety User manual SIPLACE TX-Series
2.2 Warning labels From software version 713.0 Edition 01/2020
46

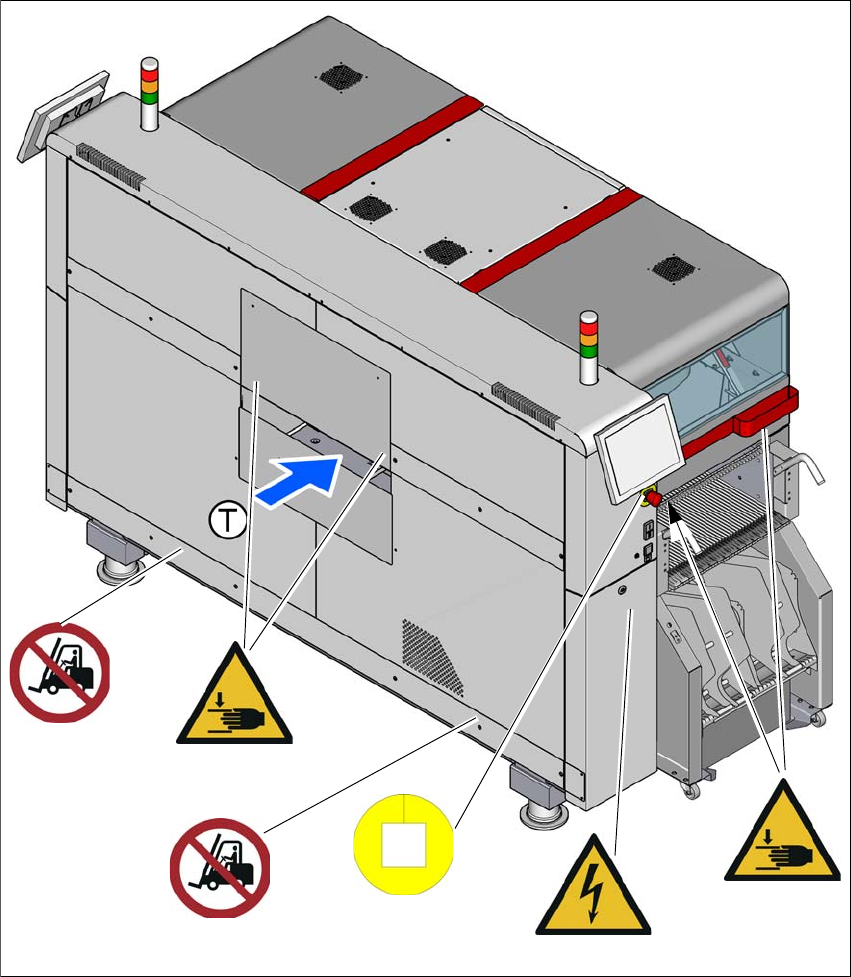

Fig. 2.2 - 2 Warning labels - location 1
Item W 006, item no. - 03155631-01
Item W 024, item no. 03155346-01
Item W 012, item no. 03155378-01
Item W 210, item no. 03009350-01
(T) Direction of PCB transport
2
W 210
W 012
P 006
W 024
W 024
P 006
