User manual SIPLACE TX-Series 2 Operational safety From software version 713.0 Edition 01/2020 2.2 Warning labels 55 2.2.4.2 W arning label W 204-CN 2 W 204 in fig. 2.2 - 4 , pag e 48 , 2.2 - 5 , p age 49 and 2.2 - 6 , p…
2 Operational safety User manual SIPLACE TX-Series
2.2 Warning labels From software version 713.0 Edition 01/2020
54
2.2.3.9 Attachment points for transportation with pallet truck or fork-lift
1 in fig. 2.2 - 1, page 45, item no. 03155590-01 or
1 in fig. 2.2 - 4
, page 48, item no. 03155590-01
(Quantity per placement machine: 2)
2.2.4 Meaning and description of warning labels (label for China)
The following labels for Chinese customers look different to the standard labels (rest of world).
2.2.4.1 Warning label W 209-CN
2
Item W 209-CN in fig. 2.2 - 4, page 48 and 2.2 - 5, page 49, item no. 03149080-01
(Quantity per placement machine: 2)
2
2
2
Attachment points for transportation with pallet truck or fork-lift
The placement machine may only be lifted and transported at
these marked points. The placement machine could otherwise tilt
over.
The placement machine may ONLY be lifted and transported
at these marked points (on the output end of the placement
machine). Read and observe the chapter "Setting up and
commissioning" on page 175.
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
User manual SIPLACE TX-Series 2 Operational safety
From software version 713.0 Edition 01/2020 2.2 Warning labels
55
2.2.4.2 Warning label W 204-CN
2
W 204 in fig. 2.2 - 4, page 48, 2.2 - 5, page 49 and 2.2 - 6, page 50 item no. 03149290-01
(Quantity per placement machine: 8)
2.2.4.3 Warning label W 004-CN with laser text label
2
Item W 004-CN in fig. 2.2 - 4, page 48, item no. 03155348-01
Text label "Laser" in fig. 2.2 - 4
, page 48, item no. 03155432-01 (quantity per placement machine:
1)
(Quantity per placement machine: 1)
2
2
2
Warning about hand injuries
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the running placement machine.
Do not reach into the inside of the adjacent placement ma-
chine
2
2 Operational safety User manual SIPLACE TX-Series
2.2 Warning labels From software version 713.0 Edition 01/2020
56
2.2.4.4 Hand guard on the board conveyor
The hand guard on the PCB conveyor prevents you from reaching into the placement machine, in
the event that there is no input/output conveyor extension fitted.
The hand guard is fitted to the input and output conveyors, as a default.
2

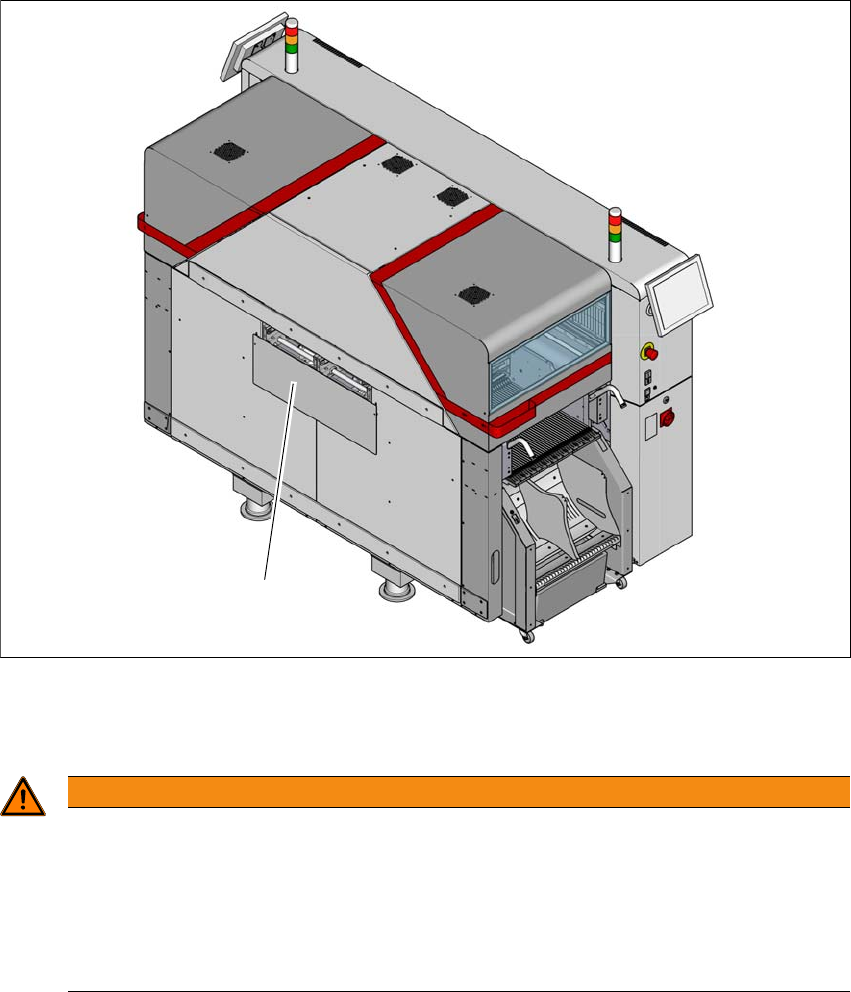

Fig. 2.2 - 7 Hand guard on the SIPLACE TX placement machine (location 2)
(1) Hand guard
2
Adjust the height of the hand guard (metal sheet inside and outside) so that the board with
the components can be transported safely through the conveyor system.
WARNING
Danger of crushing
If the hand guard is not fitted, reaching into the board conveyor could lead to injuries to
the arms and hands.
The operating company is responsible for ensuring that the hand guard is fitted.
Only operate the SIPLACE TX placement machine if the hand guard has been fitted
to the input and output conveyor.
(1)
