User manual SIPLACE TX-Series 2 Operational safety From software version 713.0 Edition 01/2020 2.2 Warning labels 69 2.2.1 1 "Head crash" label on th e IC camera of the T winSt ar "Head crash" label i…
2 Operational safety User manual SIPLACE TX-Series
2.2 Warning labels From software version 713.0 Edition 01/2020
68
2

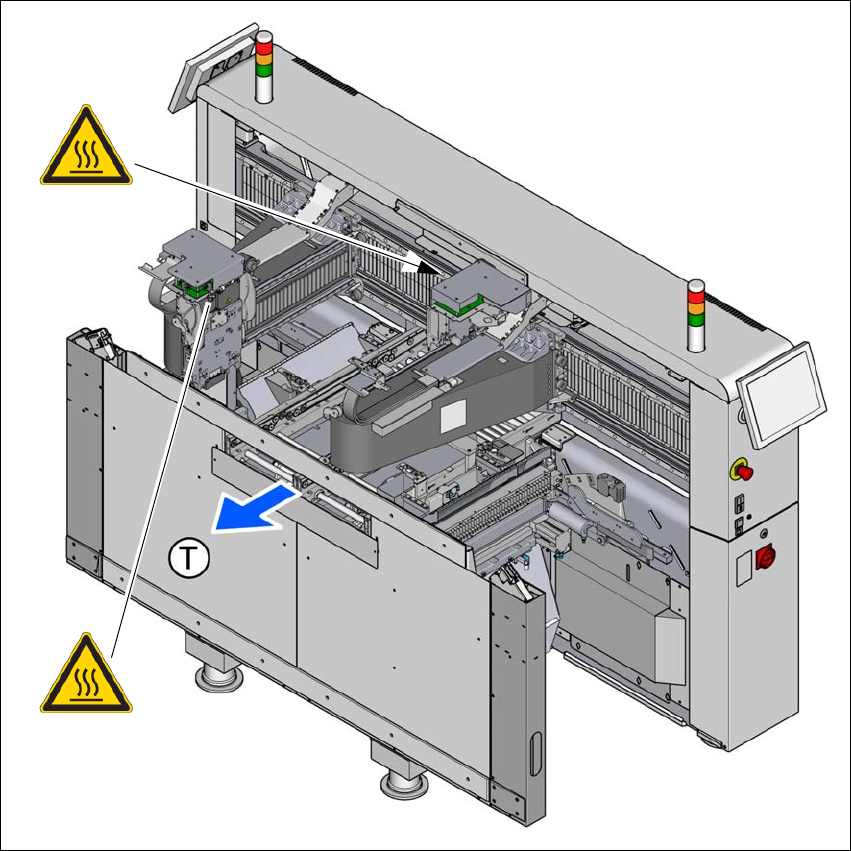

Fig. 2.2 - 15 Temperature label on the Modular Head Control Unit (MHCU) - (example of SIPLACE TX2 shown)
(1)
(1)
User manual SIPLACE TX-Series 2 Operational safety
From software version 713.0 Edition 01/2020 2.2 Warning labels
69
2.2.11 "Head crash" label on the IC camera of the TwinStar
"Head crash" label in fig. 2.2 - 16, item no. 03015392-02
(quantity per placement machine: maximum 2)
2

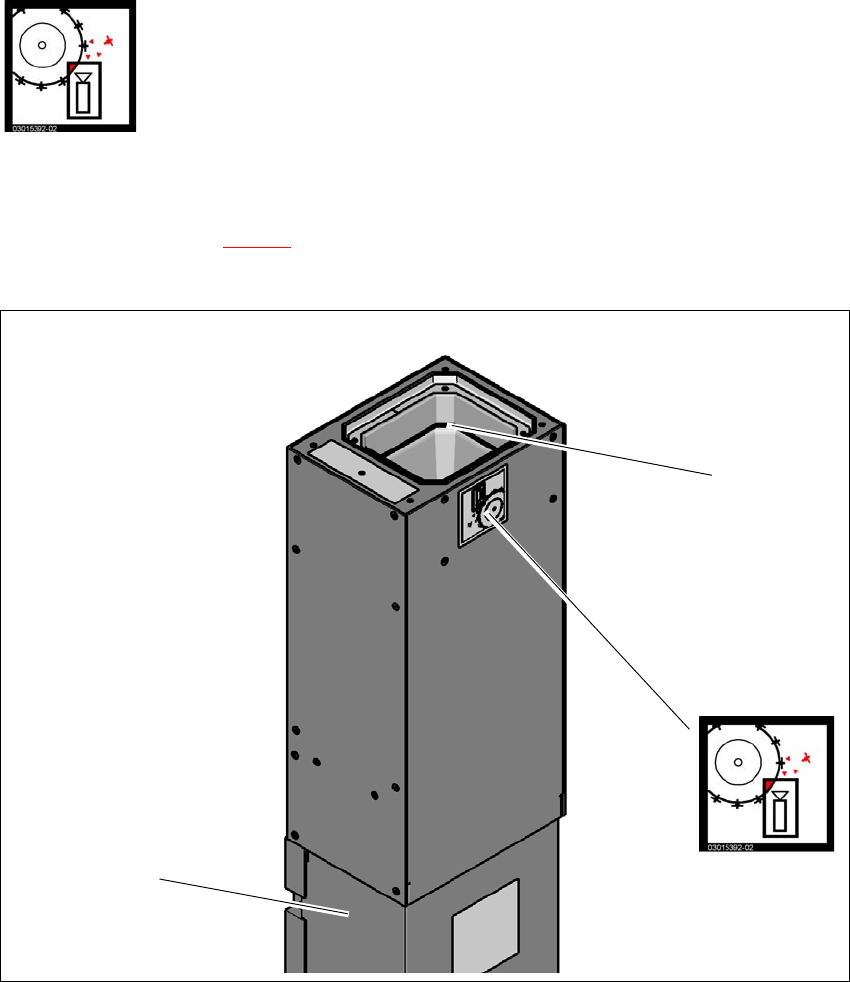

Fig. 2.2 - 16 "Head crash" label on the IC camera of the TwinStar
(1) Camera housing
(2) Glass plate
(3) "Head crash" label on the IC camera of the TwinStar
2
Risk of head crash
When changing the placement head from a TwinStar/VHF to a SpeedStar,
the SpeedStar collides with the camera housing.
Dismantle the stationary component cameras of type 33, 55 x 45, and
type 25, 16 x 16 for the TwinStar.
(3)
(1)
(2)
2 Operational safety User manual SIPLACE TX-Series
2.2 Warning labels From software version 713.0 Edition 01/2020
70
2.2.12 Warning labels on the PCB conveyor
2
Fig. 2.2 - 17 Warning labels on the PCB conveyor
W laser class 2 on the conveyor side for the laser light barriers
2
W laser class 2 in fig. 2.2 - 17, page 70, item no. 03155348-01 (quantity on PCB conveyor: 2)
W laser class 2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
