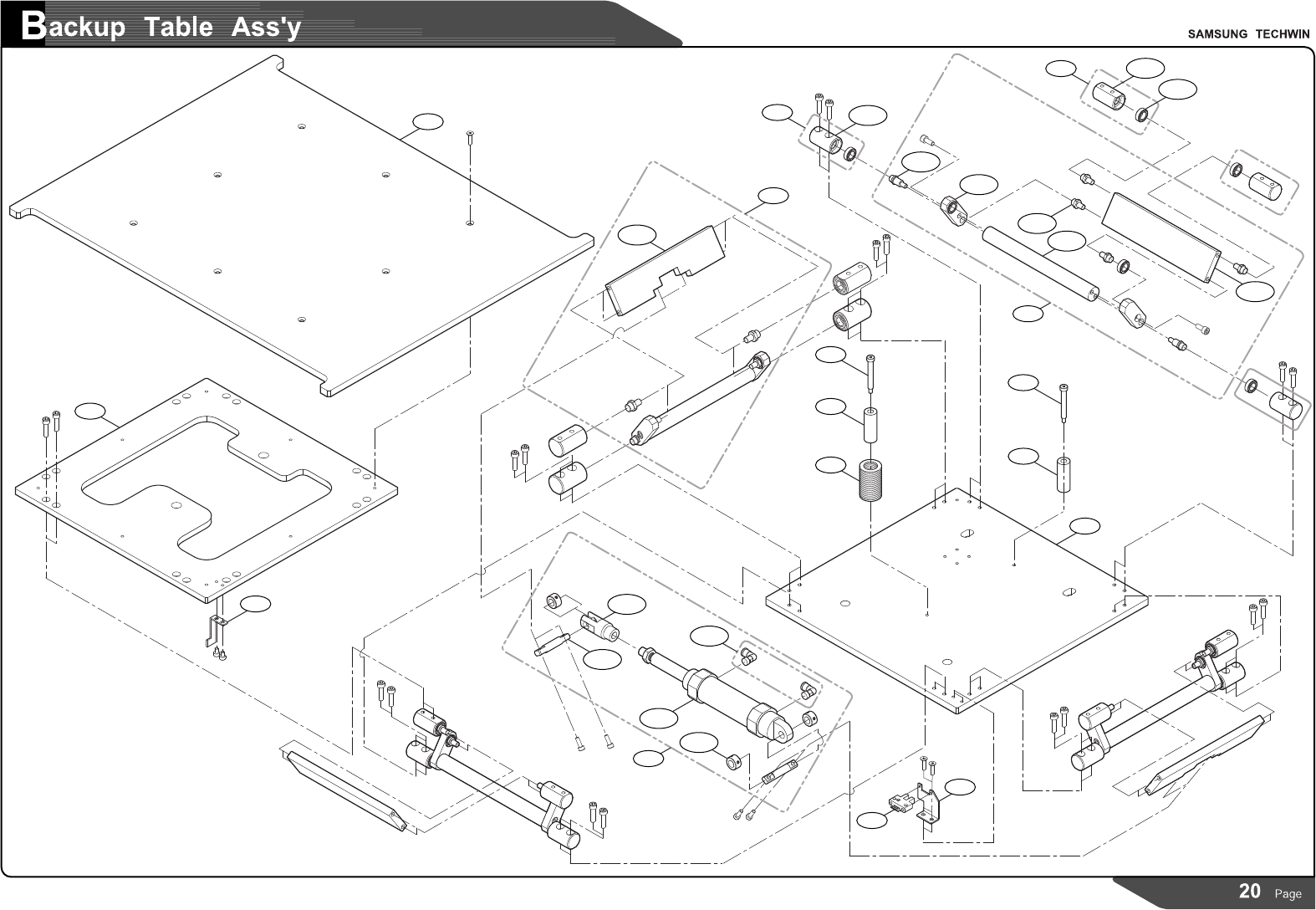

NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK 1 J7053801A BACK󰚟UP󰚟PLATE 1 J7053801A 2 J7053799A UPPER󰚟PLATE 1 J7053799A 3 J7053803A UP󰚟SENSOR󰚟DOG 1 J7053803A 4 J7053800A LOWER󰚟PLATE 1 J7053800A 5 J6107047A SPRING …

100%1 / 140
13
1
3
9
14
8
10
4
5
2
6
7
6
7
11
11-A
11-B
10-A
12
12-A
10-B
10-E
14-C
14-D
10-D
13-A
14-A
14-E
14-B
10-C
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
1
J7053801A BACK󰚟UP󰚟PLATE 1
J7053801A
2
J7053799A UPPER󰚟PLATE 1
J7053799A
3
J7053803A UP󰚟SENSOR󰚟DOG 1
J7053803A
4
J7053800A LOWER󰚟PLATE 1
J7053800A
5 J6107047A
SPRING 1
SWU26-70
6
J6308003A URETHAN󰚟CUSHION 2
AXNSK15-40
7 J6015064000
SHOULDER󰚟SCREW 2
MSB6-40
8 J3212002A
SENSOR 1
EE-SX670A
9
J7053802A UP󰚟SENSOR󰚟BRACKET 1
J7053802A
10
J90531003A FREE_LINK_ASSY
2
J90531003A
10-A
J7053793A LOWER󰚟LINK󰚟PIN 8
J7053793A
10-B
J7053796A LOWER󰚟LINK󰚟SHAFT 4
J7053796A
10-C
J7153418A UPPER󰚟FREE󰚟LINK 2
J7153418A
10-D
J7053792A UPPER󰚟LINK󰚟PIN 16
J7053792A
10-E
J90531008A LINK_END_ASSY 8
J90531008A
11
J90531007A UPPER_BEARING_ASSY 8
J90531007A
11-A
J7053791A UPPER󰚟BEARING󰚟HOLDER 8
J7053791A
11-B J6601005A
BEARING 24
688ZZ
12
J90531006A LOWER_BEARING_ASSY 8
J90531006A
12-A
J7053790A LOWER󰚟BEARING󰚟HOLDER 8
J7053790A
13
J90531004A DRIVING_LINK_ASSY
2
J90531004A
13-A
J7153419A UPPER󰚟DRIVING󰚟LINK 2
J7153419A
14
J90531005A BUT_CYLINDER_ASSY
1
J90531005A
14-A
J7053795A RING󰚟FIXER 3
J7053795A
14-B
J7053794A CYLINDER󰚟JOINT󰚟PIN 2
J7053794A
14-C
J6619062A CYLINDER󰚟JOINT 1
Y-032B
14-D
J67010088B CYLINDER󰚟 1
CM2C32-50-XC3BB
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
14-E J6711028A
ELBOW󰚟FITTING 2 KQ2L04-01
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
