2 3 1 4 2 0 1 5 2 1 3 1 6 1 9 1 8 1 7 1 1 1 2 1 3 1 2 1 0 9 8 6 5 5 4 2 1 2 4 1 0 2 2
NO. PARTNO. PARTNAME Q'TY TYPE REMARK
1 J70531008A
DUMPBOXBKT 1
J70531008A
2 J70531002A
DUMPBOX 1
J70531002A
3
J70530693C DUMPBOXBKT2 1
J70530693C
4
J6409011A DUMPBOX 1
1/9PAN
5
J6702050A SOLVALVEMODULE 1
J6702050A
5-A
J6704006A MANIFOLDBLOCK 1
SY3120-20-KRW0098
5-B
J6702036A SOL'VALVE 4
SY3120-5LZ-M5
5-C J1300067
SILENCER 2
AN101-01
5-D
J6711157A FITTING 1
KQ2L08-01S
5-E J6703031A
SPEEDCON 2
AS1211F-M5-06
5-F
J1300279 FITTING 6
KQ2S04-M5
5-G
J6712017A PLUGFITTING 1
KPT18
5-H
J6702035A SOL'VALVE 1
VQ110U-5M
5-I
J1301188 FITTING 1
KQ2L04-M5
5-J J6704007A
BLANKINGPLATE 1
SY3000-26-10A
6
7
8
9
10
11
12
13
14
15
16
17
23
14
20
15
21
3
16
19
18
17
11
12
13
1
2
10
9
8
6
5
5
4
21
24
10
22

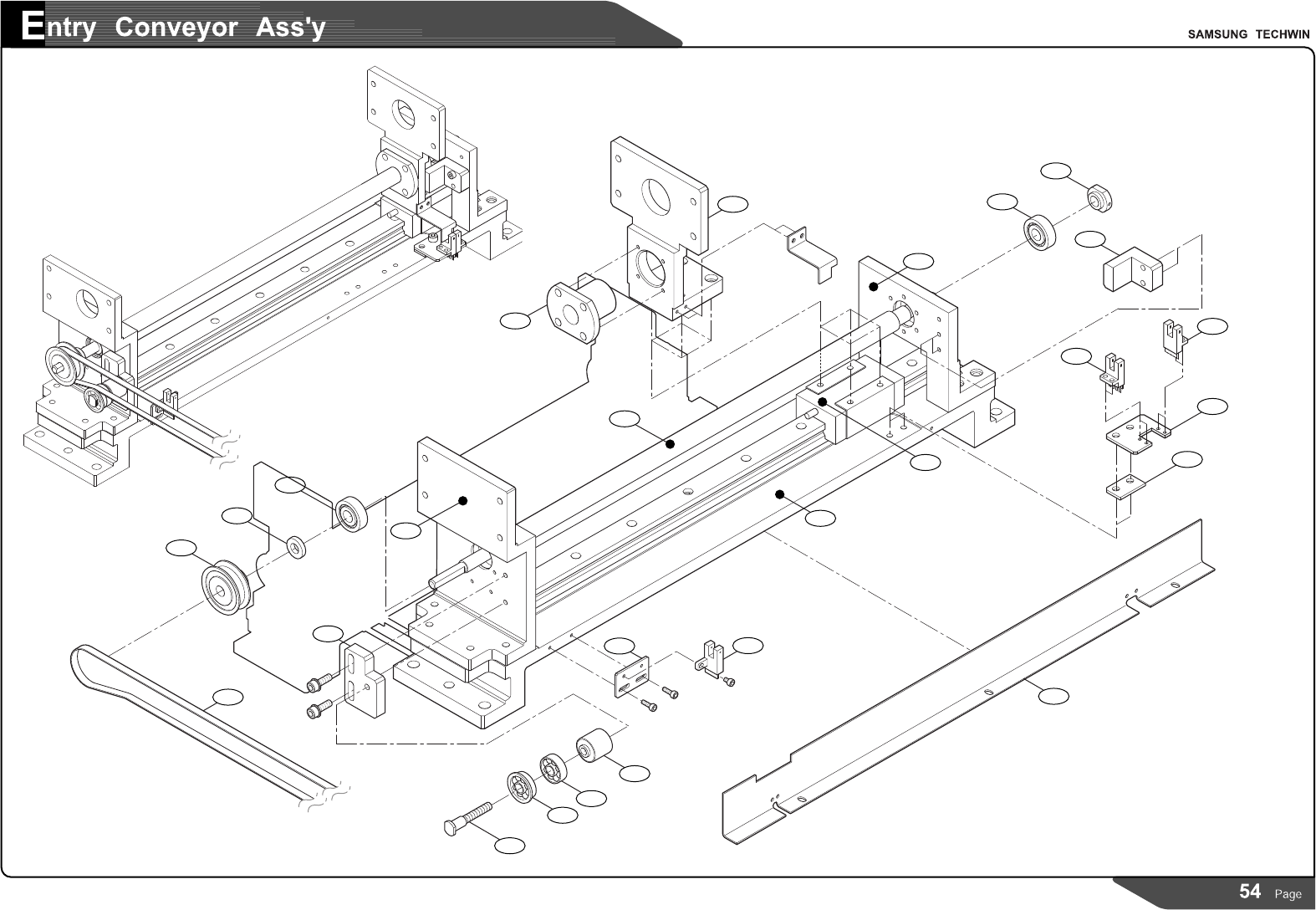

NO. PARTNO. PARTNAME Q'TY TYPE REMARK
1 J7053788A
SUPPORT-WIDEADJUST 1
J7053788A
2
J7053201A SCREWSTAND 1
0145-641014
3
J7153404A FIXSTAND 1
J7153404A
4
J6607083A LMGUIDE(WIDTH) 1
SBG20-SL-1-575-N
5
J6614007A LEADSCREW 1
DCM16+648.5L
6
J7053677A MOVESTAND 1
J7053677A
7
J7053216B DOG-SENSOR 1
J7053216B
8
J7053779A BRACKET1-HOMESENSORDOG 1
J7053779A
9
J7053778A BRACKET2-HOMESENSORDOG 1
J7053778A
10
J3212026A PHOTOSENSOR 2
J3212026A
11
J3212004A PHOTOSENSOR 1
EE-SX672A
12
J7053214C BRACKET1-SENSOR 1
J7053214C
13
J7053787A CONVEYORCHIPCOVER-L 1
J7053787A
14
J6609012A PULLEY-WIDTH 1
20-XL-025
15 J7153326A WIDTHPULLEYCOLLAR
1
J7153326A
16 J7053660A TENSIONBKT
1
J7053660A
17 J7053661B WIDTHTENSIONSPACER
1
J7053661B
18 J6601109A BALLBEARING
1
608ZZ
19 J6601126A BALLBEARING
1
F608ZZ
20 J7053662A TENSIONBEARINGPIN
1
J7053662A
21 J1300509 BALLBEARING
2
6000ZZ
22 J7053194A BEARINGNUT
1
0131-641016
23 J6602074A TIMINGBELT
1
025-XL-396-AJ
24 J7053762A STOPPERREAR
1
J7053762A
25
26
27
