KHU-YCP2_PL
P AR TS LIST Y CPII KHU-100-0905(PL) Solder Paste Printer
Contents
6 Camera Section
Mask Camera .......................................................6-1
PCB Camera ........................................................6-2
Inspection Camera (Op.) ......................................6-3
7 Conveyor Unit Section
Main Stopper ........................................................7-1
Board Stopper ......................................................7-2
Edge Clamp(Std. / Op.) ........................................7-3
Matrix Plate ...........................................................7-4
Main Conveyor Assy-1 .........................................7-5
Main Conveyor Assy-2 .........................................7-6
Option ( PCB Vacuum,PCB Support) ...................7-7
Option (PCB Push) ...............................................7-8
8 Control Box Section
Control Box ...........................................................8-1
9 Exterior, etc
Exterior, etc ...........................................................9-1
Key Board .............................................................9-2
Temp.Con.Spare Assy ..........................................9-3
.....................................................
1 Base Section
Base .....................................................................1-1
2 Cover Section
Cover ....................................................................2-1
Cover Sub Assy ....................................................2-2
3 Moving-axis Section
SZ Assy-1 .............................................................3-1
SZ Assy-2 .............................................................3-2
SY Assy ...............................................................3-3
SY-Mark Clamper R/L ...........................................3-4
X-axis Assy ...........................................................3-5
Y-axis Assy ...........................................................3-6
R-axis Assy ...........................................................3-7
Z-axis Assy ...........................................................3-8
PU-Table Assy ......................................................3-9
4 Head Section
SQG. Assy Sel. (Urethane SQG.) ........................4-1
SQG. Assy Sel. (Metal SQG.)
(Half Etching Type)
.......4-2
SQG. Assy Sel. (Metal SQG.) ..............................4-3
5 Cleaner Section
Cleaner Head-1 ....................................................5-1
Cleaner Head-2 ....................................................5-2
Cleaner Base Assy / Pump Section ......................5-3
Blower Unit ...........................................................5-4
1
1

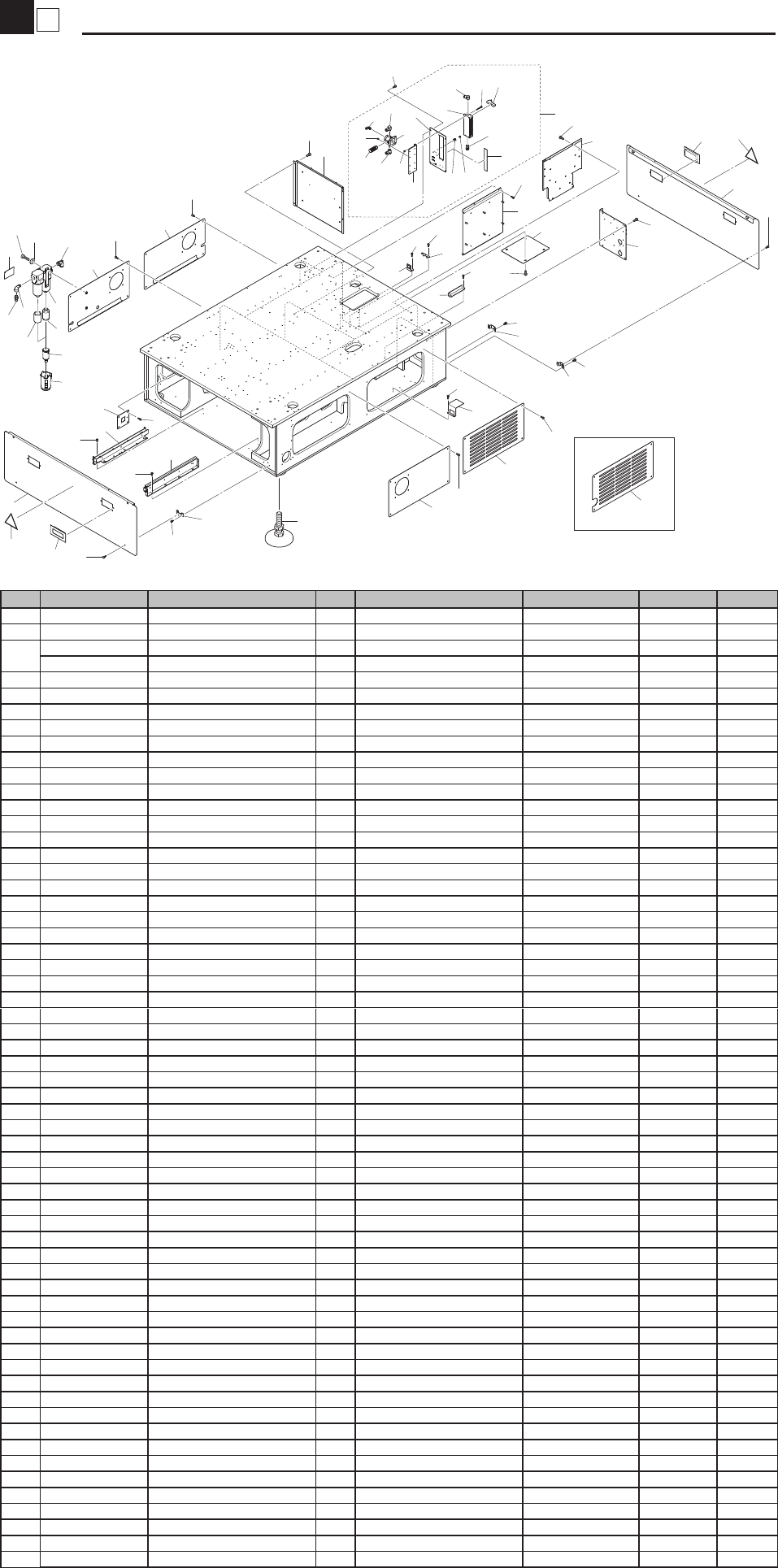

Base
Base
KHU-100-1002
50
28
47
8
27
44
44
29
26
17
22
55
55
54
24
25
45
45
14
20
48
19
45
18
21
42
23
24
53
16
45
13
10
7
49
45
12
51
51
36
44
30
2
11
51
49
50
50
10
33
32
9
6
49
39
46
52
37
34
35
31
49
5
7
45
49
4
3
49
11
19
15
3
UPS
38
40
41
38
56
57
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
2 KGA-M1180-00 LEVELING BOLT ASSY 4
3
KHU-M1111-00 PLATE, SIDE 1 1 S.T.D color
KHU-M1111-10 PLATE, SIDE 1 1 S.T.D color for UPS
4 KHU-M1112-01 PLATE, SIDE 2 1 S.T.D color
5 KHU-M1112-11 PLATE, SIDE 3 1 S.T.D color
6 KHU-M1112-21 PLATE, SIDE 4 1 S.T.D color
7 KHU-M1114-00 COVER BASE 2 S.T.D color
8 KHU-M1115-00 COVER,MOTOR 1
9 KHU-M1116-00 PLATE,GATE IN/OUT 2
10 KHU-M1117-00 PULL 4
11 KHU-M1118-00 BRKT,COVER, BASE 4
12 KHU-M1121-00 BRKT,BRAKER 1
13 KHU-M1131-00 BRKT,RELAY 1
14 KHU-M1141-00 BRKT,CONNECTOIN B 1
15 KHU-M1151-00 BRKT,I/O BOARD 1
16 KHU-M1160-A5 VALVE SUB ASSY. 1
17 KHU-M1161-50 PLATE,VALVE 1
18 KHU-M8582-50 VALVE 1
19 $KM-11 MUFFLER 1
20 $NK-4N NYLON CLIP 2
21 $SL8-01 JOINT 1
22 KV8-M9212-00 VALVE 1
23 $TL4-01 JOINT 1
24 $SL8-02 JOINT 2
25 $KM-23 MUFFLER 2
26 KG2-M8582-40 VALVE 1
27 KHU-M1171-00 BRKT.,CONNECTOR 1
28 KHU-M1172-00 CLAMPER,HNS 1
29 KHU-M1173-00 BRKT,POWER SUPPLY 1
30 KHU-M1174-00 COVER,PS 1
31 KHW-M8502-00 F.M.COMB. 1
32 KGA-M4126-01 GUIDE RAIL L ASSY 1
32-1 Delete (2009/4/20) MF40125
33 KGA-M4127-01 GUIDE RAIL R ASSY 1
33-1 Delete (2009/4/20) MF40125
34 90990-42J006 JOINT 1
35 90990-42J008 JOINT 1
36 KV7-M1125-00 PLATE,CLAMP 2
37 KGA-M11B0-00 AIR TAG 1
38 90K41-000712 LABEL ALERT 2
39 $TL12-03 JOINT 1
40 KHW-M8501-10 ELEMENT 1 Spare
41 KHW-M8501-20 MANTLE 1 Spare
42 91312-03030 BOLT,HEX.SOCKET HEAD 4 M3X30
43 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
44 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
45 91312-05010 BOLT HEX.SOCKET HEAD 28 M5X10
46 91312-06016 BOLT HEX.SOCKET HEAD 2 M6X16
47 91312-08012 BOLT HEX.SOCKET HEAD 4 M8X12
48 90990-11J005 SCREW PAN HEAD 2
49 90990-12J004 SCREW BIN.HEAD W/W 24
50 97602-04308 SCREW,PAN HEAD W/W 2
51 97602-05310 SCREW,PAN HEAD W/W 44
52 92902-06200 WASHER PLAIN 2
53 KHU-M1162-50 SEAL,BASE VALVE 1
54 KHU-M1163-50 BRKT.,VALVE 1
55 91312-04005 BOLT HEX.SOCKET HEAD 6 M4X5
56 KHW-M8501-30 BOWL (F3000-W) 2 (2011/12/20) MH00013
57 KHW-M8501-40 BOWL GUARD (F3000-W) 2 (2011/12/20) MH00013
