4 5 Blower Unit Cleaner KHU-100-1002 16 14 7 21 10 5 13 9 17 14 16 6 24 12 23 1 1 21 22 14 16 4 2 3 1 19 18 15 20 8 14 16 25 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KHU-M3701-00 BAS…
3
5

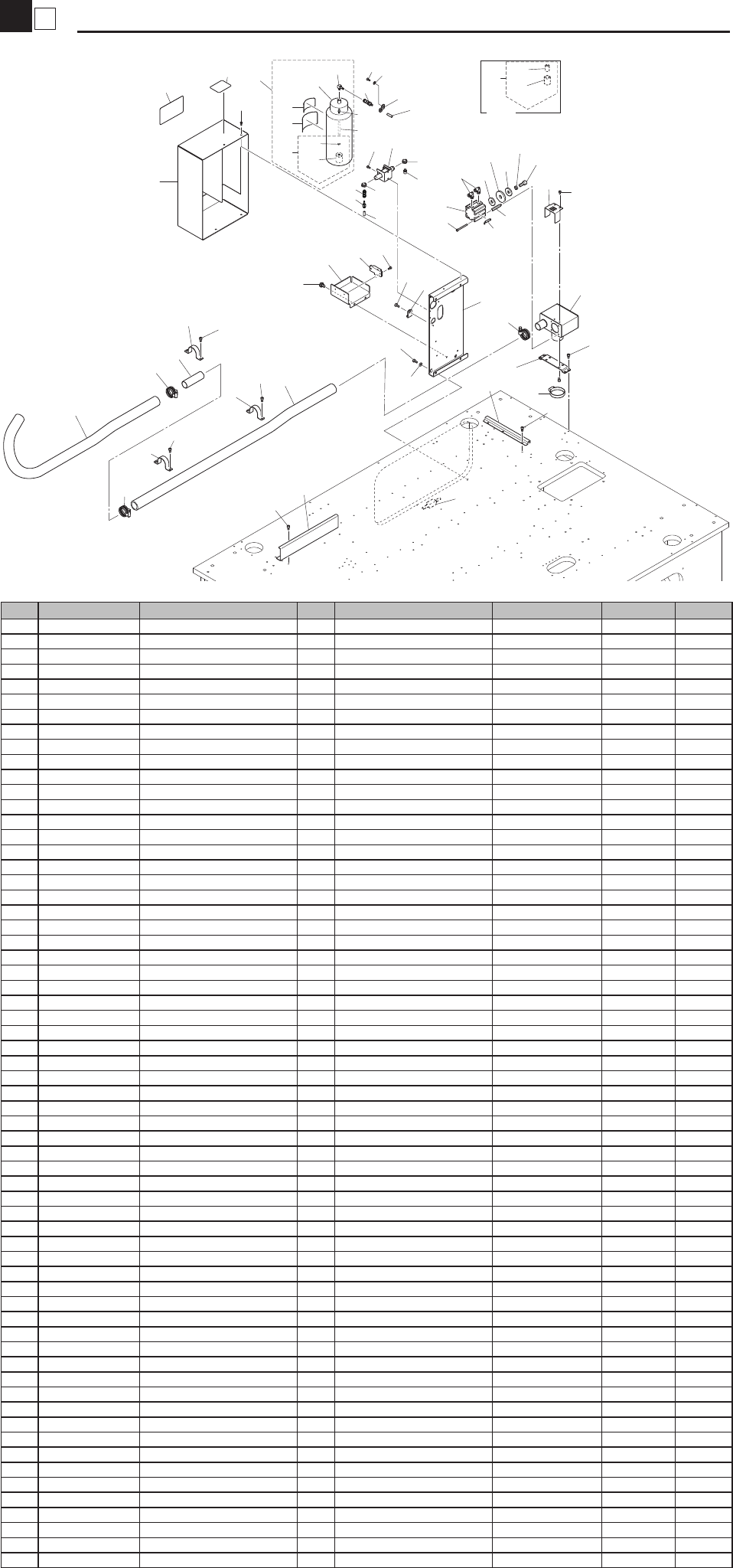

Cleaner Base Assy / Pump Section
Cleaner
KHU-100-1002
2
50
40
36
45
23
14
42
25
24
22
39
15
6
55
56
32
41
21
16
1
26
5
30
11
40
8
18
42
4
43
38
47
33
37
17
7
37
12
3
42
3
42
42
46
9
42
3
26
26
13
34
29
29
40
10
20
19
44
35
35
57
48
51
49
28
27
52
54
53
OLD
58
59
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M3750-00 BOTTLE BASE 1
2 KHU-M3751-01 COVER,PUMP 1
3 KHU-M3752-00 BRKT.,TUBE 3
4 KHU-M3753-00 BODY,VALVE 1
5 KHU-M3754-00 BRKT. 3,TUBE 1
6 KHU-M3756-00 PUMP 1
6-1 KHU-M3756-01 PUMP 1 (2013/5/27) MK50034 OK
7 KHU-M3757-01 BRKT,BOTTLE 1
8 KHU-M3758-00 GUIDE,TUBE VACUUM 1
9 KHU-M3759-00 HOSE JOINT 1
10 KHU-M3760-00 COVER,CYL. 1
11 KHU-M3761-00 COVER,TUBE 1
12 KHU-M3762-00 TUBE 25,VACUUM 1
13 KHU-M3762-10 TUBE 25,VACUUM 1 1
14 KHU-M3776-20 TUBE,PUMP 2 1
15 KHU-M3776-30 TUBE,PUMP 3 1
16 KHU-M653F-00 SENSOR VAC,CLOSE 1
17 KGY-M653V-00 SENSOR,SOLV.EMPTY 1
18 KW3-M653J-00 CHANGE,PN ASSY 1
19 90990-28J021 WASHER,PLAIN 1
20 90990-28J022 WASHER,PLAIN 1
21 KGJ-M3754-00 CYL,VALVE 1
22 KGJ-M3762-00 BOTLLE 1
23 KGJ-M3764-02 BRKT,JOINT 1
24 90990-42J012 JOINT 1
25 90990-42J013 JOINT 1
26 KGY-M3730-00 TUBE 25,BAND 3
27 KGY-M3732-00 SOLVENT FILTER 1
27-1 Delete (2013/5/27) MK50034
28 90990-41J092 COLLAR 1
28-1 Delete (2013/5/27) MK50034
29 90990-28J069 WASHER,PLAIN 2
30 KW3-M3690-00 TUBE,BAND 1
31
32 $BF6U JOINT 2
33 $NK-2N NYLON CLIP 3
34 $TL4-01 JOINT 2
35 $UEF JOINT 2
36 90K41-000410 LABEL,ALERT 2
37 90990-12J004 SCREW BIN.HEAD W/W 2
38 90563-24J370 SPACER BOLT 4
39 91312-03005 BOLT HE.SOCKET HEAD 2 M35
40 91312-04006 BOLT HE.SOCKET HEAD 5 M46
41 91312-04045 BOLT HE.SOCKET HEAD 4 M445
42 91312-05008 BOLT HE.SOCKET HEAD 17 M58
43 91312-05010 BOLT HE.SOCKET HEAD 4 M510
44 91312-08020 BOLT HE.SOCKET HEAD 1 M820
45 92902-05600 WASHER PLAIN 1
46 90172-00J040 WASHER,ETL.TOOTHED 4
47 98980-03008 SCREW BINDING HEAD 2
48 90K41-000390 LABEL,ALERT 1
49 KGJ-M3762-A0 BOTTLE ASSY 1
50 90K41-000410 LABEL,ALERT 1
51 90K41-000390 LABEL,ALERT 1
52 KGY-M3731-A0 SOLVENT FILTER ASSY 1
52-1 Delete (2013/5/27) MK50034
53 $NBF6 NIPPLE 1 (2013/5/27) MK50034 NG
54 KHU-M3791-00 TUBE 6-50 1 (2013/5/27) MK50034 NG
55 90990-17J080 O-RING 1 (2013/5/27) MK50034 NG
56 KHT-M362E-00 FILTER,SOLVENT 1 (2013/5/27) MK50034 NG
57 KHT-M362E-A0 FILTER SUB ASSY. 1 (2013/5/27) MK50034 NG
58 KHT-M3682-00 SOCKET 1 (2013/5/27) MK50034
59 KHU-M3763-00 JOINT 1 (2013/3/13) MK30025
4
5
Blower Unit
Cleaner
KHU-100-1002
16
14
7
21
10
5
13
9
17
14
16
6
24
12
23
11
21
22
14
16
4
2
3
1
19
18
15
20
8
14
16
25
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M3701-00 BASE 1
2 KHU-M3702-00 BASE,BLOWER 1
3 KHU-M3703-00 PAD 1
4 KHU-M3704-02 BRACKET,INV. 1
5 KHU-M3704-51 BRKT,FILTER 1
6 KHU-M3705-10 TUBE,VACUUM 1
7 KHU-M3705-20 TUBE,VACUUM 1
8 KHU-M3705-30 TUBE,VACUUM 1
9 KHU-M3706-00 U-BOLTS 2
10 KHU-M641X-01 INVERTER 1
10-1 KGY-M3706-10 INVERTER 1 (2009/6/23) MF60206 OK
11 KHU-M3710-00 COVER 1
12 KGY-M3708-00 BLOWER 1
13 KGY-M3710-00 INLINE FILTER 1
14 KW3-M3690-00 TUBE,BAND 4
15 KW3-M3721-00 CASTER 4
16 KW3-M3717-01 JOINT:1-1/2X39.5 4
17 KGY-M3710-40 INL,FILTER ELEMENT 1
18 $NK-2N NYLON CLIP 13
19 90990-11J001 SCREW PAN HEAD 13
20 90990-12J004 SCREW BIN.HEAD W/W 4
21 91312-04006 BOLT HEX.SOCKET HEAD 8
22 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
23 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
24 91312-10030 BOLT,HEX.SOCKET HEAD 4 M10X30
25 90K41-000712 LABEL ALERT 1
1
6
Mask Camera
Camera
KHU-100-0905
7
9
2
1
13
2
9
14
14
10
8
4
3
6
5
12
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M7611-00 BRACKET,CAMERA 1
2 KGJ-M7612-00 PLATE,CAMERA 2
3 KGJ-M7614-00 HOLDER,CAMERA 1
4 KGJ-M7619-00 HOLDER,LIGHT 1
5 KGA-M7210-01 CCD CAMERA 1
6 KV7-M7211-00 LENS 095 1
7 KGJ-M76A0-00 MASK LIGHT ASSY 1
8 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8
9 91317-04006 BOLT HEX.SOCKET HEAD 8 M4X6
10 91317-04010 BOLT HEX.SOCKET HEAD 3 M4X10
11 91317-04020 BOLT HEX.SOCKET HEAD 3 M4X20
12 91317-04025 BOLT HEX.SOCKET HEAD 2 M4X25
13 91317-06020 BOLT HEX.SOCKET HEAD 4 M6X20
14 99480-04012 PIN,PARALLEL 4
