KHU-YCP2_PL - 第22页
1 6 Mask Camera Camera KHU-100-0905 7 9 2 1 13 2 9 14 14 10 8 4 3 6 5 12 1 1 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KGJ-M761 1-00 BRACKET ,CAMERA 1 2 KGJ-M7612-00 PLA TE,CAMERA 2 3…
4
5

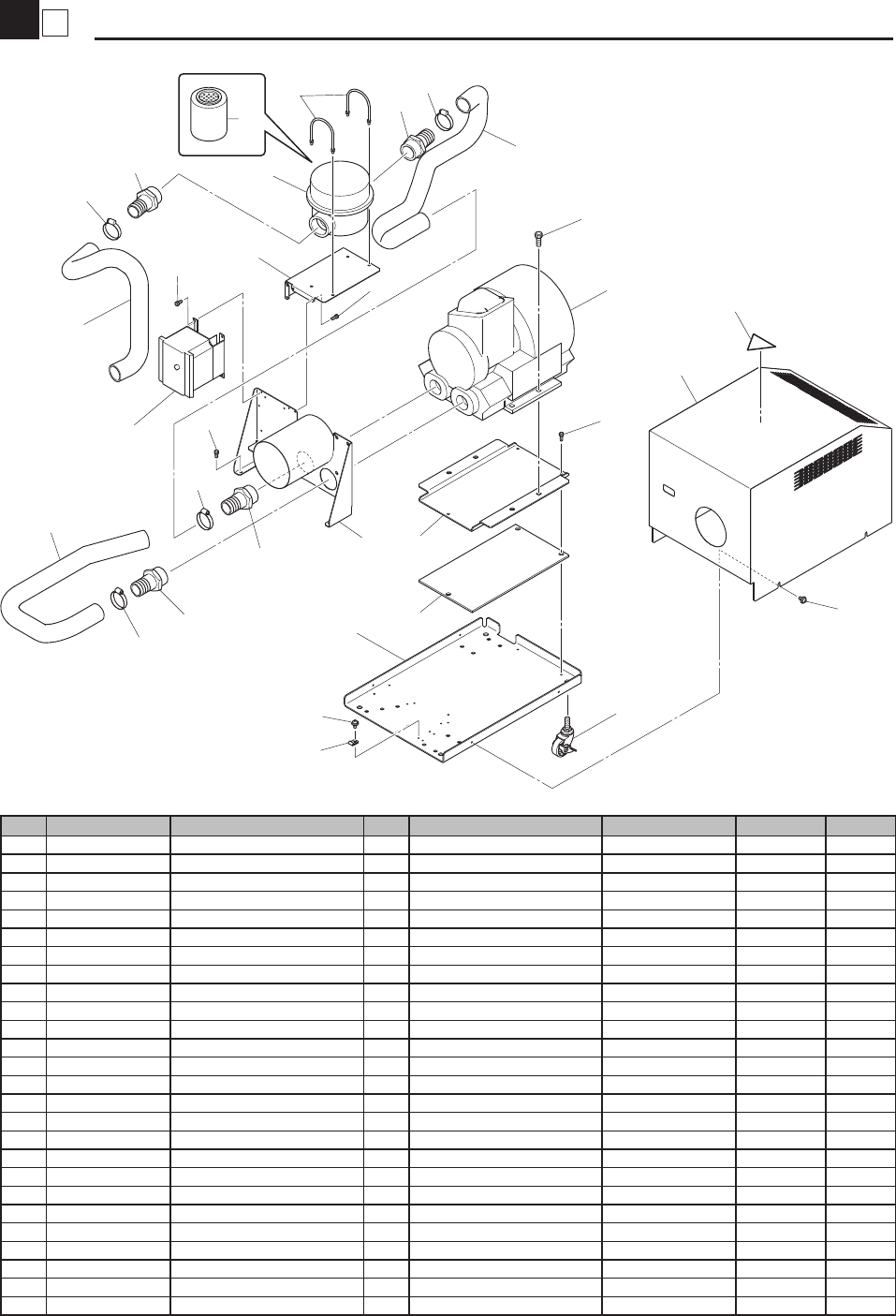

Blower Unit
Cleaner
KHU-100-1002
16
14
7
21
10
5
13
9
17
14
16
6
24
12
23
11
21
22
14
16
4
2
3
1
19
18
15
20
8
14
16
25
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M3701-00 BASE 1
2 KHU-M3702-00 BASE,BLOWER 1
3 KHU-M3703-00 PAD 1
4 KHU-M3704-02 BRACKET,INV. 1
5 KHU-M3704-51 BRKT,FILTER 1
6 KHU-M3705-10 TUBE,VACUUM 1
7 KHU-M3705-20 TUBE,VACUUM 1
8 KHU-M3705-30 TUBE,VACUUM 1
9 KHU-M3706-00 U-BOLTS 2
10 KHU-M641X-01 INVERTER 1
10-1 KGY-M3706-10 INVERTER 1 (2009/6/23) MF60206 OK
11 KHU-M3710-00 COVER 1
12 KGY-M3708-00 BLOWER 1
13 KGY-M3710-00 INLINE FILTER 1
14 KW3-M3690-00 TUBE,BAND 4
15 KW3-M3721-00 CASTER 4
16 KW3-M3717-01 JOINT:1-1/2X39.5 4
17 KGY-M3710-40 INL,FILTER ELEMENT 1
18 $NK-2N NYLON CLIP 13
19 90990-11J001 SCREW PAN HEAD 13
20 90990-12J004 SCREW BIN.HEAD W/W 4
21 91312-04006 BOLT HEX.SOCKET HEAD 8
22 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
23 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
24 91312-10030 BOLT,HEX.SOCKET HEAD 4 M10X30
25 90K41-000712 LABEL ALERT 1
1
6

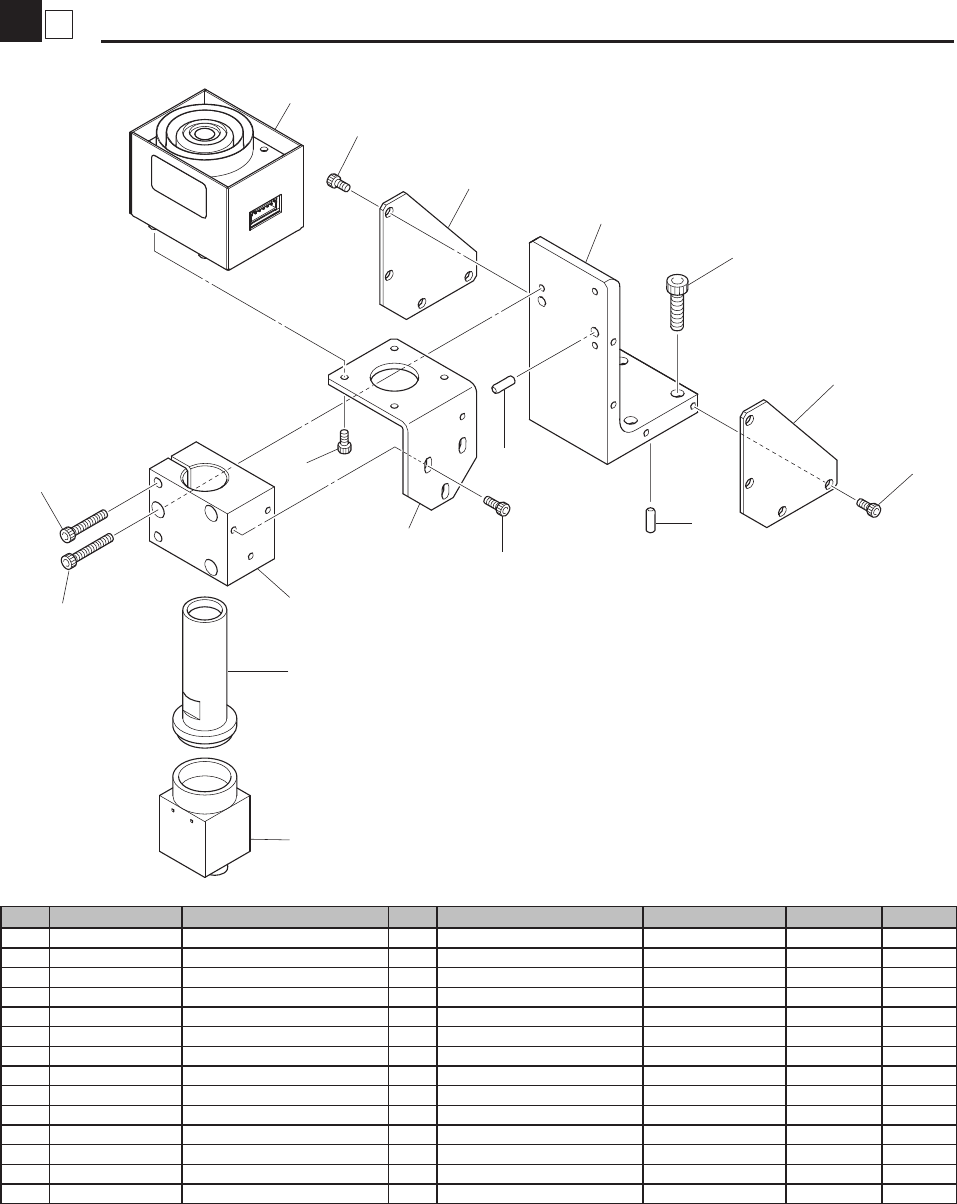

Mask Camera
Camera
KHU-100-0905
7
9
2
1
13
2
9
14
14
10
8
4
3
6
5
12
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M7611-00 BRACKET,CAMERA 1
2 KGJ-M7612-00 PLATE,CAMERA 2
3 KGJ-M7614-00 HOLDER,CAMERA 1
4 KGJ-M7619-00 HOLDER,LIGHT 1
5 KGA-M7210-01 CCD CAMERA 1
6 KV7-M7211-00 LENS 095 1
7 KGJ-M76A0-00 MASK LIGHT ASSY 1
8 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8
9 91317-04006 BOLT HEX.SOCKET HEAD 8 M4X6
10 91317-04010 BOLT HEX.SOCKET HEAD 3 M4X10
11 91317-04020 BOLT HEX.SOCKET HEAD 3 M4X20
12 91317-04025 BOLT HEX.SOCKET HEAD 2 M4X25
13 91317-06020 BOLT HEX.SOCKET HEAD 4 M6X20
14 99480-04012 PIN,PARALLEL 4
2
6

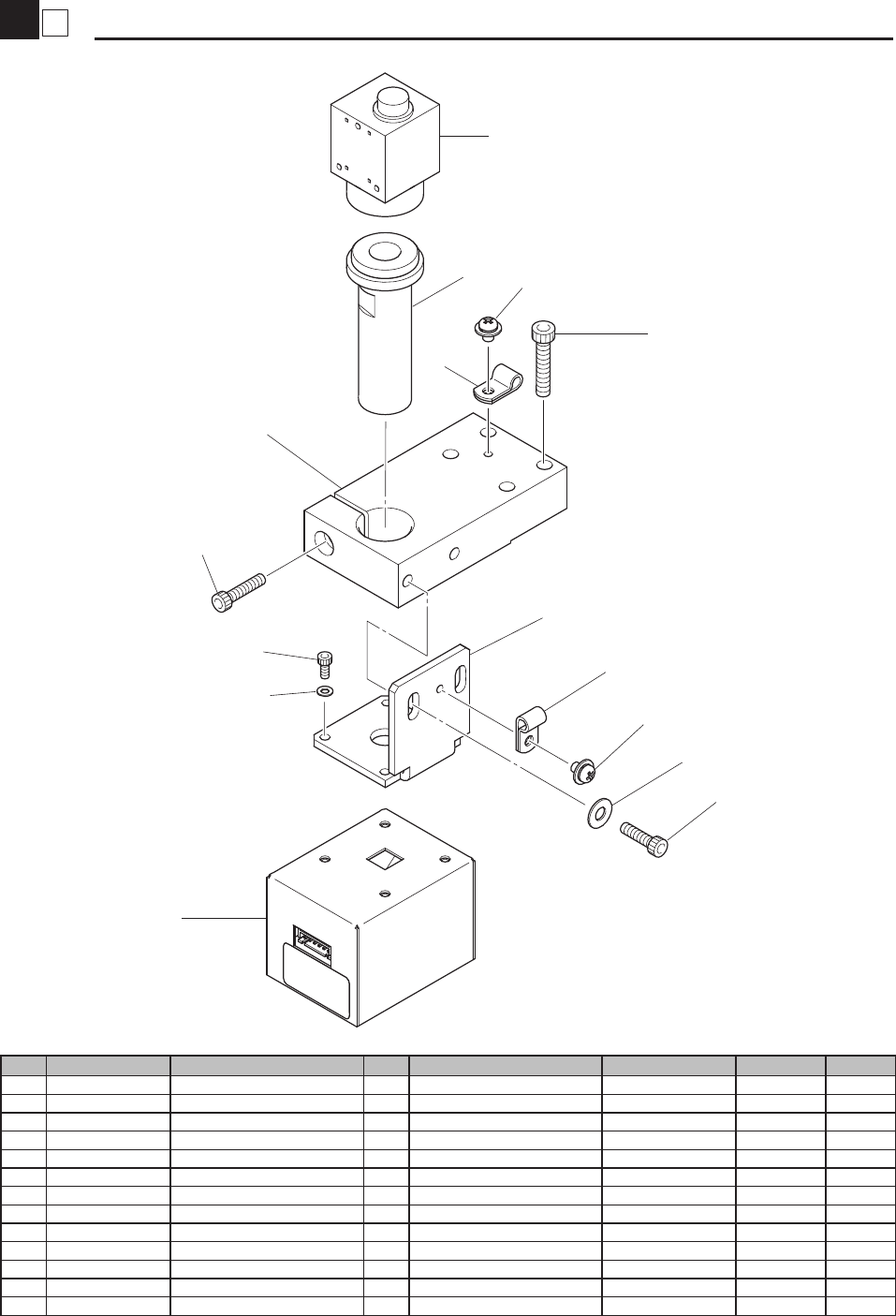

PCB Camera
Camera
KHU-100-0905
3
4
7
6
11
1
10
8
12
5
2
6
7
9
13
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M7811-00 HOLDER, CAMERA 1
2 KHU-M7812-00 BRACKET,LIGHT 1
3 KGA-M7210-01 CCD CAMERA 1
4 KV7-M7211-00 LENS 095 1
5 KV7-M7600-00 FIDUCIAL LIGHT ASSY. 1
6 $NK-3N NYLON CLIP 2
7 90990-11J001 SCREW PAN HEAD 2 M3X6
8 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
9 91312-05014 BOLT HEX.SOCKET HEAD 2 M5X14
10 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
11 91312-05030 BOLT HEX.SOCKET HEAD 4 M5X30
12 92902-03600 WASHER PLAIN 4
13 92902-05200 WASHER PLAIN 2
