3 6 Inspection Camera (Op.) Camera KHU-100-0905 1 8 3 10 4 6 5 7 2 9 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KGJ-M72A0-20 SINGLE CAM. SUB ASSY 1 2 KGJ-M7915-1 1 BRACKET , CAMERA 1 3…
2
6
PCB Camera
Camera
KHU-100-0905
3
4
7
6
11
1
10
8
12
5
2
6
7
9
13
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M7811-00 HOLDER, CAMERA 1
2 KHU-M7812-00 BRACKET,LIGHT 1
3 KGA-M7210-01 CCD CAMERA 1
4 KV7-M7211-00 LENS 095 1
5 KV7-M7600-00 FIDUCIAL LIGHT ASSY. 1
6 $NK-3N NYLON CLIP 2
7 90990-11J001 SCREW PAN HEAD 2 M3X6
8 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
9 91312-05014 BOLT HEX.SOCKET HEAD 2 M5X14
10 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
11 91312-05030 BOLT HEX.SOCKET HEAD 4 M5X30
12 92902-03600 WASHER PLAIN 4
13 92902-05200 WASHER PLAIN 2
3
6

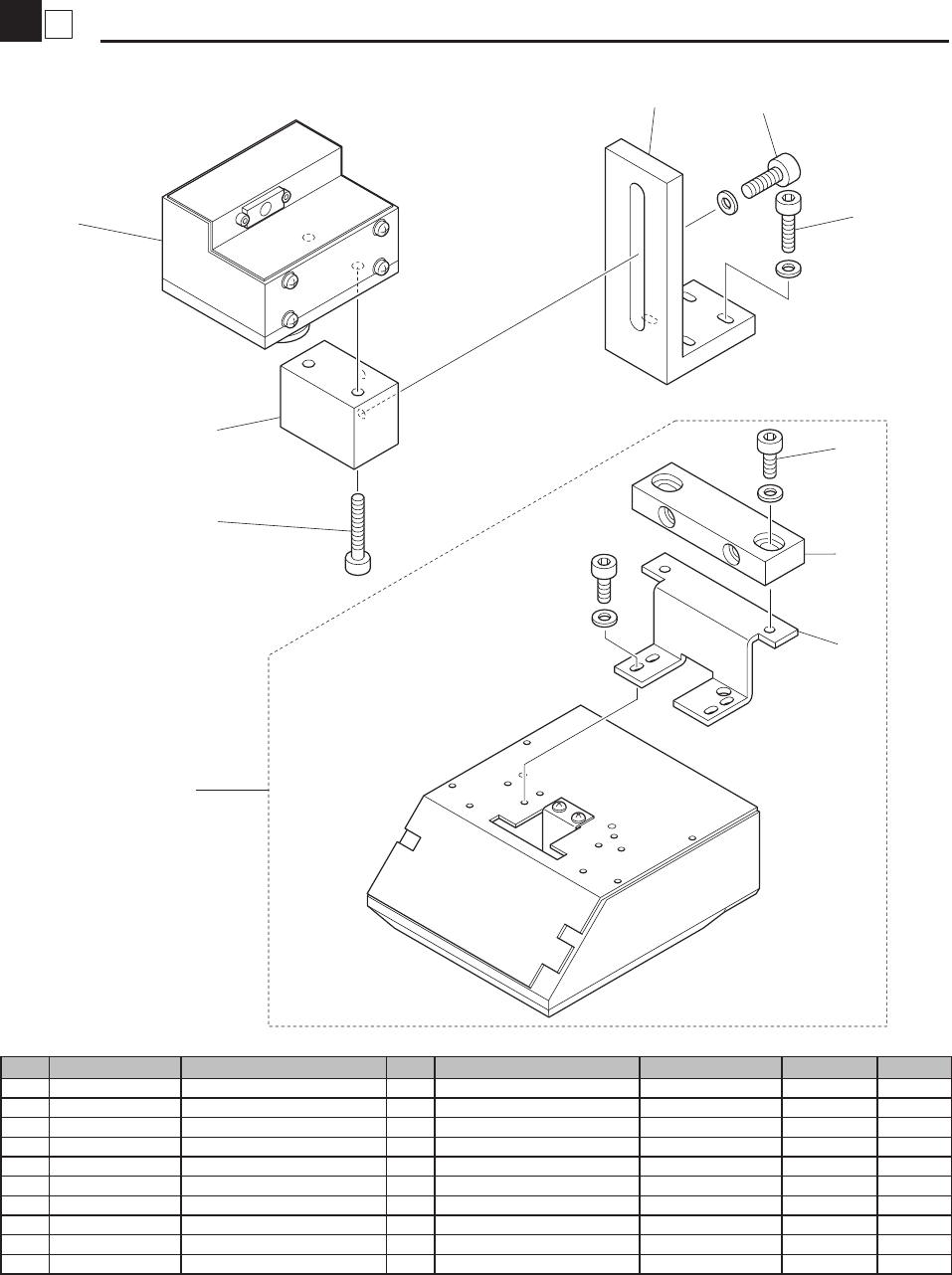

Inspection Camera (Op.)
Camera
KHU-100-0905
1
8
3
10
4
6
5
7
2
9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M72A0-20 SINGLE CAM. SUB ASSY 1
2 KGJ-M7915-11 BRACKET, CAMERA 1
3 KGJ-M7916-00 STAY, CAMERA 1
4 91317-05020 BOLT HEX. SOCKET HEAD 4
5 91317-06018 BOLT HEX. SOCKET HEAD 2
6 91317-05030 BOLT HEX. SOCKET HEAD 2
7 KGJ-M79B0-00 INSP. LIGHT ASSY 1
8 KGJ-M7914-10 BRKT, LIGHT 1
9 KGJ-M7918-01 STAY, LIGHT 1
10 91317-05014 BOLT HEX. SOCKET HEAD 4
1
7

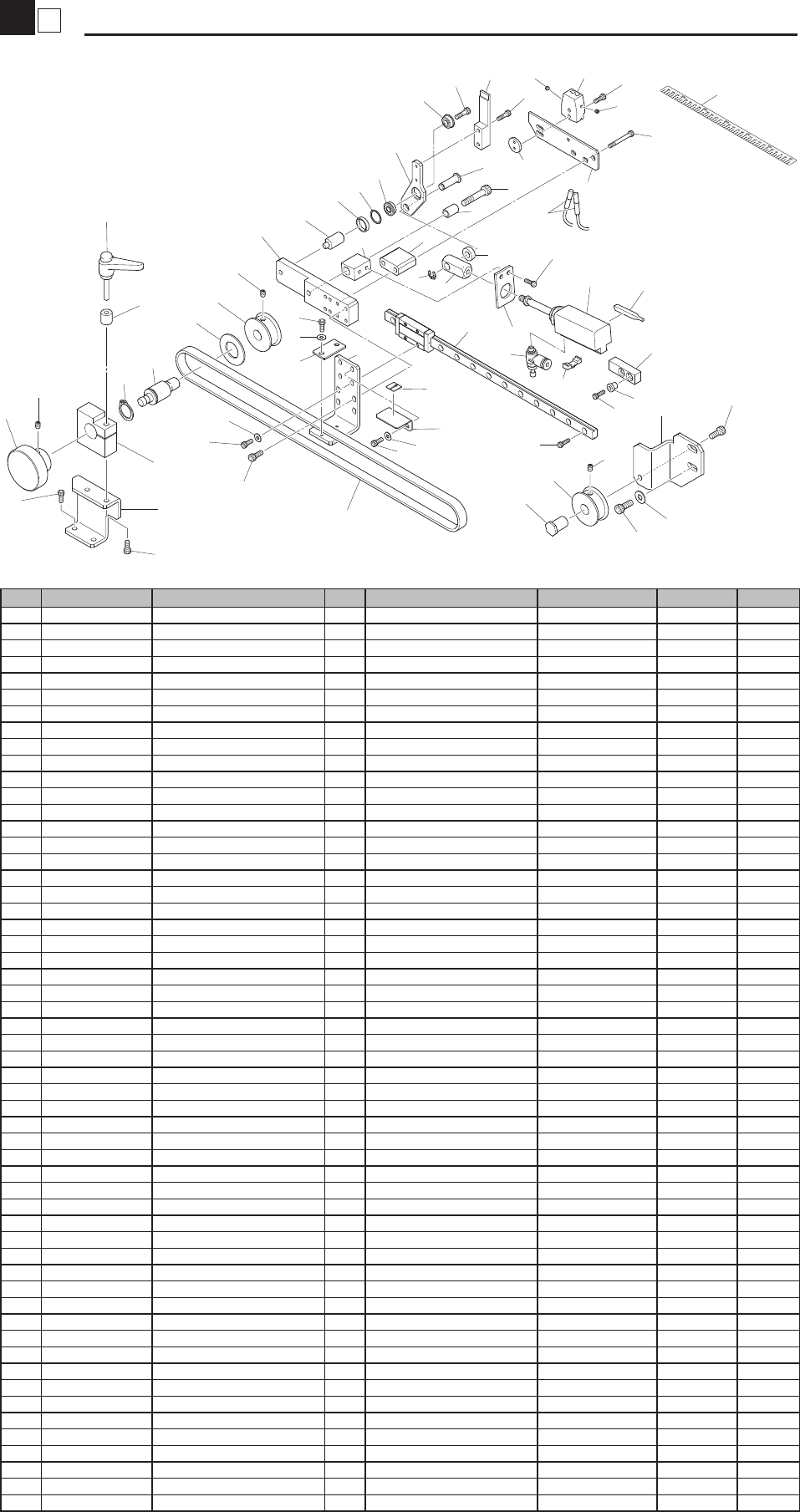

Main Stopper
Conveyor Unit
KHU-100-1002
5
34
33
38
40
6
45
45
2
32
50
41
45
1
4
41
40
30
48
48
3
43
10
9
19
19
7
44
54
29
55
22
28
21
23
26
49
22 20
47
46
25
46
14
36
36
8
11
16
15
40
30
31
12
50
27
41
17
24
42
39
39
18
13
51
35
50
41
53
52
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M9176-00 BELT MS 1
2 KHU-M9183-00 PLATE 1, PULLEY 1
3 KHU-M9184-00 PLATE 2, PULLEY 1
4 KHU-M9185-00 DIAL PLATE 1
5 KHU-M9193-00 LEVER,CLAMP 1
6 KG7-M9190-00 HANDLE 1
7 KHU-M653L-00 SENSOR,MAIN ST 1
8 KGJ-M9139-00 SHIM,to.1 1
9 KGJ-M9172-00 DAMPER 2
10 KGJ-M9173-00 COLLAR,DAMPER 4
11 90990-28J025 WASHER,PLAIN 1
12 KGJ-M9186-01 PLATE,BELT 1
13 KGJ-M9189-00 GUIDE 1
14 KGY-M9161-00 BLOCK,STOPPER 1
15 KGY-M9162-01 MAIN PLATE 1
16 KGY-M9163-00 SHAFT,BRG. 1
17 KGY-M9164-01 BLOCK,COLLAR 1
18 KGY-M9165-01 PALTE, SENSOR 1
19 KGY-M9167-00 CYLINDER 1
20 KGY-M9174-00 NUT,SENSOR 1
21 KGY-M9175-00 COLLAR,SENSOR 1
22 KGY-M9178-00 HINGEE PIN 1 pin&crip
23 90990-41J038 COLLAR 1
24 KGY-M9180-00 PLATE,STOPPER 1
25 KGY-M9181-00 STAY,SENSOR 1
26 90990-41J039 COLLAR 1
27 KHU-M9187-00 PLATE,GUIDE 1
28 KGY-M9187-00 CAP,SYL. 1
29 KGY-M9188-00 HOLDER,CYL. 1
30 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
31 90990-28J068 WASHER,PLAIN 1
32 KV7-M9185-00 HOUSING,SHAFT 1
33 KV7-M9191-00 SHAFT 1 1
34 90990-41J059 COLLAR 1
35 KV7-M9196-02 SHAFT 2 1
36 90933-03J694 BEARING 2
37
38 99009-15400 CIRCLIP : 1
39 92A08-03303 SET SCREW M3X3 2
40 92A08-04306 SET SCREW M4X6 5
41 91312-03008 BOLT HEX.SOCKET HEAD 21 M3X8
42 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
43 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
44 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
45 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
46 91312-04014 BOLT HEX.SOCKET HEAD 1 M4X14
47 91312-04030 BOLT HEX.SOCKET HEAD 2 M4X30
48 91312-05010 BOLT HEX.SOCKET HEAD 3 M5X10
49 91312-06025 BOLT HEX.SOCKET HEAD 1 M4X17
50 92902-03200 WASHER PLAIN 6
51 92902-05200 WASHER PLAIN 2
52 KHU-M9186-00 SEAL, MAIN STOPPER (R) 1
53 KGJ-M7228-00 SEAL 2, BRACKET 1
54 KHU-M653K-00 SENSOR, SET POS 1
55 $SC4-M5A SPEED CONTROLLER 2
