KHU-YCP2_PL - 第27页

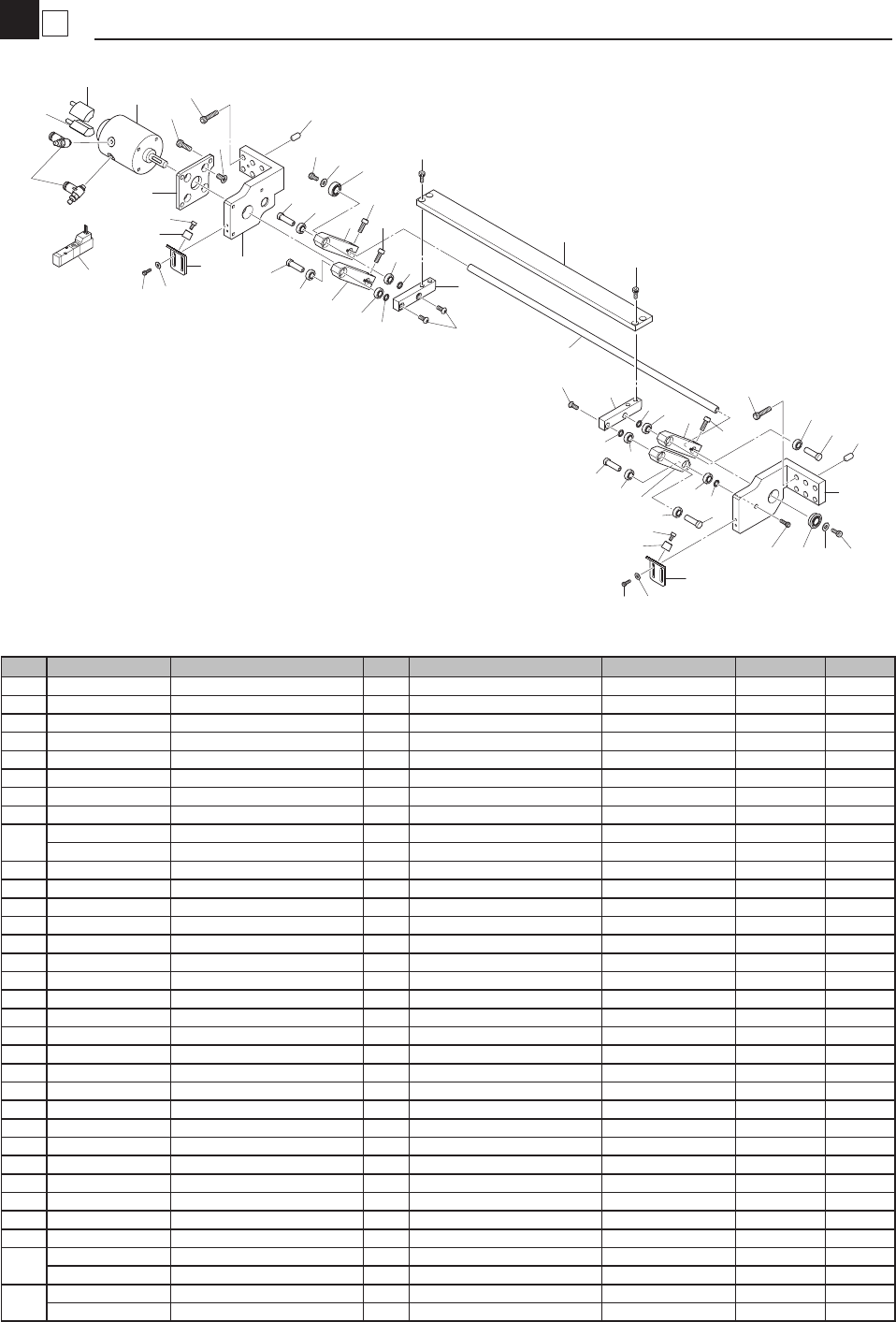

3 7 Edge Clamp(Std. / Op.) Conveyor Unit KHU-100-1002 28 22 28 16 10 28 28 27 2 24 9 3 4 7 14 5 8 15 15 14 5 24 9 12 6 4 3 28 28 30 29 10 26 21 24 23 18 13 25 11 8 23 19 19 23 20 17 12 30 29 26 1 31 24 32 No. Part No. Pa…
2
7
Board Stopper
Conveyor Unit
KHU-100-1002
15
3
29
26
17
21
6
3
3
3
3
19
19
26
4
5
19
7
19
26
4
5
8
15
15
15
16
20
29
24
23
9
18
27
15
15
15
15
15
16
14
14
14
14
12
10
10
10
11
14
13
25
25
20
20
2
1
20
24
22
22
22
30
28
Front & Rear Same Parts
32
31
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M9253-00 SHAFT 1
2 KHU-M9254-01 PLATE 1 1
3 KGJ-M925A-00 PIN 1 5
4 KGJ-M925D-00 BRKT.1,STOPPER 2
5 KG7-M9127-00 STOPPER,LOCATE PIN 2
6 KHU-M9251-00 LEG 1 1
7 KGY-M9251-10 PLATE, ROTARY AC. 1
8 KHU-M9252-00 LEG 2 1
9
KGY-M9255-00 ROTARY AC. 1 Cylinder Only
KHU-M653M-00 FRONT ROTARY AC. ASSY 1 With Sensor
10 KHU-M9256-00 ARM 2 3
11 KHU-M9257-00 ARM 3 1
12 KGY-M9259-00 BAR L 1
13 KGY-M9259-10 BAR R 1
14 90990-29J004 SHIM 5
15 90933-02J126 BEARING 10
16 90933-02J688 BEARING 1
17 90933-03J688 BEARING 1
18 $SC4-M5B SPEED CONTROLLER 2
19 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
20 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
21 91312-04010 BOLT HEX.SOCKET HEAD 1 M4X10
22 91312-04012 BOLT,HEX.SOCKET HEAD 3 M4X12
23 91312-05014 BOLT HEX.SOCKET HEAD 3 M5X14
24 91312-05020 BOLT HEX.SOCKET HEAD 8 M5X20
25 92012-04010 BOLT,BUTTON HEAD 4
26 92902-03200 WASHER PLAIN 4
27 92902-04200 WASHER PLAIN 2
28 98702-05010 SCREW FLAT HEAD 4
29 99480-06012 PIN,PARALLEL 4
30 KHW-M8582-40 VALVE 1
31
KHU-M653R-00 SENSOR,RTY.F/H ASSY 1 CTP-3L FRONT
KHU-M653S-00 SENSOR,RTY.R/H ASSY 1 CTP-3L REAR
32
KHU-M653T-00 SENSOR,RTY.F/L ASSY 1 CTP-3R FRONT
KHU-M653U-00 SENSOR,RTY.R/L ASSY 1 CTP-3R REAR

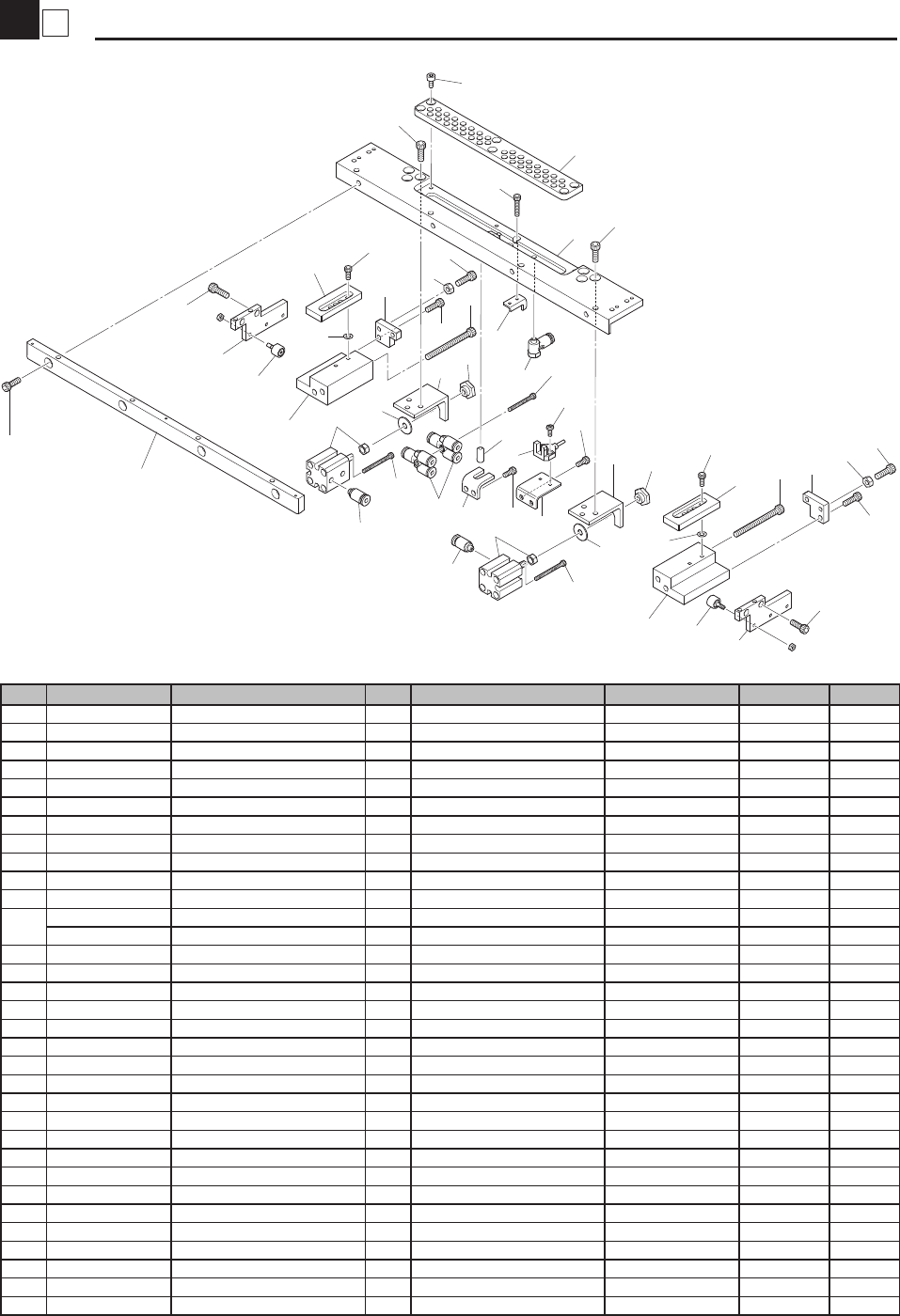

3
7
Edge Clamp(Std. / Op.)
Conveyor Unit
KHU-100-1002
28
22
28
16
10
28
28
27
2
24
9
3
4
7
14
5
8
15
15
14
5
24
9
12
6
4
3
28
28
30
29
10
26
21
24
23
18
13
25
11
8
23
19
19
23
20
17
12
30
29
26
1
31
24
32
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M9231-50 PLATE,EDGE CLAMP 1
2 KHU-M9113-C0 CONV. EDGE PLATE 1
3 KHU-M9232-00 PLATE 1,GUIDE 2
4 KGJ-M3637-00 CAM FOLLWER 1 6
5 KGJ-M9234-00 SPACER,CYL.ROD 2
6 KGJ-M9235-01 BLOCK 1,GUIDE 1
7 KGJ-M9236-01 BLOCK 2,GUIDE 1
8 KGJ-M9238-00 WASHER,CYL.ROD 2
9 KGJ-M9240-01 PLATE,CAM. 2
10 KGJ-M9241-01 PLATE,STOPPER 2
11 KGJ-M9242-00 BRKT.,SENSOR 1
12
90990-29J017 SHIM 4 0.01t
90990-29J018 SHIM 4 0.05t
13 KHU-M653A-91 SENSOR,EDGE CLAMP 1
14 KHU-M9237-01 PLATE,CYL. 2
15 KGJ-M9239-00 CYL.:CDA12-5 2
16 KW3-M9235-00 DOG,EDGE CLAMP 1
17 KW3-M923H-00 BRACKET,PIN 1
18 99480-06014 PIN,PARALLEL 1
19 $TSH4-M5M JOINT 4
20 $UY4 JOINT 2
21 98902-03008 SCREW BINDING HEAD 2
22 91312-03014 BOLT,HEX.SOCKET HEAD 2 M3X14
23 91312-03025 BOLT,HEX.SOCKET HEAD 5 M3X25
24 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
25 91312-04010 BOLT HEX.SOCKET HEAD 12 M4X10
26 91312-04012 BOLT,HEX.SOCKET HEAD 4 M4X12
27 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
28 91312-05014 BOLT HEX.SOCKET HEAD 12 M5X14
29 91312-05050 BOLT HEX.SOCKET HEAD 4 M5X50
30 95302-05600 NUT HEXAGON 2
31 KHU-M9233-50 VACUUM PLATE 1
32 $SL4-M5 JOINT 1
4
7
Matrix Plate
Conveyor Unit
KHU-100-1102
3
8
6
7
8
6
7
10
9
1 2
3
4
5
4
5
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M3351-20 MATRIX PLATE(14x14), 1
2 KHU-M3351-30 MATRIX PLATE(7x7),AL 1
3 KGJ-M3352-A0 MATRIX PIN ASSY 150
4 KGJ-M3352-03 MATRIX PIN(1.5) 2
5 90200-12J010 O-RING 1
6 KGY-M3356-00 ADJUSTER,MATRIX PLAT 8
7 98702-03008 SCREW FLAT HEAD 16
8 99480-05016 PIN,PARALLEL 4
9 KHU-M3350-10 MATRIX P SPARE,14 1 (2011/1/21) MG60041
10 KHU-M3350-20 MATRIX P SPARE,7 1 (2011/1/21) MG60041
