5 7 Main Conveyor Assy-1 Conveyor Unit KHU-100-0905 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KHU-M9103-00 LEG F R 1 2 KHU-M9103-15 LEG F L 1 3 KHU-M9104-00 LEG R R 1 4 KHU-M9104-15 L…
4
7

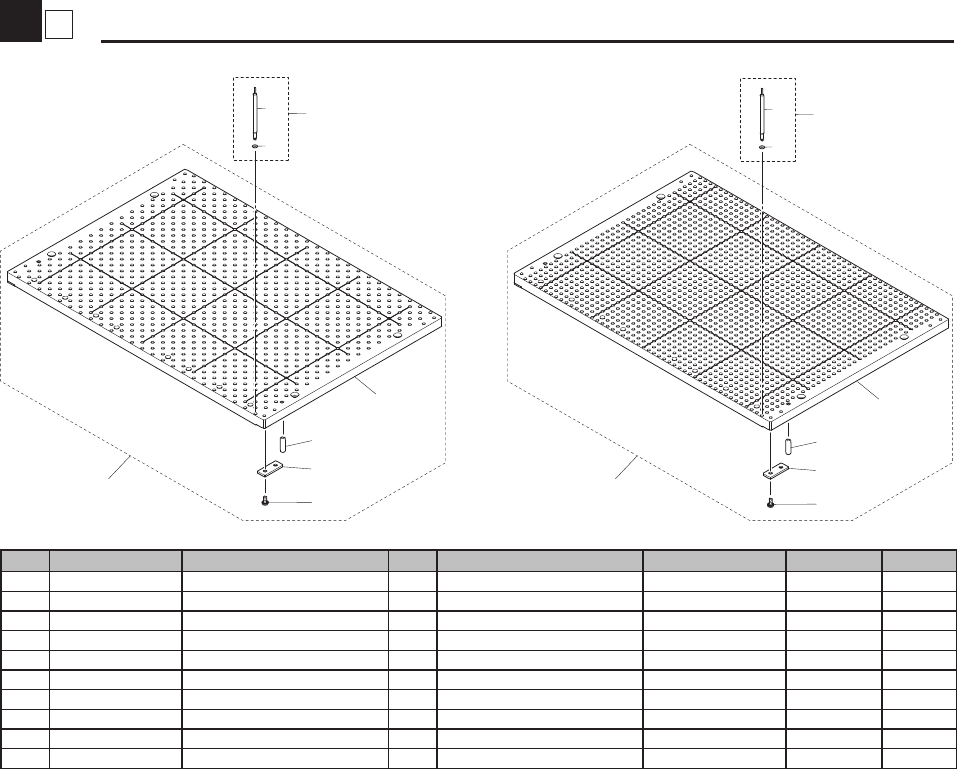

Matrix Plate
Conveyor Unit
KHU-100-1102
3
8
6
7
8
6
7
10
9
1 2
3
4
5
4
5
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M3351-20 MATRIX PLATE(14x14), 1
2 KHU-M3351-30 MATRIX PLATE(7x7),AL 1
3 KGJ-M3352-A0 MATRIX PIN ASSY 150
4 KGJ-M3352-03 MATRIX PIN(1.5) 2
5 90200-12J010 O-RING 1
6 KGY-M3356-00 ADJUSTER,MATRIX PLAT 8
7 98702-03008 SCREW FLAT HEAD 16
8 99480-05016 PIN,PARALLEL 4
9 KHU-M3350-10 MATRIX P SPARE,14 1 (2011/1/21) MG60041
10 KHU-M3350-20 MATRIX P SPARE,7 1 (2011/1/21) MG60041
5
7

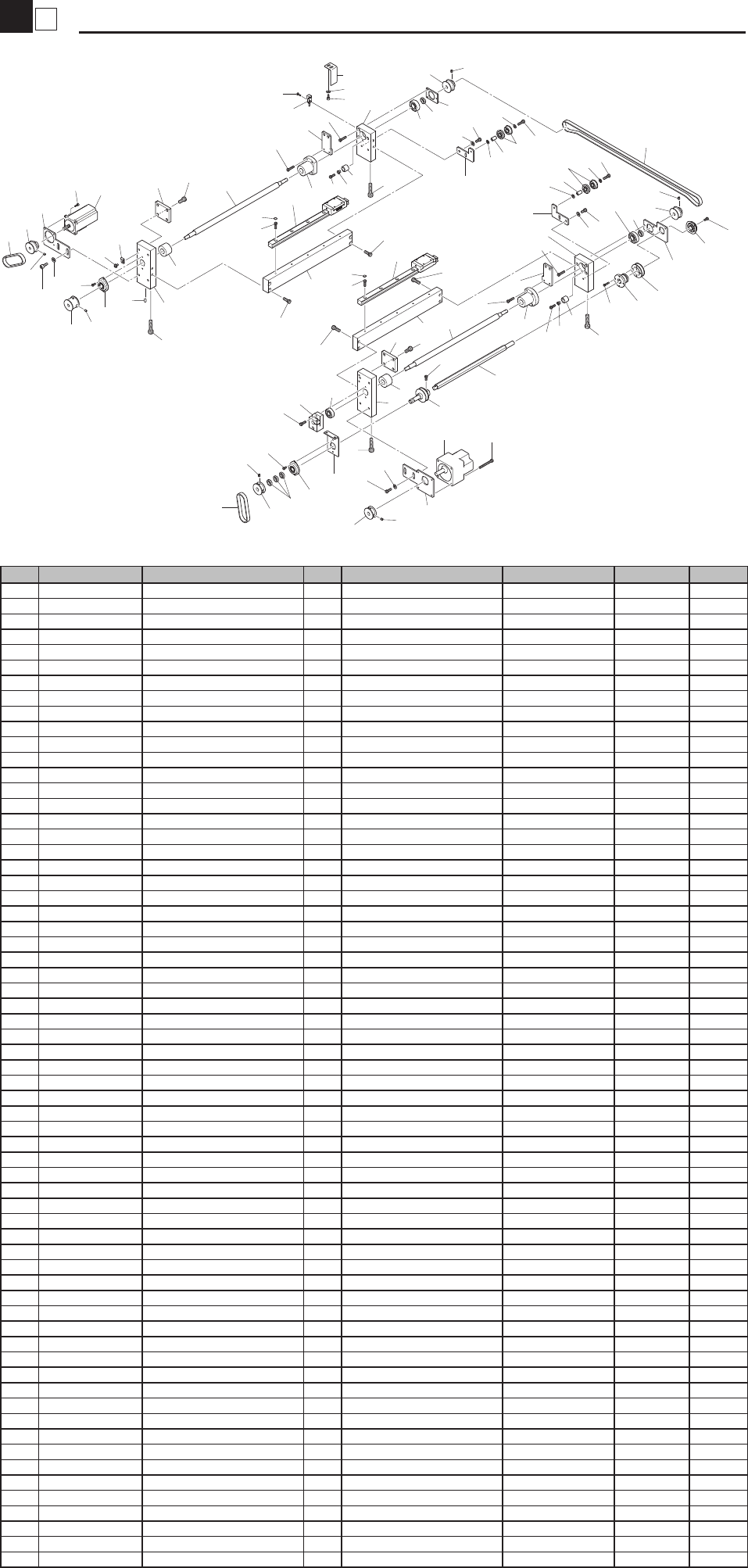

Main Conveyor Assy-1
Conveyor Unit
KHU-100-0905
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M9103-00 LEG F R 1
2 KHU-M9103-15 LEG F L 1
3 KHU-M9104-00 LEG R R 1
4 KHU-M9104-15 LEG R L 1
5 KHU-M9107-00 PLATE 1,MOTOR 1
6 KHU-M9109-00 PLATE 2
7 KHU-M9110-00 PLATE 2,SPLINE 1
8 KHU-M9113-00 STAY,GUIDE 2
9 KHU-M9114-00 DAMPER 1,W 2
10 KHU-M9121-00 BELT 1,W 1
11 KHU-M9132-00 SPLINE 1
12 KHU-M9134-00 BRKT.,TENSION 2
13 KHU-M9138-00 HOUSING, SHAFT 1
14 KHU-M9A00-00 BALL SCREW W 2
15 KG2-M9108-11 COLLAR,CONVEYOR 1
16 KG7-M9111-01 PULLEY 1 2
17 KGJ-M3133-00 COLLAR,DAMPER 2
18 90990-28J024 WASHER,PLAIN 5
19 KGK-M9170-00 DC MOTOR ASSY. 1
20 KGT-M9135-00 PULLEY 1,SPLINE 1
21 KGT-M916U-00 BELT(201-3GT-9) 2
22 KGY-M9102-01 PLATE LEG 2
23 KGY-M9108-00 PLATE,BEARING 1
24 KGY-M9109-00 PLATE 1,SPLINE 1
25 KHU-M9112-00 GUIDE,W2 1
26 KGY-M9115-00 DAMPER 2,W 2
27 KGY-M9126-00 PULLEY 1,MOTOR 1
28 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
29 KH2-M9121-00 BEARING 3
30 90990-41J057 COLLAR 2
31 $NK-2N NYLON CLIP 3
32 90933-01J000 BEARING 1
33 90933-01J200 BEARING 2
34 90933-03J608 BEARING 4
35 90K81-200004 CAP C4 10
36 90990-11J003 SCREW,PAN HEAD W/W 3
37 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
38 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
39 91312-04012 BOLT,HEX.SOCKET HEAD 1 M4X12
40 91312-04014 BOLT HEX.SOCKET HEAD 12 M4X14
41 91312-04016 BOLT,HEX.SOCKET HEAD 6 M4X16
42 91312-04020 BOLT HEX.SOCKET HEAD 6 M4X20
43 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
44 91312-05014 BOLT HEX.SOCKET HEAD 6 M5X14
45 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
46 91312-06014 BOLT HEX.SOCKET HEAD 4 M6X14
47 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
48 92902-05200 WASHER PLAIN 8
49 92902-05600 WASHER PLAIN 4
50 92A08-04304 SET SCREW M4X4 3
51 92A08-04306 SET SCREW M4X6 9
52 99480-06012 PIN,PARALLEL 1
53 KHU-M9142-50 PLATE, MOTOR W 1
54 KG7-M9113-01 PULLEY 3 1
55 KG7-M9112-01 PULLEY 2 1
56 90K55-4W077W AC SERVO MOTOR 1
57 KHU-M9143-50 DOG 1
58 KHU-M653A-A0 SENSOR 1 ORG 1
59 98902-03010 SCREW BINDING HEAD 2
60 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
61 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
62 91312-06030 BOLT HEX.SOCKET HEAD 8
63 92902-04200 WASHER PLAIN 2
64 92902-06200 WASHER PLAIN 2
62
62
59
27
18
48
44
34
30
49
12
12
47
25
47
47
47
8
14
11
39
27
19
43
5
48
44
51
28
18
28
29
21
24
50
38
41
13
32
9
1
22
46
35
8
40
35
46
22
31
36
38
61
55
51
29
51
52
2
9
14
41
6
14
40
42
4
16
17
26
25
40
44
48
3
49
45
34
30
49
45
49
10
51
16
7
18
33
29
20
15
37
42
26
17
40
14
41
6
38
33
51
37
56
53
54
21
64
62
59
58
57
63
60
6
7

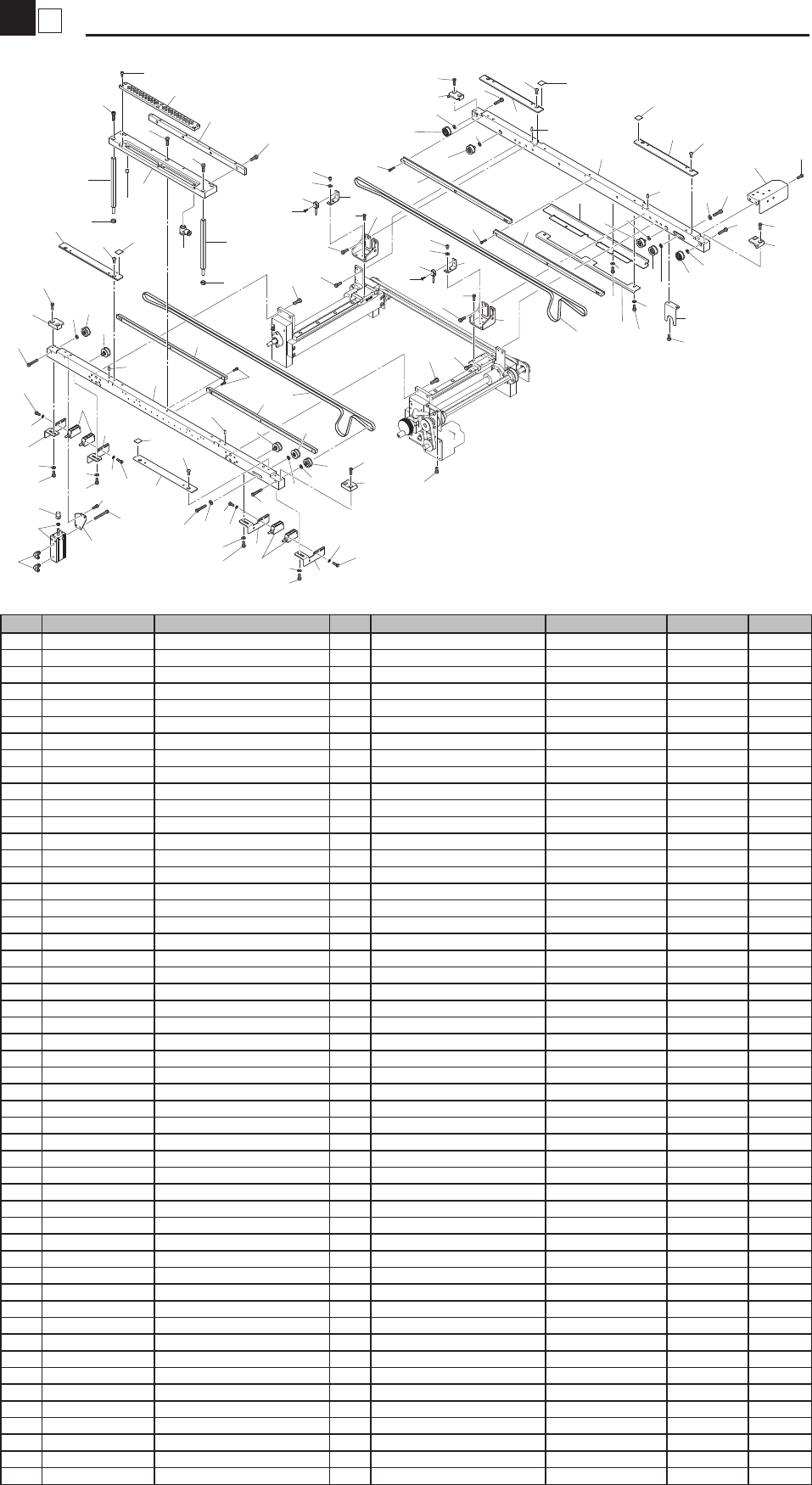

Main Conveyor Assy-2
Conveyor Unit
KHU-100-1002
35
15
36
36
32
36
5
6
44
47
45
6
44
18
28
33
19
23
42
43
17
37
37
29
40
8
41
32
25
26
27
12
34
7
28
18
8
21
41
32
37
42
29
29
40
40
16
32
38
1
22
22
30
43
42
42
19
23
24
38
38
38
39
32
39
32
30
50
41
48
46
49
51
30
22
11
31
32
10
19
19
42
42
37
42
33
32
14
37
28
28
18
18
37
42
7
7
17
33
16
43
43
13
23
23
42
24
42
41
22
4
4
1
33
41 9
9
20
32
41
32
32
29
40
7
2
32
41
3
50
41
48
46
49
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M9123-00 TRANSFER BELT,W 2
2 KHU-M9105-01 FRAME,FRONT 1
3 KHU-M9106-50 FRAME,REAR 1
4 KHU-M9108-50 BRKT., CONV. FRAME 2
5 KHU-M9116-50 MAIN CONV. PLATE 1
6 KHU-M9118-00 HEX. POST 1 2
7 KHU-M9127-00 CONV. PLATE 2 4
8 KHU-M9129-00 STAY SENSOR,L 2
9 KHU-M9129-10 STAY SENSOR,R 2
10 KHU-M9131-00 BRKT.,COLLAR 1
11 KHU-M9136-00 GUARD PLATE,W 1
12 KHU-M9137-00 PLATE, EXIT STOPPER 1
13 KHU-M9140-01 GUARD PLATE, W 2 1
14 KHU-M9141-00 BRKT.,W HNS. 1
15 KHU-M9113-C0 CONV. EDGE PLATE 1
16 KGJ-M9118-00 GUIDE 1,END 2
17 KGJ-M9119-00 GUIDE 2,END 2
18 KGJ-M9141-00 TAPE,CONV. 4
19 KGS-M9140-A0 PULLEY CONV.ASSY. 4
20 KHU-M653H-00 SENSOR CONY ENT 2
21 KHU-M653J-00 SENSOR CONY EXIT 2
22 KGY-M9122-00 GUIDE,W BELT 4
23 KV1-M9140-A0 PULLEY CONV.ASSY. 4
24 KV7-M9140-A0 PULLEY CONV.ASSY. 2
25 KV7-M9282-00 STOPPER,SUB 1
26 KV7-M9283-00 CYL.,YMDA16X35 1
27 $TL4-M5 JOINT 2
28 92012-04010 BOLT,BUTTON HEAD 8
29 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
30 91312-03012 BOLT,HEX.SOCKET HEAD 12 M3X12
31 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
32 91312-04010 BOLT HEX.SOCKET HEAD 31 M4X10
33 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
34 91312-04040 BOLT HEX.SOCKET HEAD 2 M4X40
35 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X20
36 91312-05020 BOLT HEX.SOCKET HEAD 5 M5X13
37 91312-05025 BOLT HEX.SOCKET HEAD 6 M5X25
38 91312-06014 BOLT HEX.SOCKET HEAD 8 M6X14
39 91312-06016 BOLT HEX.SOCKET HEAD 8 M6X16
40 92902-03200 WASHER PLAIN 8
41 92902-04200 WASHER PLAIN 17
42 92902-05600 WASHER PLAIN 10
43 99480-04010 PIN PARALLEL: 4X10 8
44 95302-06600 NUT HEXAGON 2
45 KHU-M9144-50 VACUUM PLATE 1
46 KHU-M9145-50 BRKT.,SENSOR 2
47 K40-M8598-00 PLUG 1 1
48 KHU-M653P-00 SENSOR 1
49 90169-02JA08 SCREW BINDING HEAD 4 M2.5X8
50 91312-04005 BOLT HEX.SOCKET HEAD 4 M4X5
51 $SL6-01 JOINT 1
