8 7 Option (PCB Push) Conveyor Unit KHU-100-0905 7 3 10 4 7 9 1 2 8 8 5 6 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KHU-M9402-00X PLA TE 1 2 KHU-M9403-00X DAMPER 1 3 KHU-M9404-00X HOL…
7
7

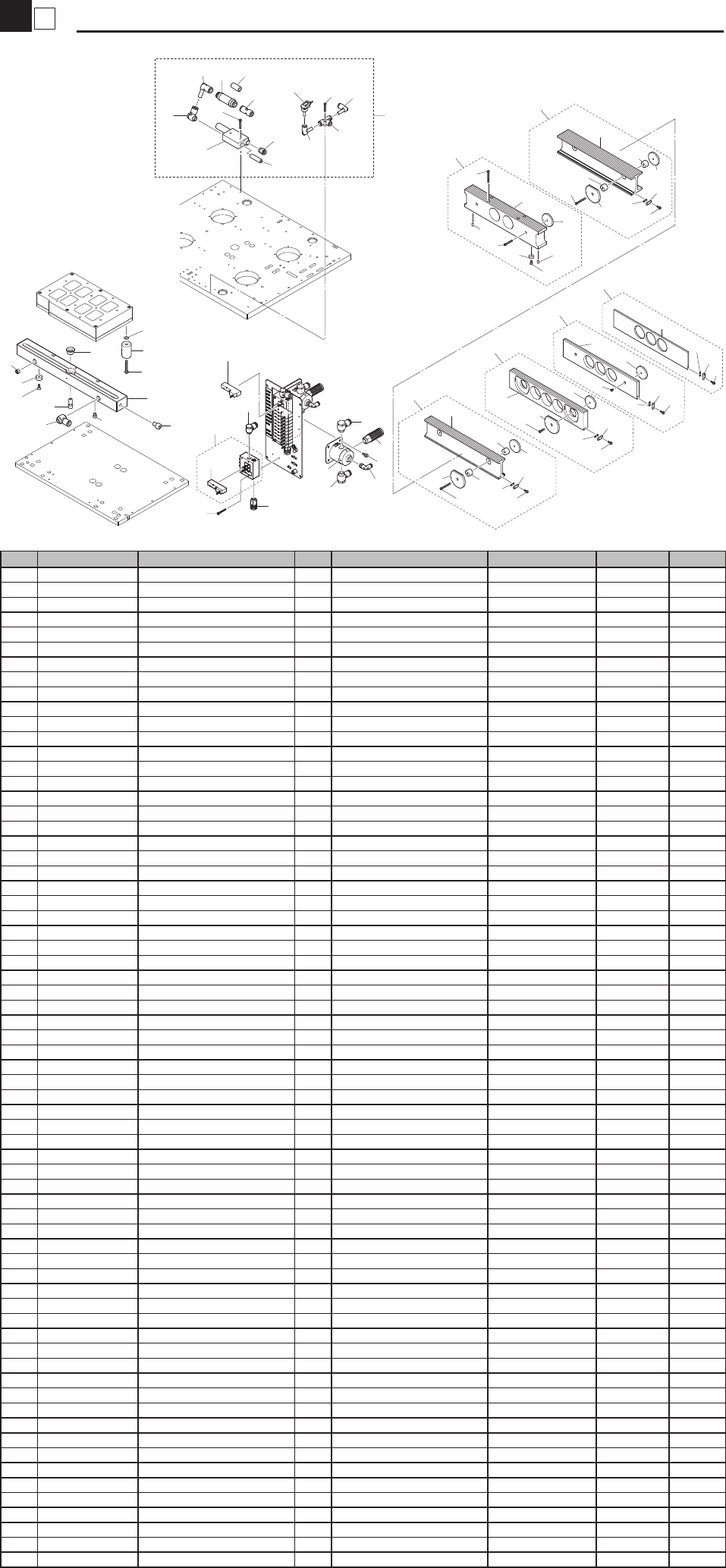

Option (PCB Vacuum, PCB Support)
Conveyor Unit
KHU-100-1002
6
2
7
55
4
11
3
14
15
54
62
61
60
50
24
23
51
22
16
18
64
58
17
19
65
67
63
50
8
10
9
5
13
1
12
23
21
25
26
27
28
29
30
33
56
31
36
41
38
53
43
37
41
40
39
38
37
55
49
58
54
32
34
35
41
43
40
39
49
46
52
38
45
44
41
41
57
49
46
45
49
46
48
47
45
49
59
20
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M930A-50 PCB VACUUM TABLE ASSY 1
2 KGR-M9933-00 INLINE FILTER 1
3 KHU-M653N-00 SENSOR, PCB VCM 1
4 KV8-M9213-00 EJECTOR 1
5 $SL10-02 JOINT 1
6 $ULA10 JOINT 1
7 $USD10-8 JOINT 1
8 $UT8 JOINT 1
9 $TS8-02 JOINT 1
10 $ULAD8-6 JOINT 1
11 $ULA8 JOINT 1
12 KV8-M9213-A0 SPARE FILTER 1
13 KGR-M9933-F0 FILTER,SPARE 1
14 90990-29J014 SHIM 1 0.01t
15 KGY-M94A2-00 BLOCK,SUPPORT 2
16 KGY-M94A3-00 VACUUM PAD 1
17 KGY-M94A4-00 FITTING,PAD 1
18 KGY-M94A7-00 MAGNET 2
19 $SLH8-01 JOINT 1
20 KHW-M8582-40 VALVE 1 SPARE
21 KV8-M9212-00 VALVE 1
22 $KM-23 MUFFLER 1
23 $SL8-02 JOINT 2
24 $TL4-01 JOINT 1
25 KHU-M3301-00 SUPPORT 38 ASSY 1
26 KHU-M3302-00 SUPPORT 50 ASSY 3
27 KHU-M3303-00 SUPPORT 30 ASSY 1
28 KHU-M3304-00 SUPPORT 20 ASSY 1
29 KHU-M3305-00 SUPPORT 10 ASSY 1
30 KHU-M3306-00 SUPPORT 05 ASSY 1
31 K98-M9213-10 MAGNET 2
32 99480-05010 PIN,PARALLEL 1
33 99480-06012 PIN,PARALLEL 1
34 KGY-M94A7-00 MAGNET 2
35 KHU-M3311-00 BLOCK 38 1
36 KHU-M3312-00 BLOCK 50 1
37 90990-41J090 COLLAR 4
38 KGY-M3331-00 PLATE, MAGNET 6
39 KGY-M3342-00 PLATE 1, LOCK 4
40 KHU-M3343-00 PLATE 1, SIM 4
41 K98-M9213-10 MAGNET 8
42 KHU-M3313-00 BLOCK 30 1
43 90990-41J091 COLLAR 4
44 KHU-M3314-00 BLOCK 20 1
45 KGY-M3344-00 PLATE 2, LOCK 6
46 KHU-M3345-00 PLATE 2, SIM 6
47 KHU-M3315-00 BLOCK 10 1
48 KHU-M3316-00 BLOCK 05 1
49 91312-03006 BOLT HEX.SOCKET HEAD 12 M3X6
50 91312-03030 BOLT,HEX.SOCKET HEAD 6 M3X20
51 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
52 91312-04014 BOLT HEX.SOCKET HEAD 2 M4X14
53 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
54 91312-04030 BOLT HEX.SOCKET HEAD 8 M4X30
55 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
56 91312-04050 BOLT HEX.SOCKET HEAD 4 M4X50
57 98702-04008 SCREW,FLAT HEAD (+) 2
58 98702-04012 SCREW FLAT HEAD 4
59 KGT-M8582-00 VALVE 1
60 $SL8-01 JOINT 1
61 $KM-11 MUFFLER 1
62 KG2-M8582-40 VALVE SPARE
63 KHU-M9351-00 BLOCK, MANUFOLD 1
64 K40-M8598-00 PLUG 1 1
65 90990-43J009 PIN 2
66 92A08-03304 SCREW, SET 1
67 91312-08012 BOLT HEX.SOCKET HEAD 2
8
7

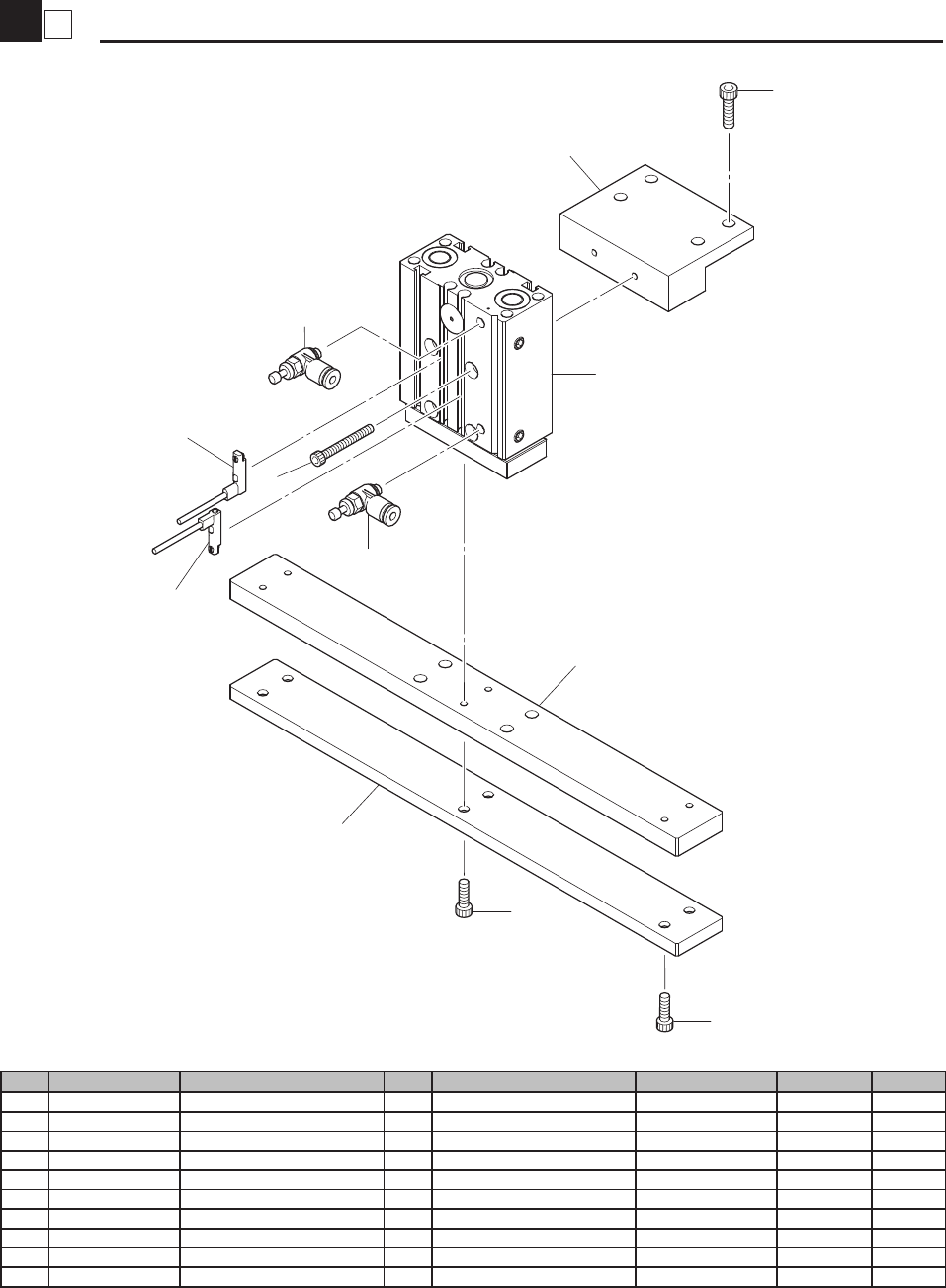

Option (PCB Push)
Conveyor Unit
KHU-100-0905
7
3
10
4
7
9
1
2
8
8
5
6
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M9402-00X PLATE 1
2 KHU-M9403-00X DAMPER 1
3 KHU-M9404-00X HOLDER,CYL. 1
4 KW3-M9401-00X CYLINDER 1
5 KHU-M653B-10X SENSOR PCB PRE UP 1
6 KHU-M653B-20X SENSOR PCB PRE DOWN 1
7 $SC4-M5A SPEED CONTROLLER 2
8 91312-04012 BOLT,HEX.SOCKET HEAD 6 M4X12
9 91312-04035 BOLT HEX.SOCKET HEAD 2 M4X35
10 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
1
8
Control Box
Control Box
KHU-100-1002
16
13
12
2
23
18
19
8
17
6
4
25
7
9
10
3(1A)
5
15
1
22
1622
14
21
20
3(1B)
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M4110-50 BOX ASSY.C/R 1
2 KGA-M4510-00 MOTHER BOARD ASSY 1
3 KM5-M5840-05 SERVO BOARD ASSY 2
4 KW3-M4209-31 SYSTEM UNIT ASSY 1
5 KJ0-M5810-W7 DRIVER BOARD ASSY 1
6
KGJ-M441H-03 VISION BOARD ASSY 1 With Inspection Camera
KGJ-M441H-12 VISION BOARD ASSY 1
7 KW3-M4220-11 APPL BOARD ASSY 1 No.111
8 KM5-M5882-20 D.POWER BOARD ASSY 1
9 KJ0-M4134-10 PANEL NO SERVO 1
10 KJ0-M5810-G7 DRIVER BOARD ASSY 1
11
12 KGS-M5303-00 SW POWER DC5 1 5V,150W
13 KGS-M5303-10 SW POWER DC12 1 12V,150W
14 KL0-M53E2-00 TRANS 1 ASSY KL0 1
15 KM5-M445E-10 CAP1 1
16 KGA-M4185-10 FAN MOTOR ASSY 2
17 KHA-M11B0-C0 LABEL CONTROLLER 1
18 90K41-000712 LABEL ALERT 1
19 KV1-M6417-00 SEAL CAUTION1 1
20 KGA-M4117-00 PANEL POWER 1
21 90990-11J003 SCREW,PAN HEAD W/W 2
22 97602-04330 SCREW,PAN HEAD W/W 1
23 $NJ-16 UNIVERSAL BUSH 1
24
25 KW3-M4256-00 DVD-ROM DRIVE 1
