2 Safety User M anual V 1.15 - P roductivity Lift 2.4 ESD guidelines Software version V 40.1 1 Edition 01/2001 12 0DLQWHQ DQFHDQGFO HDQLQJ $7 7 ( 1 7 , 2 1 In order to maintain or c lean the de vice the installat ion s…
User Manual V 1.15 - Productivity Lift 2 Safety
Software version V 40.11 Edition 01/2001 2.3 Other dangers
11
7KHIROORZLQJPXVWDOZD\VEHFRPSOLHGZLWK
1. A responsible person must keep the key to this switch somewhere where it is inaccessible to
others.
2. The "qualified person" or the "service engineer" may only use the key switch.
3. The key switch may only be used for the above mentioned purposes.
4. The safety key switches must be returned to service for the normal operating mode.
5. The person responsible must remove the key again.
6. The person responsible must lock the key away again.
127(
For safety reasons, the control cabinet doors can only be shut if the key has been removed from
the switch. In order to avoid damaging the key, particular attention must be paid to removing the
key carefully.
6HWXSPRGH
:$51,1*
The fact that some safety equipment is taken out of service makes the system freely accessible.
This entails the risk of injury to people or damage to the system through tampering. Therefore it
is essential to ensure that during movements performed in the special operating mode "Installa-
tion", the equipment is not tampered with and that there are no objects in it (e.g. tools). The "qual-
ified person" or the "service engineer" in the installation operating mode may only operate the
equipment.
2 Safety User Manual V 1.15 - Productivity Lift
2.4 ESD guidelines Software version V 40.11 Edition 01/2001
12
0DLQWHQDQFHDQGFOHDQLQJ
$77(17,21
In order to maintain or clean the device the installation safety, described in 2.5.1, has to be fixed
and the device as well as air pressure of the filter regulation have to be switched off. The main
switch has to be locked with a personal padlock in order to avoid an unintentional switch on. The
subsequent requisite work must be carried out with due care and attention. In the small interior
space of the device, there is a slight risk that the person carrying out the work could scratch them-
selves on corners or edges, although the production process does endeavour to ensure that the
parts have no sharp edges or corners.
'LVFRQQHFWLQJFRPSUHVVHGDLUVXSSO\
:$51,1*
Do not loosen a compressed air line without making sure that the corresponding air service unit
is pressureless by opening the hand slide discharge valve or alternatively by closing the main
valve of the compressed air supply.
&RGHQXPEHU
The code number requested in the configuration may only be known to one authorised person and
may not be passed on by this person to unauthorised persons.
5HVLGXDOKD]DUGVIRUREMHFWV
There are no other factors that pose a threat to objects, property or the environment.
(6'JXLGHOLQHV
Please comply with the notes concerning the ESD guidelines as they are specified in the operating
instructions of the placement machine.
User Manual V 1.15 - Productivity Lift 2 Safety
Software version V 40.11 Edition 01/2001 2.5 Transport and assembly locks
13
7UDQVSRUWDQGDVVHPEO\ORFNV
'LVFRQQHFWLQJFRPSUHVVHGDLUVXSSO\
:$51,1*
Do not loosen a compressed air line without making sure that the corresponding air service unit
is pressureless by opening the hand slide discharge valve or alternatively by closing the main
valve of the compressed air supply.
/RFNLQJWKHOLIWEHOW
:$51,1*
The installation aid shown in the figures serves to lock the lift during servicing, maintenance work,
for example, when changing the toothed belt, and during transport. Any activity that involves a per-
son having to intervene in the lift area in any way should result in the following locking measures
being taken as described below. After the activities are finished and before the device is turned
on again all securities have to be removed and to be deposed at the right place.

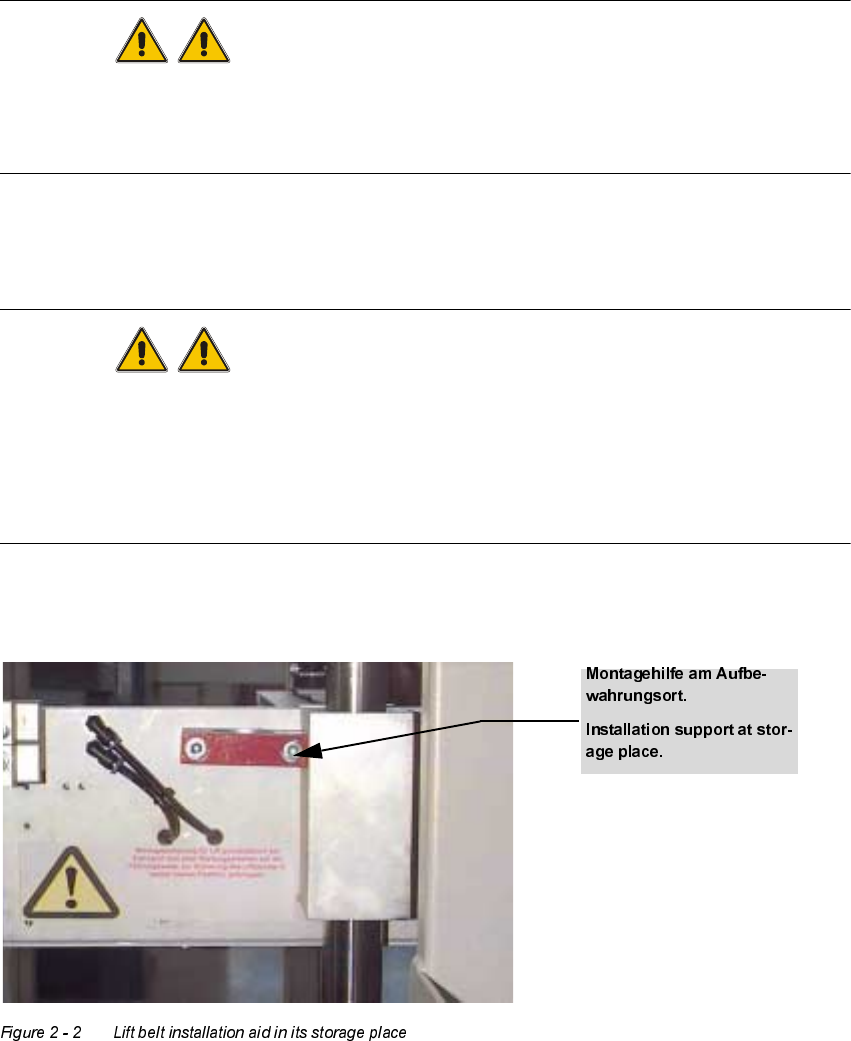

1. The following picture shows where the installation aid is kept when it is not in use.
