5 Configuration User M anual V 1.15 - Productivity Lift 5.5 Max. t ime un-belt Software version V 40. 1 1 Edition 01/2001 36 0D[W LPHXQE HOW If a PCB ha s not b een trans ferred f rom the c onveyor to the li ft a…
User Manual V 1.15 - Productivity Lift 5 Configuration
Software version V 40.11 Edition 01/2001 5.3 Interface 2
35

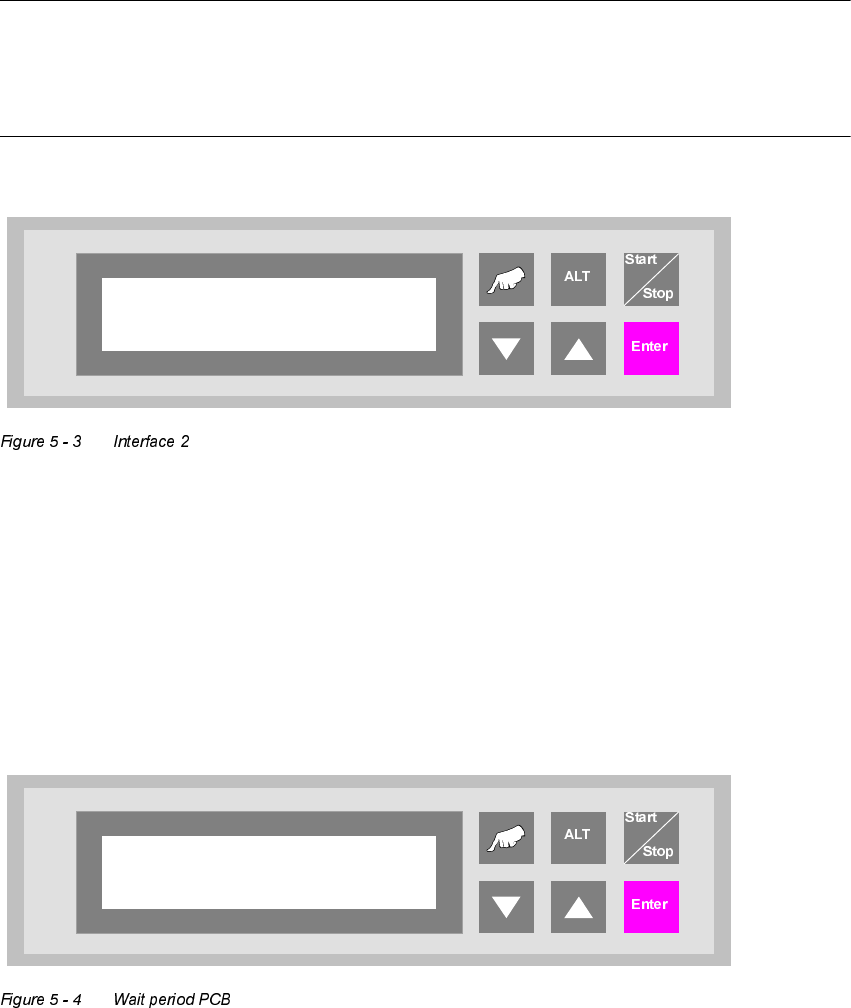

,QWHUIDFH
"Interface 2" defines the interface at the outlet (n+1) to subsequent systems.
The available settings are "SMEMA" and "Siemens".
127(
The device is equipped with a defined interface. The interface shown in the display must conform
to the interface installed at the interface module AMI 2-x. It is possible to change the interface sub-
sequently, but this may only be done by an authorised person.
:DLWSHULRG3&%
Time buffer for transferring a printed circuit board. Once this period has elapsed, the belt drive is
switched off and a fault indication is output since no PCB has arrived at the light barrier.
The unit of value is [0.01s] and the setting range is between 300 and 9999, which corresponds to
a time of 3 s to 99.99 s.
Interface 2
Siemens
Wait period PCB
2000
5 Configuration User Manual V 1.15 - Productivity Lift
5.5 Max. time un-belt Software version V 40.11 Edition 01/2001
36

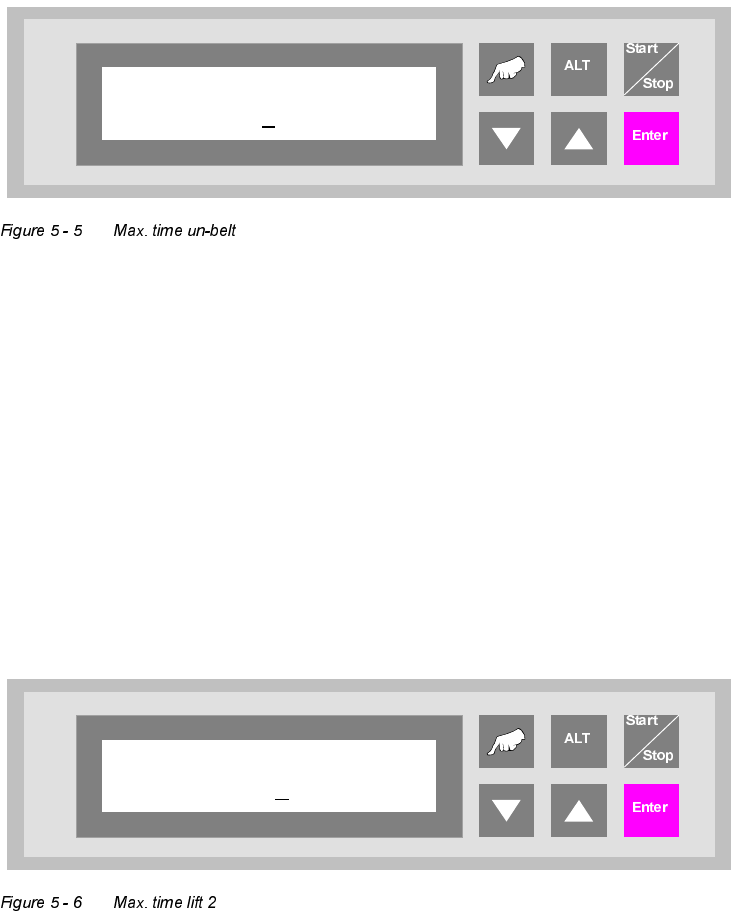

0D[WLPHXQEHOW
If a PCB has not been transferred from the conveyor to the lift after the adjusted time, the auto-
matic operating mode is stopped and the error signal shows "PCB annuated". The PCB is only
then transferred from the conveyor to the following lift when the error signal is confirmed with the
"Enter" cursor through the user.
The unit of the value is [s] and the adjustment area is 0s to 9999s, whereas the function is switched
off for the value 0s.
0D[WLPHOLIW
If the ramp up mode setting is "1 to 0", a PCP can be buffered on track 3 until the transport on
track 1 or track 2 is available again. The selected time defines the waiting period. If the selected
time is exceeded, the PCP is transferred to the buffer on track 3 of the underfloor conveyor. De-
pending on the availability of track 1 and 2 the PCP is transported reverse into the Productivity Lift
for further processing.
The dimension is in [s]. The setting range is between 0 - 600 s.
The feature is turned off by entering "0".
Max. time un-belt
0
Max. time lift 2
000
User Manual V 1.15 - Productivity Lift 5 Configuration
Software version V 40.11 Edition 01/2001 5.7 Code number
37

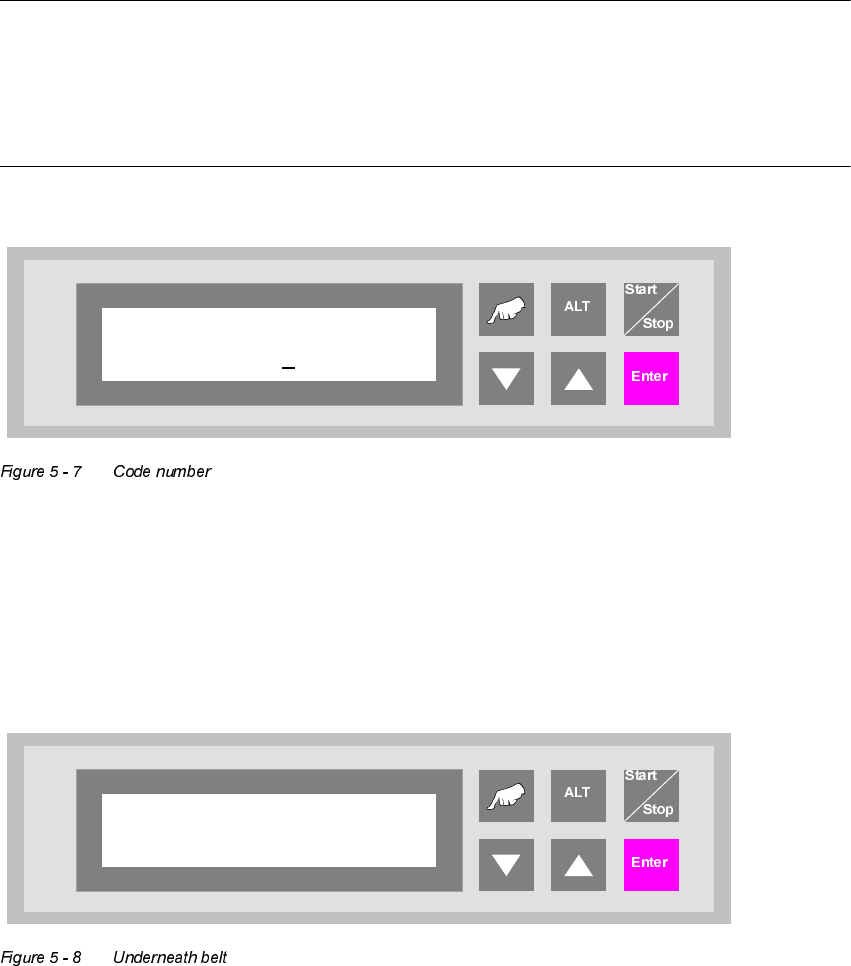

&RGHQXPEHU
127(
All the settings after this menu affect the basic parameters of the device and are generally only
defined during initial installation. For this reason, access is protected by code number entry. The
code number requested in the configuration may only be known to one authorised person, and
may not be passed on to unauthorised persons.
8QGHUQHDWKEHOW
If the lift is installed as the end module in the line, it no longer has an underfloor conveyor. This
function must then be disabled in this menu.
Code number
0000
Underneath belt
Turned off
