User Manual V 1.15 - Productivity Lift 5 Configuration
Software version V 40.11 Edition 01/2001 5.17 Reference width 3
45
5HIHUHQFHZLGWK
This setting defines the reference width of the Underfloor Conveyor. This setting allows the match-
ing of displayed width and actual width of the Underfloor Conveyor. By changing the setting the
width is increased or decreased. A typical value is between 0480 - 0490.
This menu item is only available, if the function "Width adjusting 3" is activated (chapter 5.13). The
standard configuration is equipped with an automatic width setting of the Underfloor Conveyor.
127(
If the lift is implemented as an end module, this menu does not appear.
The unit of value is [0.1mm].
0D[ZLGWKERDUG
Here the maximum transport width permissible for the system is set. The unit of value is [0.1mm].
The setting range is between 500 and 4600, which corresponds to a width of 50mm to 460mm.

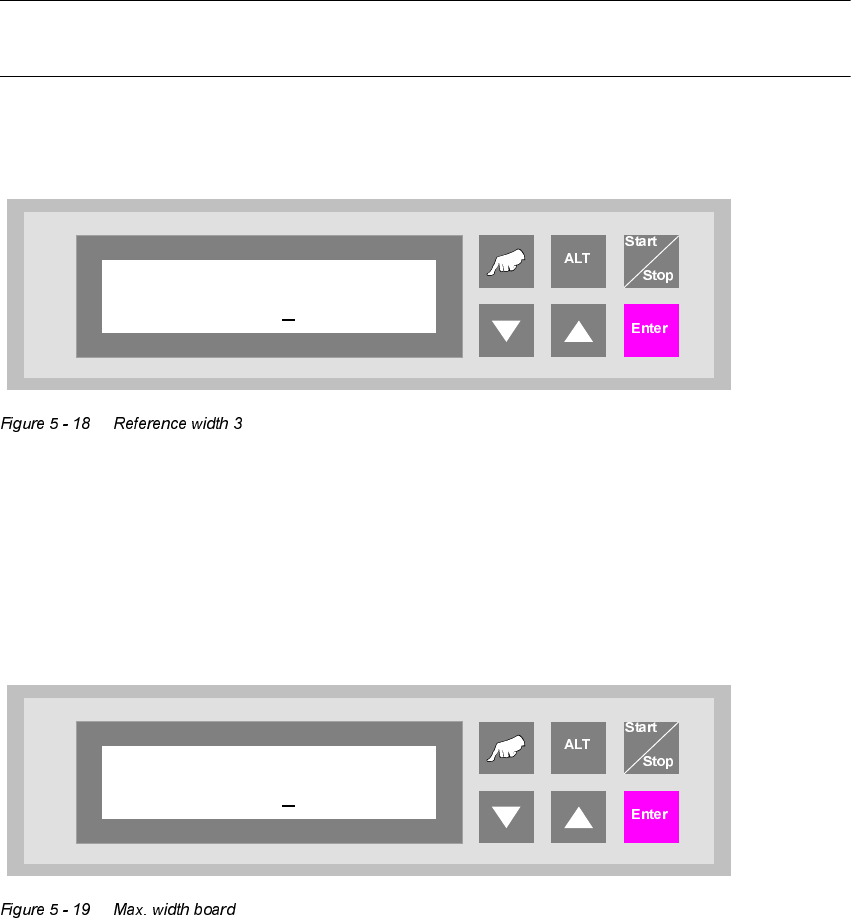

Reference width 3
0490
Max. width board
2160
5 Configuration User Manual V 1.15 - Productivity Lift
5.19 Start speed down Software version V 40.11 Edition 01/2001
46
6WDUWVSHHGGRZQ
The speed at which the lower lift starts up when travelling downwards and which is reverted to by
braking just before reaching the final position.
The setting is a percentage of the motor rating. The value should be between 23% and 27%. The
default setting are 25%.
6WDUWVSHHGXS
The speed at which the lower lift starts up when travelling upwards and which is reverted to by
braking just before reaching the final position.
The setting is a percentage of the motor rating. The value should be between 20% and 25%. The
default setting are 20%.

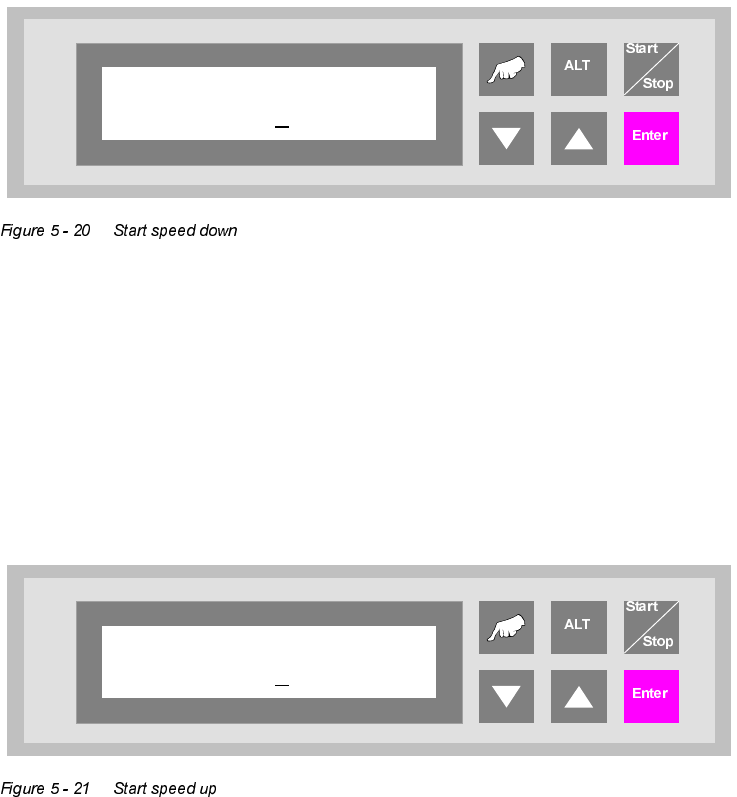

Start speed down
025
Start speed up
020
User Manual V 1.15 - Productivity Lift 5 Configuration
Software version V 40.11 Edition 01/2001 5.21 Travelling speed
47
7UDYHOOLQJVSHHG
The speed at which the lower lift travels between the two final positions. The value to be entered
is a percentage value of the entire motor output.
The setting is a percentage of the motor rating. The default setting are 80%.
5XQRXWWLPHGRZQ
A time that can be set to secure the positioning of the lower lift in its final lower position. This guar-
antees that the lift has reached its final position before a PCB is transferred or delivered.
The unit of value is [0.01s]. The default setting are 002.
Travelling speed
080
Run out time down
002
