7 Manual mode User Manual V 1.15 - Productivity Lift
7.2 Manual mode 2 - Lift 2 Software version V 40.11 Edition 01/2001
64

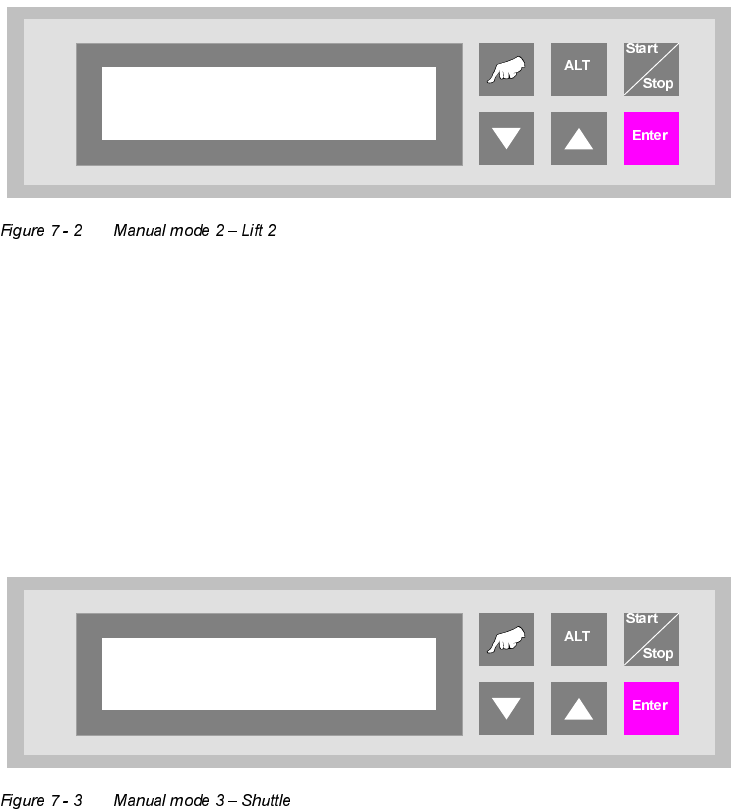

 0DQXDOPRGH/LIW
Test function for the shuttle.
The cursor keys "▲" and "▼" can be used to move the shuttle upwards and downwards, while the
"ALT" key can be used to switch the belt drive on for as long as the key is pressed down. The
shuttle can only be moved upwards if top conveyor is in its upper position.
The "Enter" key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the "Start/Stop" key.
 0DQXDOPRGH6KXWWOH
Test function for the shuttle.
The cursor keys "▲" and "▼" can be used to move the shuttle in back and forth direction.
The "Enter" key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the "Start/Stop" key.
Manual mode 2
Lift 2
Manual mode 3
Shuttle
User Manual V 1.15 - Productivity Lift 7 Manual mode
Software version V 40.11 Edition 01/2001 7.4 Manual mode 4 - Underneath belt
65

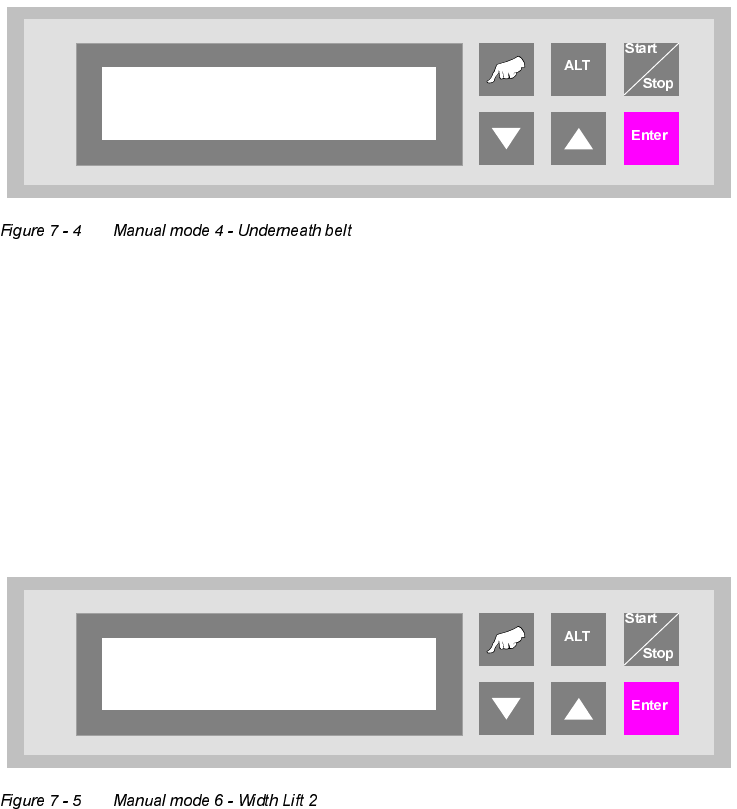

 0DQXDOPRGH8QGHUQHDWKEHOW
Test function for the underfloor conveyor.
The cursor key "▲" can be used to switch on the drive of the first segment (inlet) and the "▼" key
to switch on that of the second segment (outlet).
The "Enter" key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the "Start/Stop" key.
 0DQXDOPRGH:LGWK/LIW
Function to set the width for the shuttle.
The cursor keys "▲" and "▼" can be used to increase and/or decrease the width of the conveyor.
The "Enter" key can be used to proceed to the next test function. To cancel the procedure, exit
the menu using the "Start/Stop" key.
Manual mode 4
Underneath belt
Manual mode 6
Width Lift 2
7 Manual mode User Manual V 1.15 - Productivity Lift
7.6 Manual mode 7 - Width belts Software version V 40.11 Edition 01/2001
66
 0DQXDOPRGH:LGWKEHOWV
Function to set the width for the underfloor conveyor.
The cursor keys "▲" and "▼" can be used to increase and/or decrease the width of the conveyor.
The "Enter" key can be used to return to the first test function. To cancel the procedure, exit the
menu using the "Start/Stop" key.
Manual mode7
Width belts
