47
Technical Data
Transport and Delivery Configuration
Transport dimensions and weight
Crate for the machine Crate for the CO changeover tables
Length
Width
Height
2570 mm
1860 mm
1600 mm
1700 mm
1200 mm
1300 mm
Weight Dispatch within Europe Dispatch overseas
Placement machine 2240 kg 2604 kg
Component
changeover table
370 kg 450 kg
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Fork length
Lifting power
Clear fork width
min. 1800 mm
min. 3000 kg
min. 350 mm
Description
The machine and the compo-
nent changeover tables will
be supplied on two pallets on
mainland Europe. They will
be dispatched overseas in
two robust wooden crates.
Configuration when
delivered
• Both keyboards and the
monitors are discon-
nected.
• Both main fault indicators
are disconnected.

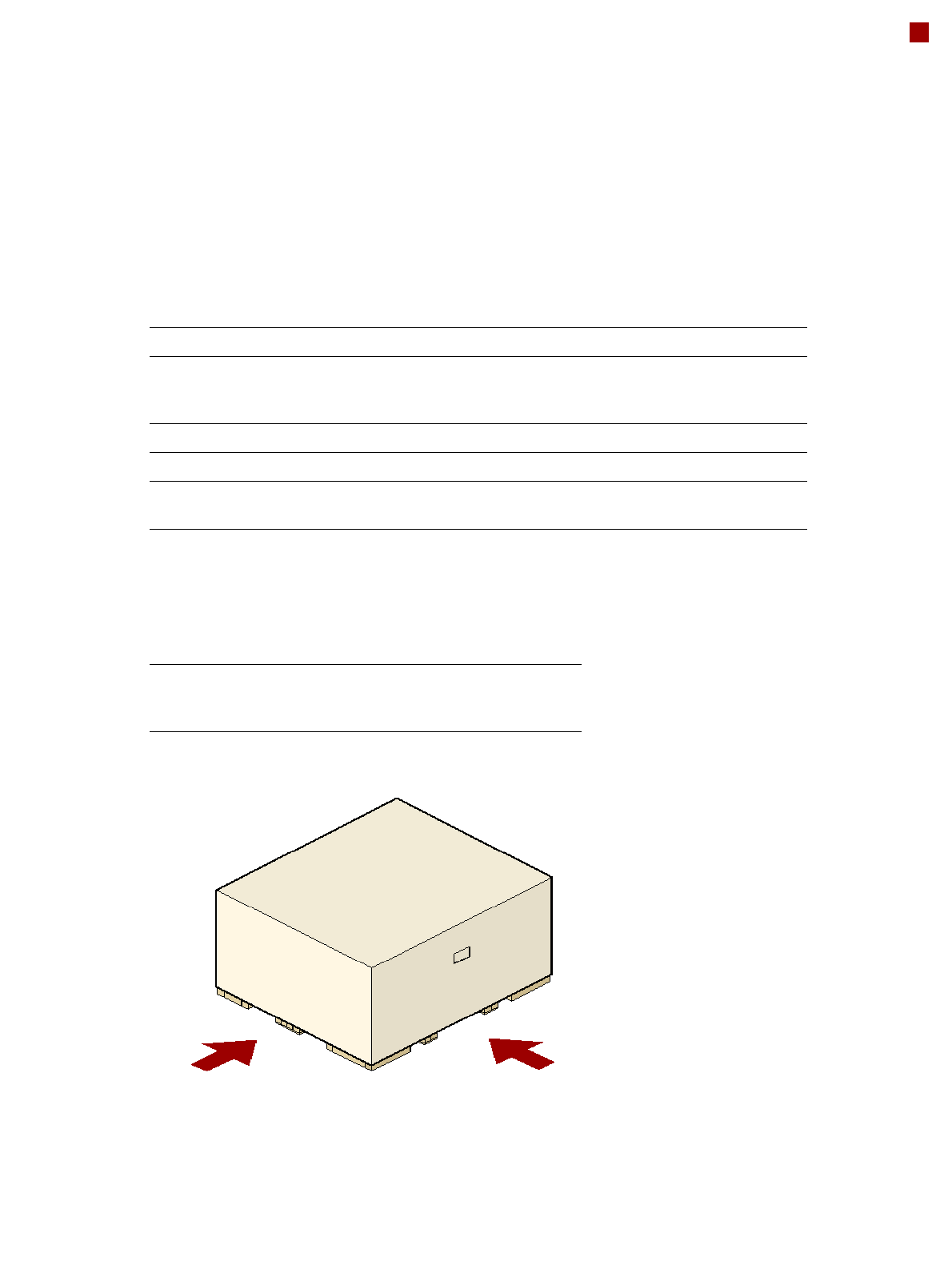

Engagement point
for the fork-lift
Engagement point
for the fork-lift
48
Standard List
The following functions are included with the SIPLACE D1 as standard at no additional cost:
SIPLACE D1 standard features
Vacuum sensor X
Force measurement X
Force sensor X
Fiducial & ink spot recognition X
Nozzle changer for the Pick&Place head X
Set of Pick&Place head nozzles X
Set of standard nozzles per head X
Service box X
Single conveyor, stationary side right X
Single conveyor, stationary side left X
Wide board configuration X
Buffer function X
PCB stopper laser light barrier X
Automatic electrical width adjustment X
Operation on both sides X
LCD monitors X
Touch-screen monitor X
Indicator lamp X
Tape cutter with reject bin X
Tape separating plates X
Magnetic pin support X
49
List of Options
SIPLACE D1 list of options
Transport height (900, 930, 950) X
Flexible dual conveyor, fixed side right X
Flexible dual conveyor, fixed side left X
SMEMA-Siemens adapter box X
PCB alignment, single conveyor X
PCB alignment, flexible dual conveyor X
Long board option for single conveyor X
Long board option for flexible dual conveyor X
1D PCB barcode scanner X Restrictions for a PCB longer than 430 mm
2D PCB barcode scanner X Restrictions for a PCB longer than 430 mm
Head reconfiguration kits X
Head adapter kits for single head machines X
SIPLACE 12-nozzle Collect&Place head X
High-resolution camera, type 29 X
Component sensor C&P12 X
01005 package X
0201 package X
SIPLACE 6-nozzle Collect & Place head X
Pick&Place head X
Stationary camera P & P, type 25, 16 x 16, digital X For the Pick&Place head only
Stationary camera P & P, type 33, 55 x 45, digital X For the Pick&Place head only
Coplanarity module X For the Pick& Place head only
Nozzle changer (according to the head) X
SIPLACE component changeover table X
Dip module X
External power supply for the component
changeover table
X
Compressed air distributor for bulk case feeder modules X
Tape reel holder, 3 x 8 mm feeder module, V2 X
Tape reel holder adapter plate X
Feeder module cover flap X
Feeder module fixing X
Splice detection X
Waffle-pack tray holder X
Setup Center X
110/208 V conversion kit X
Vacuum pump X Not possible on the Pick&Place head
SIPLACE waffle-pack changer (WPC) X At location 1 only
Productivity lift X Max. PCB width: single track 460 mm
double track 216 mm
Max. CO height: 17 mm on the underfloor
section
