Tape feeder module 32mm X FS07_074153 - 第9页
Tape feeder module 32mm X FS07 Page 9 / 13 16.09.2021

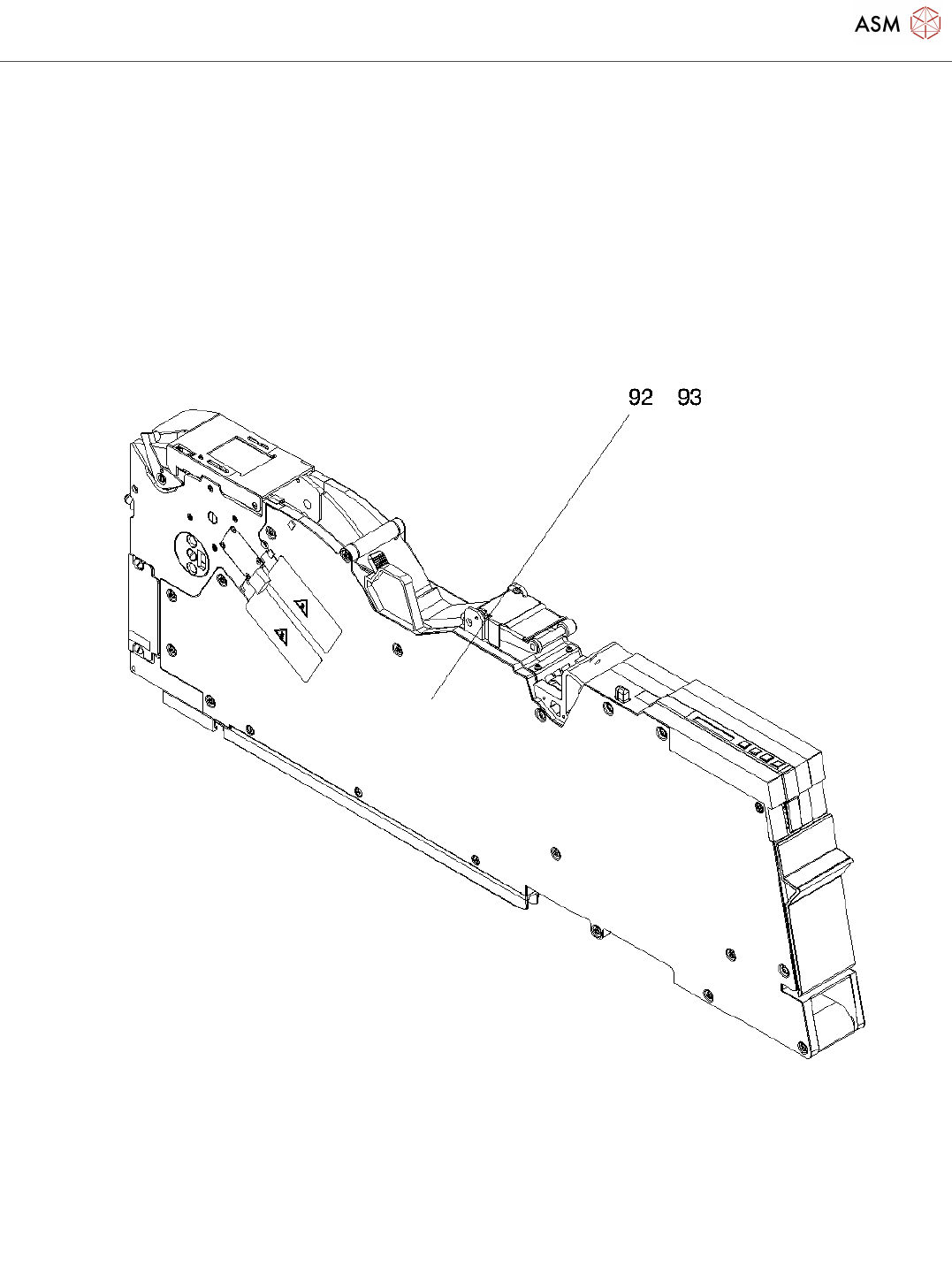

Tape feeder module 32mm X FS07
Page 8 / 13 16.09.2021
Tape feeder module 32mm X FS07
Page 9 / 13 16.09.2021
Tape feeder module 32mm X FS07
Page 10 / 13 16.09.2021
Pos. Item no. Description Part marking
1 00141274S07 TAPE FEEDER MODULE 32MM X Spare Part
3 03020616-07 TAPE FEEDER MODUL 32MM X
4 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART
03032819S01 CABLE /IRDA - EDIF SECONDARY SPARE PART
03006814-01 CABLE SENSOR FOIL ROCKER SPARE PART
03006815-01 CABLE SENSOR REMOVAL HANDLE SPARE PART
8 00328542-01 SN 213307-H-M2,5 X 6-A2 STANDARD PARTS
9 03042444-02 FOIL CASE COMPLETE /X32
10 03009198S01 HANDLE CPL. / X-SERIES Spare Part
11 03002629-01 CONTROL PANEL COMPLETE /X-
SERIE
12 03002644S01 WINDOW /CONTROL PANEL SPARE PART
13 03021637S01 CONTROL PANEL KEY COVER CPL.
/X-SERIES
SPARE PART
14 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
15 03033798-01 REMFORM-SCREW RF-SN75-2,5 X
10-9.8
STANDARD PARTS
16 03042406S01 AXIS FLAP /FOIL CASE X32 SPARE PART
17 03085752S01 FLAP CPL. /FOIL DISPOSAL X32 SPARE PART
18 03085568-01 FLAP FOIL DISPOSAL X32
19 00349527-01 ROUND MAGNET 3X4 NEODYMIUM SPARE PART
20 00341370S01 BLADE, PARTITION SPARE PART
21 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
22 03042450S01 BEARING SHAFT COMPENSATOR
/X32
SPARE PART
23 03085757S02 COMPENSATOR CPL. /X32 SPARE PART
24 03085755S01 STRIPPING SHEET METAL
COMPENSATOR X32
SPARE PART
25 03042524-01 ISO 4762 - M 2 X 5-A2-70 STANDARD PARTS
26 03023216-01 ISO 7046-2-M2 X 4-A2-70-H
27 03042450S01 BEARING SHAFT COMPENSATOR
/X32
SPARE PART
28 03117051S01 STUFFING WHEEL , GEARED CPL,
ROCKER /X32
SPARE PART
29 03048855-01 PRESSURE SPRING
0.75X6.25X31X8.5
SPARE PART
