Docking Cart (2/6)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
30 FC39-000945B FRAME-SIDE FRAME DCN 2
AM03-001738E CABLE ASSY-D-CART INNER IF CABLE ASSY 1
AM03-006535B CABLE ASSY-ND-CART DSUB EXT CABLE ASSY 1 AM03-006535A
AM03-006455B CABLE ASSY-ND_CART RY1 EXT CABLE ASSY 1
AM03-003463B CABLE ASSY-FEEDER DC RELAY CABLE ASSY 1
AM03-001740B CABLE ASSY-RELAY PWR CABLE ASSY 1
AM03-001745C CABLE ASSY-D-CART PWR_CAN CABLE ASSY 1
AM03-001748D CABLE ASSY-D-CART DEVICENET CABLE ASSY 1
J37041002A RELAY_HOLD_DOWN_CLIPS PYC-A1 3
Page
+$1:+$
27
SM482
PLUS
Page
+$1:+$
28
SM482
PLUS

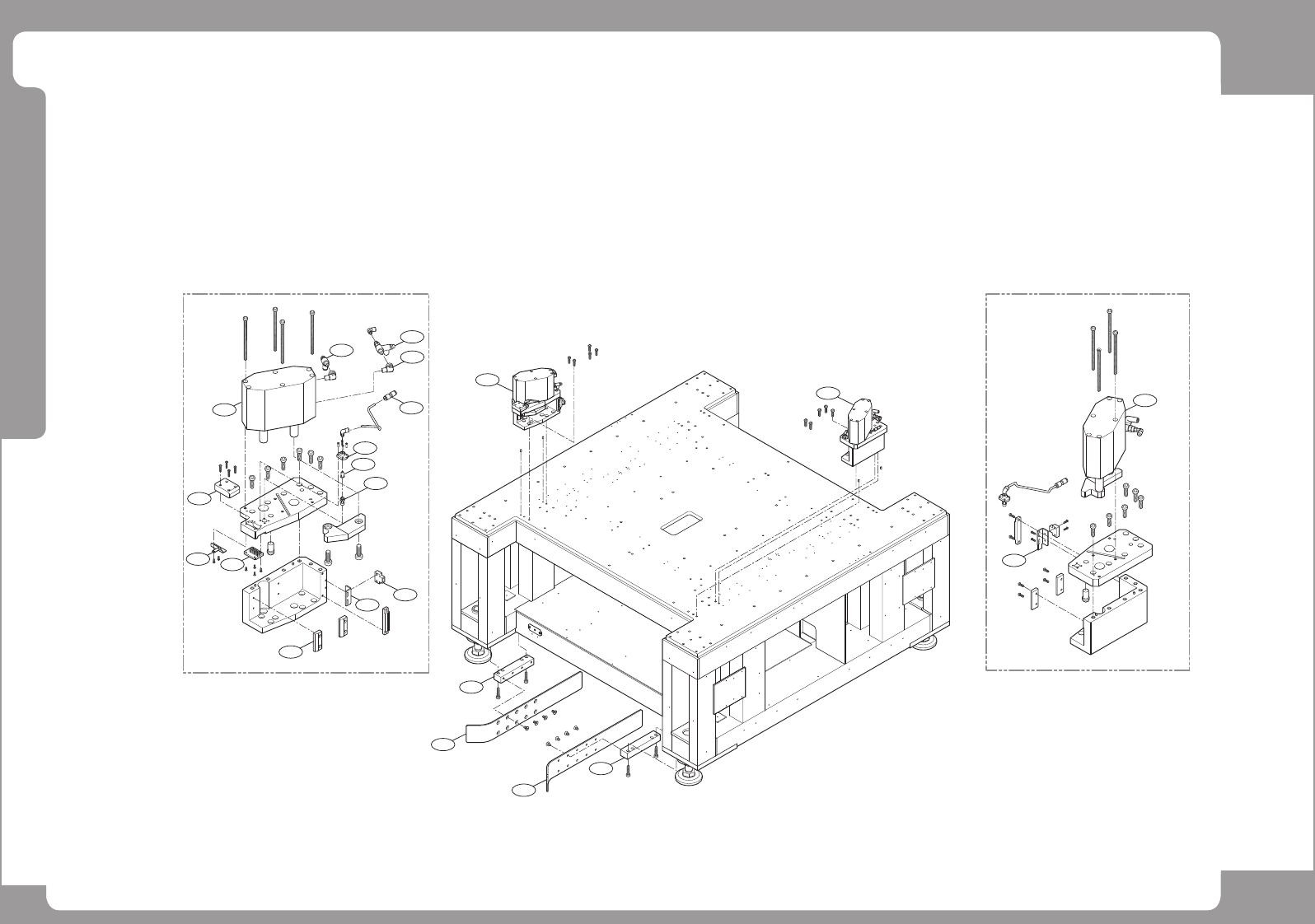

Docking Cart (3/6)
5
4
2
3
17
11
8
6
1
13
14
15
16
16
18
12
9
19
17
15
7
10
