Page +$1:+$ 42 SM482 PLUS Cover Ass’y (1/3) 3 12 5 A D 4 6 4 19 6 C 6 1 12 10 8 7 11 11 9 18 19 6 B C 21 B D 18 17 A 1 16 A 21 15 13 14 2 20 25 22 A 26 29 27 30 23 28 24
Page
+$1:+$
41
Stage CAM Ass'y
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Applicable Equipment Reference
1 J70530693C DUMP BOX BKT 2 J70530693C 1
2 FC29-900611 HEX SUPPORT 3
3 AM03-015218B ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1 AM03-007707B / AM03-015218A
AM03-015217B ASSY,OPTICS-SM482P_STAGE_MEGA_45_ASSY 1 AM03-007727B / AM03-015217A OPTION
AM03-015220C ASSY,STAGE MODULE-SM482_NON_MEGA_35_ASSY 1 AM03-015220A OPTION
AM03-015219B ASSY,STAGE MODULE-SM482_NON_MEGA_45_ASSY 1 AM03-015219A OPTION
4 FC05-000502A BASE-CAMERA_SUPPORT_SM482;GCD450-10 1
5 FC15-003056A COVER-COVER_COMP;0.8 1
6 J70660008D T LINK1 SHAFT1 1
7 FC15-003113A COVER-PROFILE 1
8 FC29-900562 HEX_SUPPORT-BN_M3X45 M3X45(BOLT-NUT) 4
9 AM03-015348A ASSY,BOARD-STAGE_INNER_ILL 1
10 PT02-000057A DIFFUSER,OPTIC-DIFFUSER 1
11 EP12-000075A GLASS,OPTICS-GLASS 1
12 FC15-003202A COVER-GUIDE_1 1
13 FC15-001491A COVER-LIGHT COVER 1
14 AM03-026488B ASSY,BOARD-STAGE OUTER LIGHT 1
15 AM03-026489B ASSY,BOARD-STAGE SIDE LIGHT BOARD 1
16 FC15-003114A COVER-LIGHT_COVER 1
Page
+$1:+$
42
SM482
PLUS

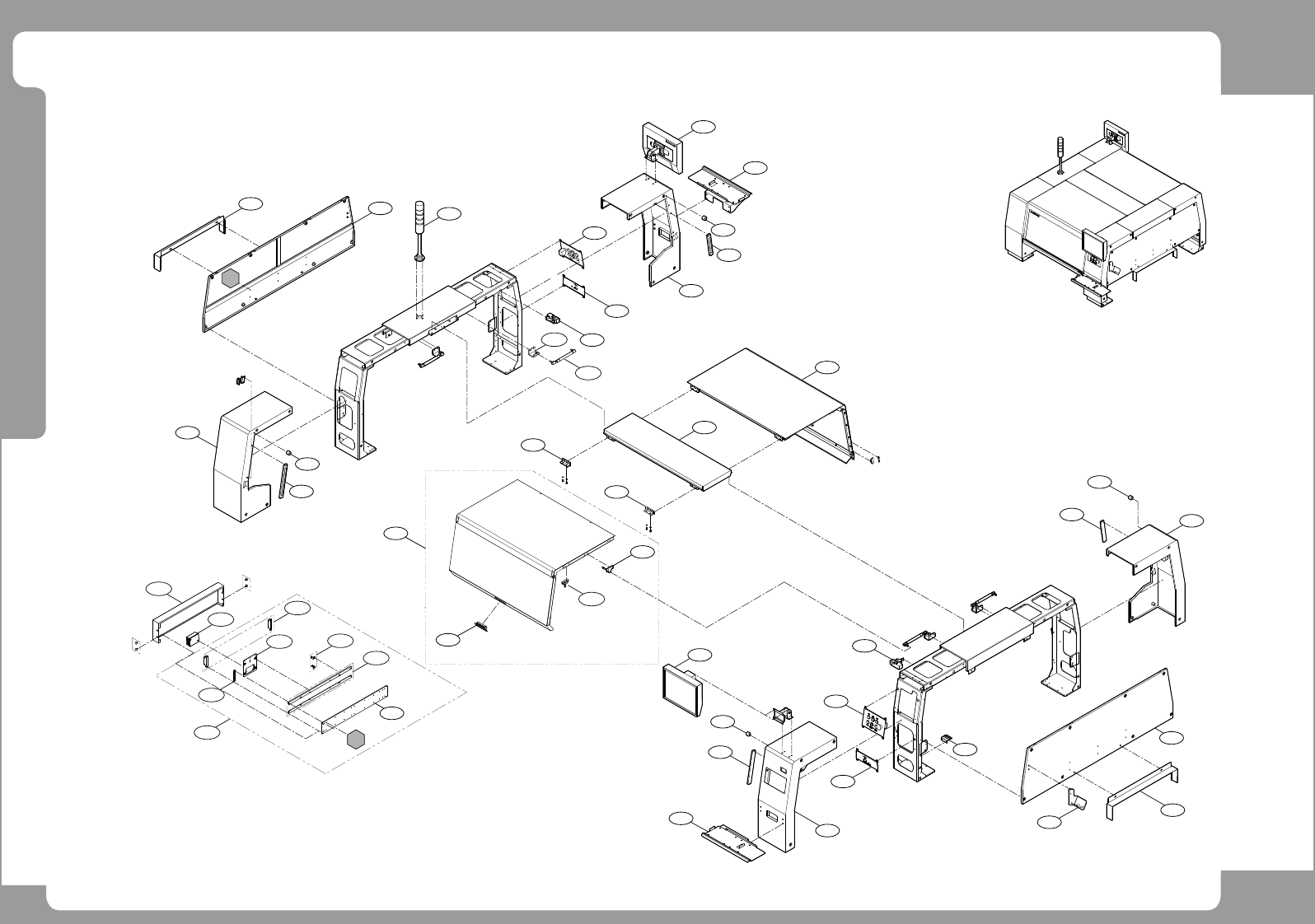

Cover Ass’y (1/3)
3
12
5
A
D
4
6
4
19
6
C
6
1
12
10
8
7
11
11
9
18
19
6
B
C
21
B
D
18
17
A
1
16
A
21
15
13
14
2
20
25
22
A
26
29
27
30
23
28
24
Page
+$1:+$
43
Cover Ass’y (1/3)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Applicable Equipment Reference
1 FC15-001006A COVER-CONVEYOR_COVER 2
FC15-001786A COVER-CONVEYOR_COVER_S_TRAY 2 LTS Tray OPTION
2 FC38-001011 GAS SPRING-YQ07-360N 4 FC38-000079/ FC38-000220
3 J70700352B CONNECTOR BRACKET 1
4 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY 2
5 EP13-900134 TOWER_LAMP 1
6 FC29-004382A DOOR CUSHION 4 J73520001B
7 FC15-000946B COVER-UPPER FL 1 FC15-000946A
8 FC15-006326A COVER-UPPER RL 1 FC15-005211A #44~
FC15-000947C COVER-UPPER RL 1 FC15-000947A / FC15-000947B ~#43
9 FC09-000693B BRACKET-BARCODE_HANGER 1
10 FC15-000955A COVER-TOP_CENTER 1
11 FC29-004637B HINGES-HINGE_SM 2
12 FC15-004982B COVER-UPPER SIDE SM 2 FC15-000953A / FC15-004982A
13 FC29-000007 CAP-PULL 1
14 EP20-900156 DOOR KEY 2
15 FC09-000705A BRACKET-GAS_SPRING_BRACKET2 2
16 FC15-000945D COVER-UPPER_FR 1
17 FC15-000945B UPPER_FR_RR 1
18 FC09-004833A BRACKET-LOWER_OP_PANEL 2
19 J90831759A REAR_AREA_SENSOR_CABLE_ASSY 2 OPTION
20 J70521075D GAS_SPRING_BRACKET1 4
21 AM03-015041A ASSY,COVER-DOOR_NEW 2 AM03-007149A
PT03-002334A STICKER-MODEL_NAME;STICKER 2
22 J7070322A SCANNER COVER[J7070322A] 1
23 J9072126A INDUSTRIAL SCANNER[MS-820] 1 OPTION
24 J9099218A SCANNER BASE ASSY[J9099218A] 1
25 J7165288B SCANNER BASE[J7165288B] 1
26 J7052921A SCANNER COVER BKT[J7052921A] 2
27 J7052915B SCAN BKT[J7052915B] 1
28 J7065934A BRACKET CABLE[J7065934A] 1
