SM482_PLUS_TRM(Ver2.4_CS20.07) - 第54页
Page +$1:+$ 54 SM482 PLUS Base Frame Ass’y 1 3 19 16 17 4 5 6 2 9 10 11 16 8 7 13 14 12 17 15 15 14 15 17
Page
+$1:+$
53
Control Rack Ass’y
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP06-901011 POWER_SUPPLY 4 400W
EP06-901039 SMPS 2 800W
2 EP06-000384 SUPPLY,POWER,AD-DC 1
3 CD05-001002 MOTHERBOARD 1 CD05-000030 / CD05-000073
CD03-000060 HARD DRIVE 1
4 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A (IT FEEDER MASTER BOARD)
AM03-000138 (CPCI ADAPTOR BOARD)
AM03-011927C (DEVICENET MASTER
BOARD)
5 EP06-000338 PROCESSOR BOARD 1 MEGA
EP06-000400 PROCESSOR BOARD 1 NON MEGA
6 EP10-001013A 5SLOT BACKPLANE BOARD 1 EP10-001534
7 AM03-014333A CABLE ASSY-CPU-BOX FAN 1
8 AM06-000359C ASSY,PCB SMD-SM400_VISION_IF BD 1 AM06-000359A
9 FC09-004608A BRACKET 2
10 FC30-004150A PLATE-RACK_BLANK_PANEL_4TYPE 1
11 AM03-014633A ASSY,COVER-CPU_BOX_MAIN_FRAME 1
12 FC11-000003 CARRIER-D160 16
13 FC09-004580A BRACKET-RACK_CABLE_BKT;1.2 1
14 FC09-004579A BRACKET-VISION_BD_BKT;SPCC,1.6 1
15 AM03-014089A ASSY,ELECTRIC-MAIN_CPU BOX 6U*8SLOT_N 1
16 FC28-000805A PANEL,OPERATION-RACK_BLANK_PANEL 4
Page
+$1:+$
54
SM482
PLUS
Base Frame Ass’y
1
3
19
16
17
4
5
6
2
9
10
11
16
8
7
13
14
12
17
15
15
14
15
17
Page
+$1:+$
55

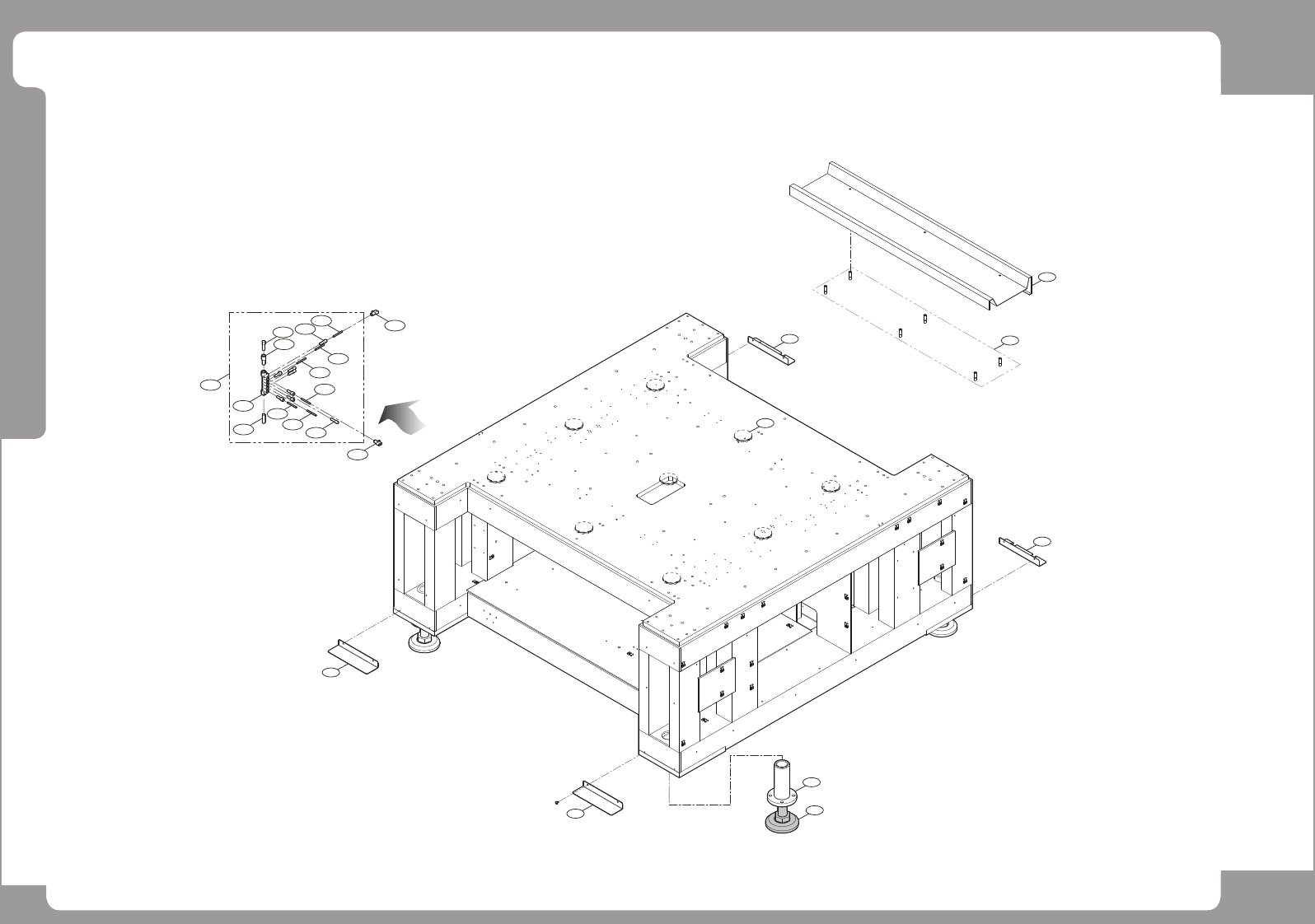

Base Frame Ass’y
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000983A COVER BOTTOM FR 1
2 FC15-000984A COVER BOTTOM FL 1
3 FC15-000985A COVER BOTTOM RR 1
4 FC15-000986A COVER-BOTTOM RL 1
5 J7051010D HOUSING-FOOT 4
6 FC28-000176 FOOT 4 AM03-000098
7 AM03-007220A ASSY,AIR-MAIN MANIFOLD 1
8 HP09-000007 MANIFOLD 1
9 FC14-900641 PLUG 1
10 HP06-000226 FITTING;STRAIGHT 5
11 HP06-900282 STRAIGHT FITTING 4
12 FC14-900644 PLUG 5
13 HP13-900085 AIR TUBE (POLYURETHANE) 3
14 HP13-900083 AIR TUBE (POLYURETHANE) 1.5
15 HP13-900082 AIR TUBE (POLYURETHANE) 3.8
16 HP06-900199 UNION Y FITTING 2
