Page +$1:+$ 57 X-Y Frame Ass'y(1/4) SM482 PLUS NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J70541 124A CABLE_SP ACER 1 2 J7054260 A CABLE FIXER 1 3 J7354023A CABLE CUSHION X 4 4 J7054255…
Page
+$1:+$
56
SM482
PLUS

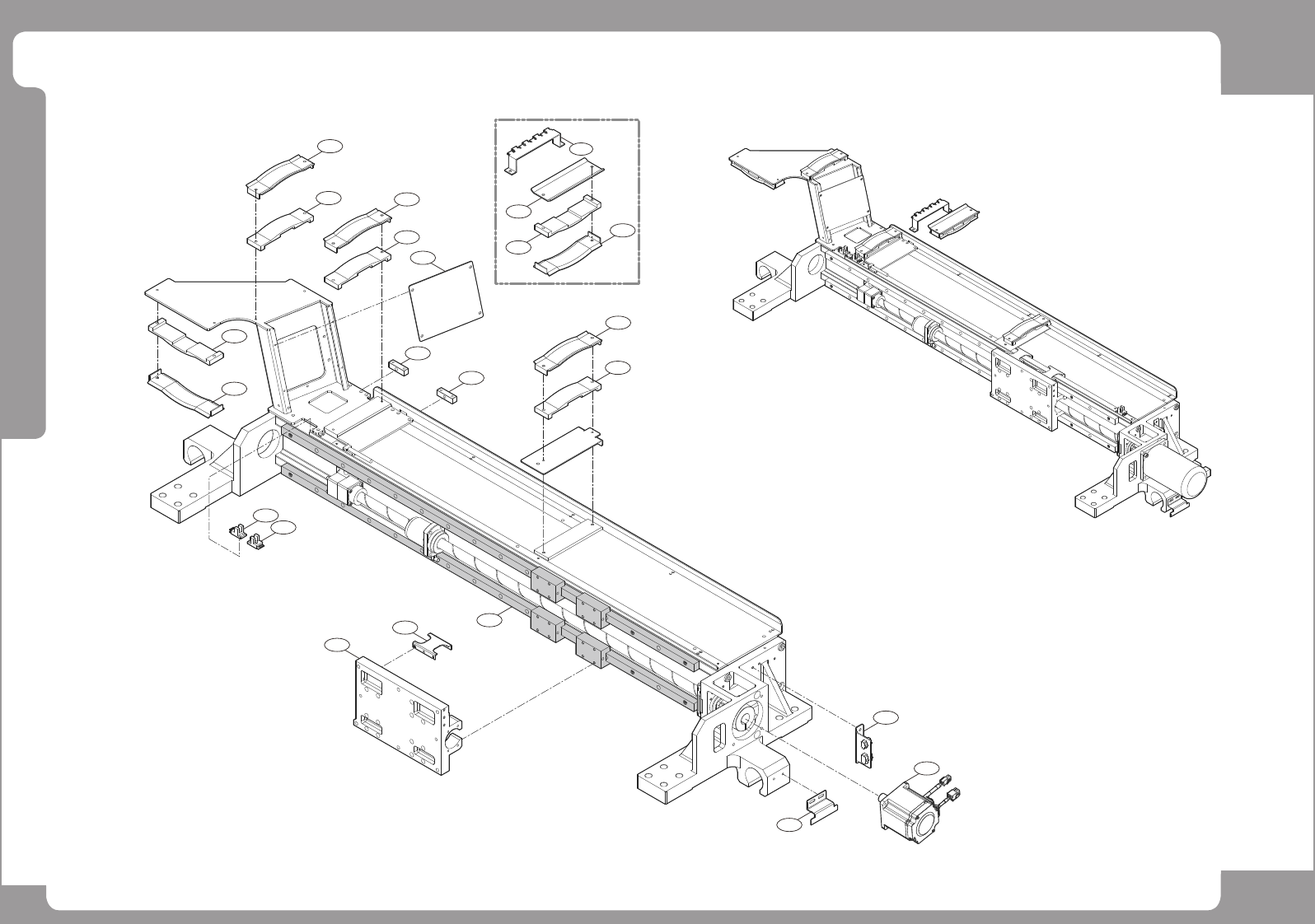

X-Y Frame Ass'y(1/4)
7
10
11
13
14
4
8
8
3
4
3
4
3
4
9
9
12
15
2
3
5
6
1
Page
+$1:+$
57
X-Y Frame Ass'y(1/4)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70541124A CABLE_SPACER 1
2 J7054260A CABLE FIXER 1
3 J7354023A CABLE CUSHION X 4
4 J7054255A CUSHION BRACKET X 4
5 J7354024A CABLE CUSHION Y 1
6 J7054256A CUSHION BRACKET Y 1
7 J70541116A COVER_Y_CABLE_DUCT_BRK 1
8 FC30-000540A PLATE-K_DUCT_SPACER 2
9 AM03-015575A LIMIT SENSOR 2
EP19-900114
(Detachable Type)
Integral Type
10 FC05-000293B BASE-HEAD 1 FC05-000293A
11 J70541038A SENSOR_DOG_X 1
12 J70541129B SENSOR DOG-Y 1
13 J70541126A CONNECTOR_BKT 1
14 EP08-001066 MOTOR,SERVO 1 EP08-900157
15 MC13-900010 LM GUIDE 2
Page
+$1:+$
58
SM482
PLUS

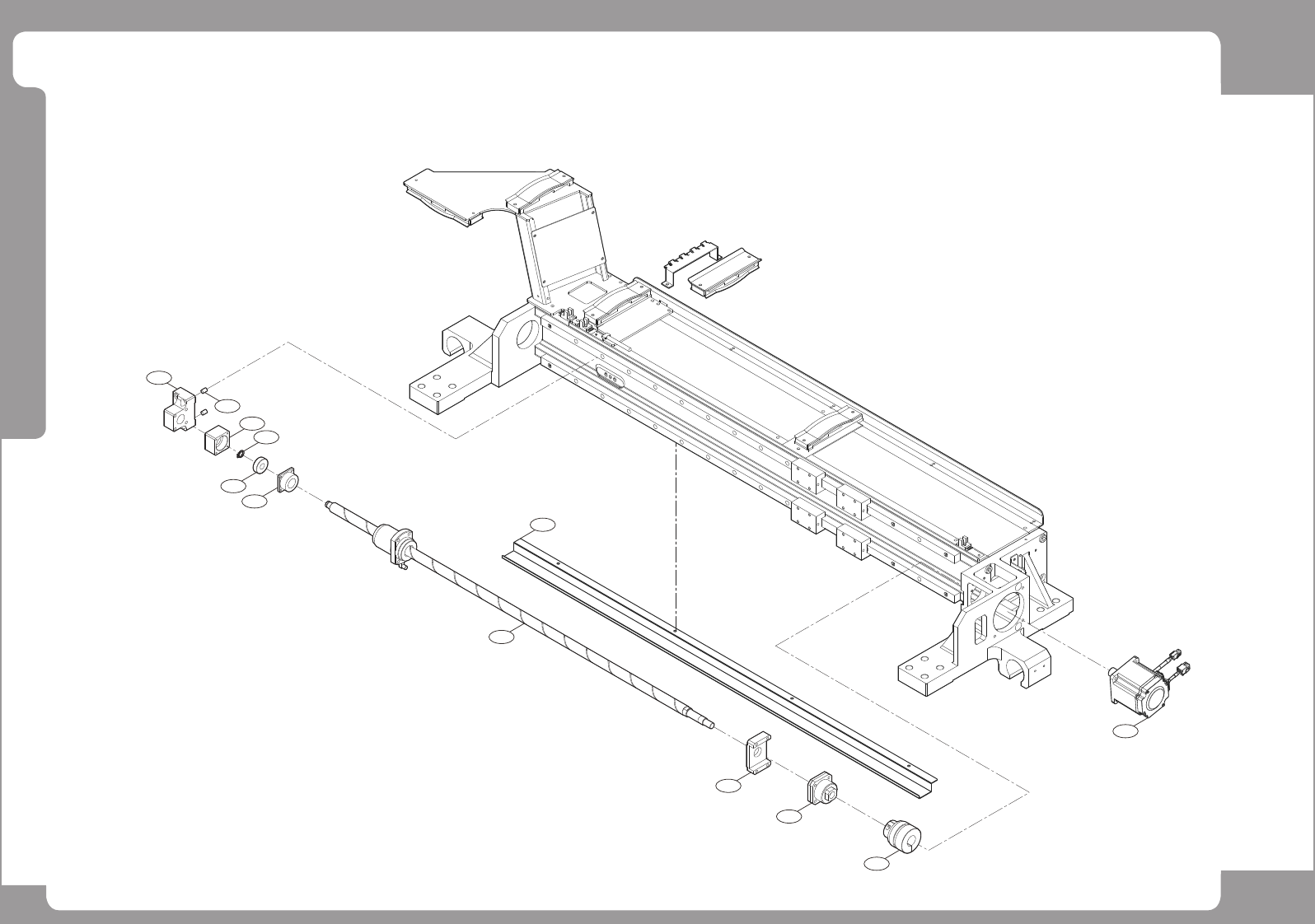

X-Y Frame Ass'y(2/4)
2
7
11
5
9
10
6
1
4
8
3
12
